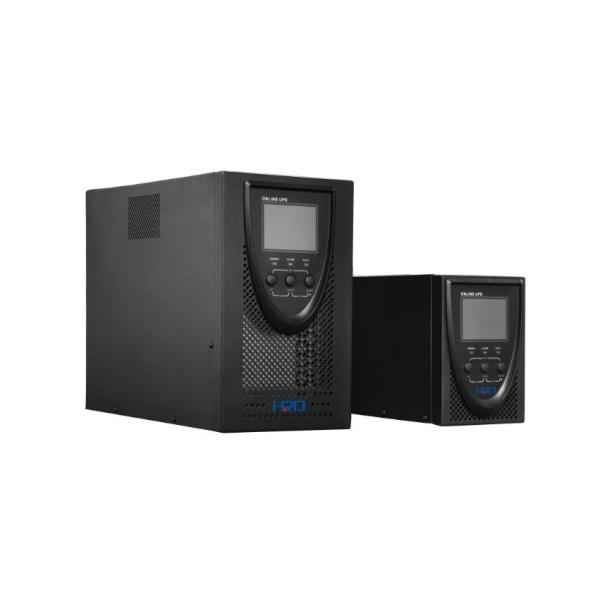

    E-Tech Series Online HF UPS 1-6kva

    Ask Lasest Price
    Brand Name : HRD/OEM
    Model Number : MP4000-6000
    Certification : CE,ISO9001
    Delivery Time : 15-20DAYS
    Payment Terms : TT OR LC
    Supply Ability : 300pcs/day
    Price : 110-550USD/PCS
    • Product Details
    • Company Profile

    E-Tech Series Online HF UPS 1-6kva

    Introduction: E-Tech series Online HF UPS 1-6K has adopted highest level DSP controlled UPS. With advanced DSP technology, it’s not only high stable but also with excellent performance.

    Perfect Application:

    Network, data centre, servers and workstations, control system, communication system and office etc.


    Features:

    1. Output power factor 0.9,offering more stronger load capability;
    2. Online double conversion HF UPS technology with DSP control

    excellent performance and comprehensive protections for load and UPS ;

    1. Self-diagnosis when UPS start up
    2. Wide input range, compatible with almost any kinds of generator
    3. Battery configuration flexible,1KVA-24/36V,2Kva-48/72/96V,3Kva-48/72/96V etc.
    4. Cold start(DC power on)
    5. ECO function, Economic function(Optional)

    8. EPO function ,emergency power off

    9. Lightening and Surge protection 1050J

    10.Fan online detect and fan running speed varies according to load automatically

    11. Standard USB interface, (Dry contact, SNMP card optional)

    12.Manual bypass(optional)


    Model

    ET01

    ET02

    ET03

    ET06


    Capacity

    Kva/Kw

    1Kva/0.9Kw

    2Kva/1.8Kw

    3Kva/2.7Kw

    6Kva/4.8Kw



    Input


    Voltage

    Low transfer

    L-N:176 VAC ± 3% @ 100% load;130 VAC ± 3% @ 50% load


    Low back

    L-N:188 VAC ± 3% @ 100% load,142 VAC ± 3% @ 50% load


    High transfer

    L-N:286 VAC ± 3%


    High back

    L-N:270 VAC ± 3%


    Frequency range

    45-55Hz at 50Hz/55-65Hz at 60Hz(auto-detect)


    phase

    1:1phase ,L+N+G


    Current THDI

    <6%(100%nonlinear load)


    Power Factor

    ≥0.99


    Generate Input

    Support


    breaker

    7A

    16A

    25A

    35A



    Output


    Voltage

    208/220/230/240VAC or 110/120/127(1-3Kva)


    Power Factor

    0.9 (0.8 optional)

    0.8


    Voltage regulation

    ± 2%


    Frequency(Line Model)

    46-54Hz at 50Hz/56-64Hz at 60Hz


    Frequency(Battery Mode)

    50/60Hz ± 0.02Hz


    Current Crest Ratio

    3:1


    Harmonic Distortion

    ≤3% THD(Liner Load)


    ≤5% THD(Non-Liner Load)


    Output waveform

    Pure Sine wave


    Outlet

    Sockets(Optional)

    Terminals


    Overload Capacity

    105%<load<125% for 1 mins ,125%<load<150% for30sec



    Efficiency

    AC Mode

    Full Load≥89%


    Battery Mode

    Full Load≥86%


    ECO Mode

    Full Load≥95%



    Battery

    Number of Battery Per Set

    2/3

    4/6/8

    4/6/8

    8


    Battery Type

    Sealed, lead-acid, maintenance-free

    standard model: 12V/7AH OR9AH inbuilt

    long run model: battery external, capacity optional



    Back Time

    Standard unit:

    5-12mins;

    Long-run unit:

    depends on external battery

    Standard unit:

    8-18mins;

    Long-run unit:

    depends on external battery

    Standard unit:

    5-12mins;

    Long-run unit:

    depends on external battery

    Standard unit:

    4-10mins;

    Long-run unit:

    depends on external battery


    Recharge Time(to 90%)

    5 Hours

    5 Hours

    5 Hours

    5Hours


    Charge Current(standard unit)

    1.0A

    1.0A

    1.0A

    1.0A


    Charge Current(long run unit)

    7.0A

    7.0A

    7.0A

    5.0A


    Rated Battery Voltage

    24/36vdc

    48/72/96vdc

    48/72/96vdc

    96vdc


    Protect

    Over-Voltage/Over-current/Low-voltage


    Battery Socket

    Anderson like PowerPole Modular Connectors


    Transfer Time

    Mains←→Battery

    0ms


    Mains←→Bypass

    0ms


    Optional Features

    Economic Mode(ECO Mode)

    Support


    Indicator

    LCD Version (with LED)

    Load/Battery/Input/Output/Operating Mode Information etc.



    Audible Alarm

    Battery Mode

    Sounding every 4 seconds




    Low Frequency

    Sounding every second


    Overload

    Sounding twice every second


    Fault

    Continuously Sounding



    Physical

    Unit Dimension

    (D*W *H)mm

    420*144*215

    475*191*340

    475*191*340

    475*213*340 (L)


    510*213*427 (S)


    Packing Dimension

    (D*W *H)mm

    524*258*334

    557*286*435

    557*286*435

    603*332*482(L)


    650*363*572(S)


    Standard Unit

    Net /GrossWeight(kg)

    12/13

    30/32

    30/32

    40/42


    Long-run unit

    Net /GrossWeight(kg)

    7/8

    15/17

    15/17

    18/20


    Operating Environment

    0-40°C


    Relative Humidity

    0-90%(non-condensing)


    Altitude

    <1500m.when>1500m,derating


    Noise Level

    <55db at 1 Meter



    Interface

    Smart RS-232;USB,Dry contact board,SNMP(independent to RS232)
