340mm Light Pole Welding Machine Steel Pipe Welding Machine

    Buy cheap 340mm Light Pole Welding Machine Steel Pipe Welding Machine from wholesalers

    Buy cheap 340mm Light Pole Welding Machine Steel Pipe Welding Machine from wholesalers
    • Buy cheap 340mm Light Pole Welding Machine Steel Pipe Welding Machine from wholesalers
    • Buy cheap 340mm Light Pole Welding Machine Steel Pipe Welding Machine from wholesalers

    340mm Light Pole Welding Machine Steel Pipe Welding Machine

    Ask Lasest Price
    Brand Name : WXJQ
    Model Number : 340/1600
    Certification : ISO9001
    Price : negotiation
    Payment Terms : T/T or L/C
    Supply Ability : 2 sets per month
    Delivery Time : According to the requirement of order
    • Product Details
    • Company Profile

    340mm Light Pole Welding Machine Steel Pipe Welding Machine

    340mm Light Pole Welding Machine Steel Pipe Welding Machine


    Advantage:


    This machine composed by main machine head , tractive dolly and feeding shelf.

    High reliability, automatic adjustable welding wire machine is through the digital time,

    pressure, power, temperature, arc and preciseness of the CCD video capture, ensure

    that each solder joint and the welding arc to achieve the ideal effect.

    This machine adopt multiple wire submerged arc welding, solder was reclaimed automatic.

    Welding line was symmetrical and slinky. It has strong filter,forming one time,and be with

    high welding efficiency. The speed of welding achieve 2 to 3 meters per minutes,is about 3

    times of the gas welding .

    The cost of the welding is lower than gas weldong. It is with speedy welding ,high efficiency,

    and lowest price in China light poles industry now.


    Descroption:


    This machine adopts submerged arc welding without luminous welding speed is quick.

    It is easy and quick for the polygon pole with manual adjustment; Welding power is from

    shanghai welding factory; the welding is continuous and beautiful and also with strong

    penetration; From in one time; The welding efficiency is high and the speed is 1 to

    3 meters per minute; It is three times to the gas shielded welding; The welding cost is

    less than gas shielded arc welding; It is the fastest and lowest price equipment;

    Feature:
    1 semi-automatic submerged arc welding production lines widely used in all kinds of

    steel pipe; round-and-cone; polygon-high poles such as the welding seam sheet;

    2; Using submerged arc welding; surface smooth; non-polluting; non-luminous;

    open-length welding; welding speed 2-3m/min; With high-speed welding; less investment

    and savings wire; a particularly low price; the advantages of simple operation;


    SNItemValueUnit
    1Welding length16Meter
    2Welding thickness3~12mm
    3Welding Diameter60~500mm
    4Welding current630A
    5Welding Speed1~2m/min

    6

    Measure
    Length23000mm
    Wigth2900mm
    Hight4000mm
    7G.W.8000kg

    Information:


    Light pole seam close-welding machine:LPW-340/16000
    This machine is used to welding light pole column after bending. It will close the pole seam

    and weld the seam automatically.This is one unit machine in whole light pole production line.
    The machine has hydraulic station,welding system,pulling trolley and machine body etc.
    Through the hydraulic station,the power will push cyliner.the extension of cyliner will close

    the 8 sets of clamping wheels by chain to finish closing seam.Same time,the pull trolley will

    pull the light pole to move forward and welding system to weld seam automatically.
    For welding system,there are two welding functions, submerge welding+CO2 protection welding.

    The user can choose anyone of them and easy to change.


    Paramter:


    Workable Diameter60-500mm,
    Workable length12000 mm
    DOLLY LENGTH1500 MM
    Suitable light pole ThicknessLight pole diameter: 60~500mm2.8~4mm
    Light pole diameter: 250~500mm2.8~6mm
    Light pole diameter: 400~500mm2.8~8mm
    Power of Motor for Pump4+2.5 KW double pump

    Power of Motor for pulling dolly


    4 KW, AC speed changeable type.


    Welding Machine

    630A, (Submerged Arc Welding and Gas-shielded welding(CO2) Welding

    Option: Lincoln welding machine

    Welding wire diameter


    1.6~2mm welding wire, according the pole thickness to do selection
    Working Speed1.1~2m/min (Note: different thickness speed will be different)
    Gross weight8000 kg
    Overall sizes (mm)23000x2900x4000 mm

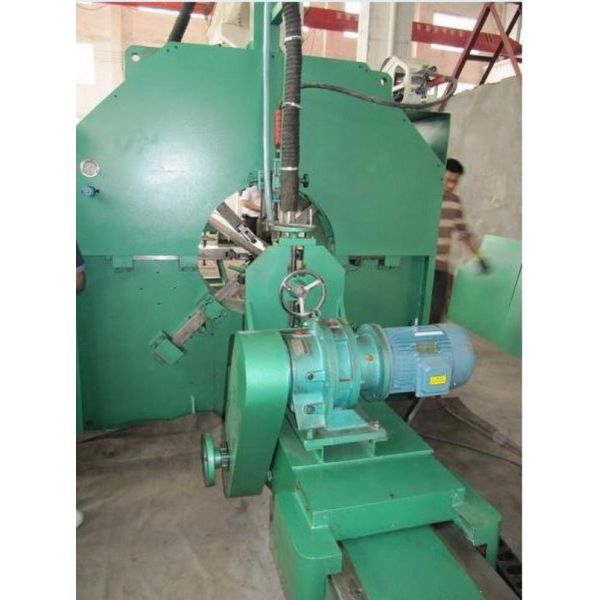

    Machine photo:








    Quality 340mm Light Pole Welding Machine Steel Pipe Welding Machine for sale
