Professional DTH Drilling Tools Eccentric Casing Overburden Drilling System

    Buy cheap Professional DTH Drilling Tools Eccentric Casing Overburden Drilling System from wholesalers

    Buy cheap Professional DTH Drilling Tools Eccentric Casing Overburden Drilling System from wholesalers
    • Buy cheap Professional DTH Drilling Tools Eccentric Casing Overburden Drilling System from wholesalers
    • Buy cheap Professional DTH Drilling Tools Eccentric Casing Overburden Drilling System from wholesalers
    • Buy cheap Professional DTH Drilling Tools Eccentric Casing Overburden Drilling System from wholesalers
    • Buy cheap Professional DTH Drilling Tools Eccentric Casing Overburden Drilling System from wholesalers
    • Buy cheap Professional DTH Drilling Tools Eccentric Casing Overburden Drilling System from wholesalers

    Professional DTH Drilling Tools Eccentric Casing Overburden Drilling System

    Ask Lasest Price
    Brand Name : KSQ
    Price : negociated one
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 100000 Piece/Pieces per Month
    Delivery Time : 10-15 days
    • Product Details
    • Company Profile

    Professional DTH Drilling Tools Eccentric Casing Overburden Drilling System


    Professional DTH Drilling Tools Eccentric Casing Overburden Drilling System


    Eccentric Reamer System Step-by-step


    1. When drilling starts, the reamer swings out and reams the pilot-hole wide enough for the casing tube to slide down behind the drill bit assembly.

    2. When the required depth is reached, rotation is reversed carefully, whereupon the reamer swings in , allowing the drill bit assembly to be pulled up through the casing.

    3. Casing tubes that are to be left in the drill hole should be sealed at the bottom of the hole by means of cement grout or some other sealing agent.

    4. Drilling continues to the desired depth in the bedrock using a conventional drill string.


    Application Range


    This product is made of alloy of high quality and apply for advanced high-frequency welding technology and maturity of heat treatment process, greatly improving the intensity, wear resistance and impact toughness of cutter head, increasingly prolonging the working life, enhancing the drilling efficiency.

    It is recommended to drill in rock formation where contains some ovals and fractures.

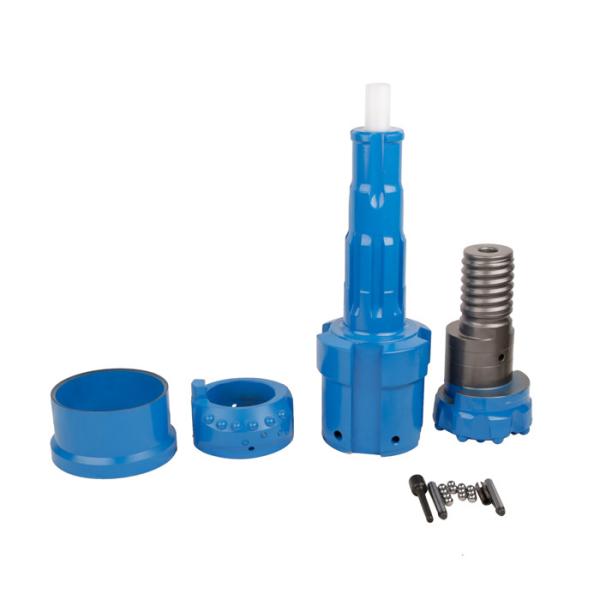

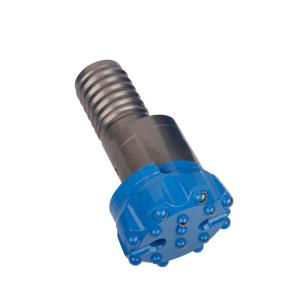

    Casing tubeDrill pipeGuide sleeveDTH hammerCasing shoeGuide device7.Reamer8.Pilot bit
    Maximum OD:115mm Minimum ID:102mmconnection thread:API 2 3/8"REG OD:76mm wrech flats:65mmEffective length: 174mmHD35,COP32, IR3.5,QL30L3=90mm,L4=55mm, D3=101mm,D4=93mm

    L1=35mm,L2=138mm,

    D1=92mm,D4=100mm

    D5=91mm,L5=70mm, reaming diameter=123mm, reamer has4*Φ12buttonsD6=90mm,L6=59mm, gauge button=8*Φ12mm, face button:6*Φ10mm
    Maximum OD:142mm Minimum ID:128mmconnection thread:API 2 3/8"REG OD:76mm wrech flats:65mmEffective length: 174mmHD45,COP44, SD4,DHD340A,QL40,HM4L3=76mm,L4=55mm, D3=127.5mm,D4=117mm

    L1=48mm,L2=136mm

    , D1=115mm,D4=126mm

    D5=114mm,L5=89mm, reaming diameter=152mm, reamer has5*Φ14buttonsD6=114mm,L6=67mm, gauge button=8*Φ14mm, face button:6*Φ13mm
    Maximum OD:171mm Minimum ID:155.6mmconnection thread:API 2 3/8"REG OD:89mm wrech flats:65mmEffective length: 205mmHD55,COP54, SD5,DHD350R,QL50L3=90mm,L4=63mm, D3=155.3mm,D4=143mm

    L1=55mm,L2=160mm,

    D1=141mm,D4=154mm

    D5=138mm,L5=69.5mm, reaming diameter=185mm, reamer has7*Φ14buttonsD6=138mm,L6=66.5mm, gauge button=8*Φ16mm, face button:8*Φ14mm
    Maximum OD:195mm Minimum ID:182.6mmconnection thread:API 3 1/2"REG OD:114mm wrech flats:95mmEffective length: 225mmHD65,COP64, SD6,DHD360, QL60L3=95mm,L4=55mm, D3=181.5mm,D4=166mmL1=61.5mm,L2=181.5mm, D1=165mm,D4=178mmD5=164mm,L5=79.5mm, reaming diameter=211mm, reamer has7*Φ14buttonsD6=165mm,L6=82.5mm, gauge button=8*Φ16mm, face button:8*Φ16mm
    Maximum OD:222mm Minimum ID:205mmconnection thread:API 3 1/2"REG OD:114mm wrech flats:95mmEffective length: 285mmHD65,COP64, SD6,DHD360, QL60L3=110mm,L4=70mm, D3=204.5mm,D4=193mm

    L1=62.5mm,L2=184.5mm

    ,D1=191mm,D4=203mm

    D5=185.5mm,L5=90.2mm, reaming diameter=237mm, reamer has7*Φ16buttonsD6=190mm,L6=82mm, gauge button=9*Φ18mm, face button:9*Φ16mm
    Maximum OD:273mm Minimum ID:260.4mmconnection thread:API 3 1/2"REG OD:114mm wrech flats:95mmEffective length: 343mmHD85,COP84, SD8,DHD380, QL80L3=110mm,L4=65mm, D3=259mm,D4=241mmL1=70mm,L2=190mm, D1=240mm,D4=256mmD5=238mm,L5=100mm, reaming diameter=308mm, reamer has14*Φ16buttonsD6=240mm,L6=89.5mm, gauge button=12*Φ16mm, face button:18*Φ16mm
    Maximum OD:324mm Minimum ID:305mmconnection thread:API 4 1/2"REG OD:114mm wrech flats:95mmEffective length: 305mmSD10,NUMA100L3=125mm,L4=75mm, D3=304mm,D4=281mmL1=97mm,L2=254mm, D1


    About us

    MIROC® Rock Drilling Tools are Rock Drilling Tools Brand by KSQ Tecnologies (Beijing) Co. Ltd.

    KSQ Technologies (Beijing) Co. Ltd. provides exceptional technical know-how in development, production, and application. The company has adopted advanced manufacturing processes to ensure high quality steels and tungsten carbide inserts for its rock drilling accessories. Its personnel understand clients’ drilling needs, and have the service skills to recommend the right drilling tools for the job. Its experienced product developers can also create custom tools. Furthermore, the company’s development team introduces innovative products each year – tools that are rigorously tested in the field and proven
    to perform beyond industry expectations.


    MIROC® Rock Drilling and Ground Support Tools include:

    Integral Rods
    Plug Hole Rods
    Tapered Drilling Tools
    Extension Drilling Tools
    Drifting and Tunneling Tools
    Reaming Tools
    Shank Rods
    Shank Adapters (Striking Bars)
    Down-the-hole (DTH) Bits
    Down-the-hole (DTH) Hammers
