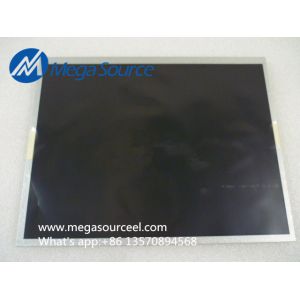

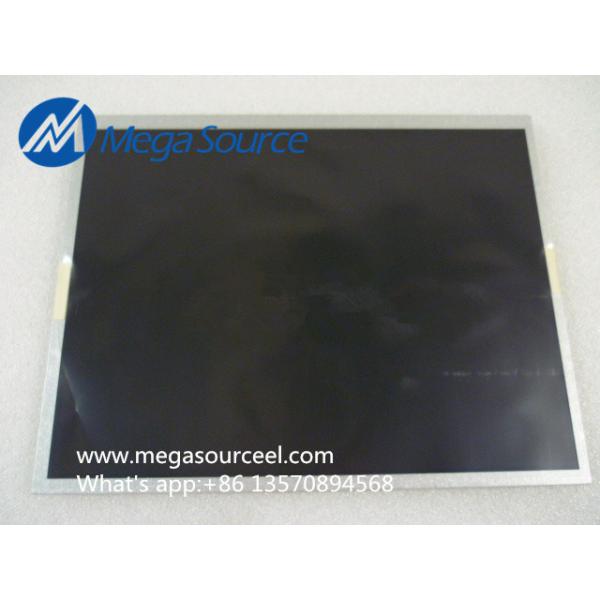

AUO 12.1inch B121EW03 VB LCD PANEL

    Buy cheap AUO 12.1inch B121EW03 VB LCD PANEL from wholesalers

    Buy cheap AUO 12.1inch B121EW03 VB LCD PANEL from wholesalers
    • Buy cheap AUO 12.1inch B121EW03 VB LCD PANEL from wholesalers

    AUO 12.1inch B121EW03 VB LCD PANEL

    Ask Lasest Price
    Brand Name : AUO
    Certification : RoHS Compliant
    Model Number : B121EW03 VB
    Price : Pls Contact sales team
    Delivery Time : stock
    Payment Terms : T/T , Paypal, Western Union Escrow etc.
    Supply Ability : 1000
    • Product Details
    • Company Profile

    AUO 12.1inch B121EW03 VB LCD PANEL

    AUO 12.1inch B121EW03 VB LCD PANEL

    Specification for B121EW03 VB:

    B121EW03 VB Basic Information

    Panel Model

    B121EW03 VB

    Panel Brand

    AUO

    Descrition

    a-Si TFT-LCD ,12.1 inch, 1280×800

    Panel Type

    a-Si TFT-LCD

    Model Alias

    B121EW03 V.B

    Operating Temperature

    0 ~ 50 °C

    Storage Temperature

    -20 ~ 60 °C

    B121EW03 VB Mechanical Features

    Dot Resolution

    1280(RGB)×800 (WXGA)

    Pixel Configuration

    RGB Vertical Stripe

    Pixel Density

    124 PPI

    Aspect Ratio

    16:10 (H:V)

    Form Factor

    Flat Rectangle Display

    Dot Pitch

    0.068×0.204 mm (H×V)

    Pixel Pitch

    0.204×0.204 mm (H×V)

    Weight

    300g (Max.)

    Surface

    Glare (Haze 0%), Hard coating (3H)

    Active Area

    261.12×163.2 mm (H×V)

    Outline Depth

    5.2 (Max.) mm

    Shape Style

    Wedge (PCBA Bent, Depth ≥5.2mm)

    Holes & Brackets

    Side mounting holes

    Landscape or Portrait

    Landscape type

    Touch Panel

    Without

    B121EW03 VB Optical Features

    Display Mode

    TN, Normally White, Transmissive

    Brightness

    200 cd/m² (Typ.)

    Contrast Ratio

    400 : 1 (Typ.) (Transmissive)

    Display Color

    262K (6-bit)

    Color Gamut

    45% NTSC (CIE1931)

    Response Time

    16 (Typ.)(Tr+Td)

    Viewing Angle

    40/40/20/20 (Typ.)(CR≥10) (L/R/U/D)

    Viewing Direction

    6 o'clock

    White color Chromaticity

    Wx:0.313; Wy:0.329

    White Variation

    1.25 (Max.)(5 points)

    Sunlight Readable

    N

    B121EW03 VB Electronics Feature

    Vertical Frequency

    60Hz

    Reverse Scan

    No

    Total Power Consumption

    4.5W (Max.)

    B121EW03 VB Backlight System

    Lamp Position

    Edge light type (Bottom side)

    Lamp Type

    CCFL

    Lamp Amount

    1 pcs

    Lamp Shape

    Straight

    Lamp Life Time

    12K(Min.) (Hours)

    Lamp Voltage

    580±58V

    Lamp Current

    2.0/6.0/7.0mA (Min./Typ./Max.)

    Lamp Operating Frequency

    45/62/70KHz (Min./Typ./Max.)

    Lamp Startup Voltage

    1460/1750V (Max.)(Ta=+25/0℃)

    Lamps Power Consumption

    3.5/3.7W (Typ./Max.)(Vin=5V)

    Interface Type

    Connector

    Lamp Driver Board

    No

    B121EW03 VB Signal Interface

    Signal Category

    LVDS

    Signal Class

    LVDS (1 ch, 6-bit)

    Input Voltage for Panel

    3.3V (Typ.)

    Input Current for Panel

    222/242mA (Typ./Max.)

    Panel Power Consumption

    0.8W (Max.)

    Interface Type

    Connector

    Signal Interface

    STM - MSBK2407P30B, Pitch:1.0 mm, Pin:30 pins
