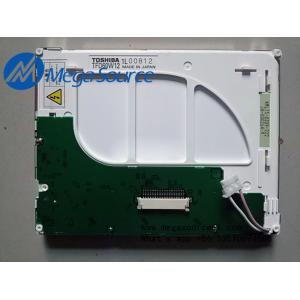

TOSHIBA 6inch TFD60W12 LCD Panel

    Buy cheap TOSHIBA 6inch TFD60W12 LCD Panel from wholesalers

    Buy cheap TOSHIBA 6inch TFD60W12 LCD Panel from wholesalers
    • Buy cheap TOSHIBA 6inch TFD60W12 LCD Panel from wholesalers
    • Buy cheap TOSHIBA 6inch TFD60W12 LCD Panel from wholesalers

    TOSHIBA 6inch TFD60W12 LCD Panel

    Ask Lasest Price
    Brand Name : TOSHIBA
    Certification : RoHS Compliant
    Model Number : TFD60W12
    Price : Pls Contact sales team
    Delivery Time : stock
    Payment Terms : T/T , Paypal, Western Union Escrow etc.
    Supply Ability : 1000
    • Product Details
    • Company Profile

    TOSHIBA 6inch TFD60W12 LCD Panel

    TOSHIBA 6inch TFD60W12 LCD Panel

    Specification for TFD60W12:

    TFD60W12 Basic Information

    Panel Model

    TFD60W12

    Panel Brand

    TOSHIBA

    Descrition

    a-Si TFT-LCD ,6.0 inch, 320×234

    Panel Type

    a-Si TFT-LCD

    Operating Temperature

    -10 ~ 65 °C

    Storage Temperature

    -20 ~ 70 °C

    TFD60W12 Mechanical Features

    Dot Resolution

    320(RGB)×234

    Pixel Configuration

    RGB Vertical Stripe

    Pixel Density

    66 PPI

    Aspect Ratio

    4:3 (H:V)

    Form Factor

    Flat Rectangle Display

    Dot Pitch

    0.127×0.381 mm (H×V)

    Pixel Pitch

    0.381×0.381 mm (H×V)

    Weight

    210g

    Active Area

    121.92×89.154 mm (H×V)

    Outline Dimension

    144×109.4 mm (H×V)

    Outline Depth

    12.9 mm

    Holes & Brackets

    Rear mounting Pole (4 Pcs)

    Landscape or Portrait

    Landscape type

    Touch Panel

    Without

    TFD60W12 Optical Features

    Display Mode

    TN, Normally White, Transmissive

    Brightness

    280 cd/m² (Typ.)

    Contrast Ratio

    80 : 1 (Typ.) (Transmissive)

    Display Color

    Full color ()

    Response Time

    70/40 (Max.)(Tr/Td)

    Viewing Angle

    45/45/45/15 (Typ.)(CR≥10) (L/R/U/D)

    Viewing Direction

    12 o'clock

    Sunlight Readable

    N

    TFD60W12 Electronics Feature

    Vertical Frequency

    60Hz

    Reverse Scan

    Yes (U/D, L/R)

    Time Controller (T-CON)

    Embedded T-CON

    TFD60W12 Backlight System

    Lamp Position

    Edge light type

    Lamp Type

    CCFL

    Lamp Amount

    1 pcs

    Lamp Life Time

    10K(Typ.) (Hours)

    Lamp Voltage

    480V (Typ.)

    Lamp Current

    5.0mA (Typ.)

    Lamp Operating Frequency

    47.2Khz

    Lamp Startup Voltage

    750/900V (Min.)(Ta=+25/0℃)

    Interface Type

    Connector

    Lamp Driver Board

    No

    TFD60W12 Signal Interface

    Signal Category

    Analog

    Signal Class

    TFT Specific Analog RGB

    Input Voltage for Panel

    5.0/13.0/23.0/-5.0V (Typ.)(VDD/VBB/VGG/VEE)

    Input Current for Panel

    35/35/0.05/0.1mA (Typ.)(IDD/IBB/IGG/IEE)

    Interface Type

    Connector

    Signal Interface

    molex - 52207-2417, Pitch:1.0 mm, Pin:24 pins
