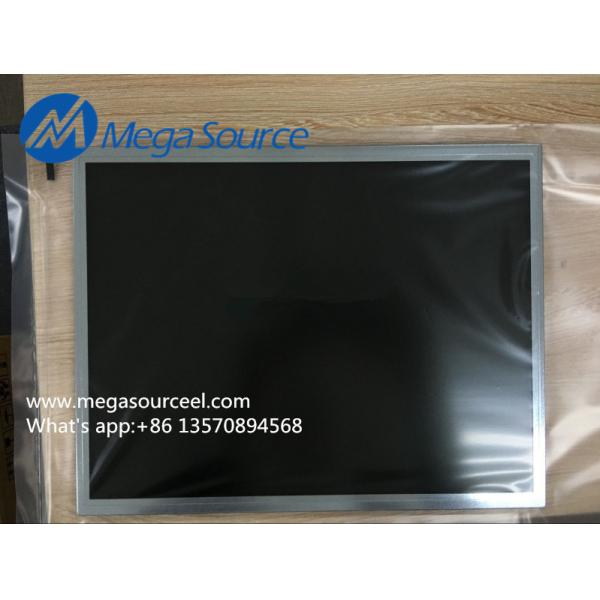

    Mitsubishi 6.5inch AA065VE11-DA-01 LCD Panel

    Ask Lasest Price
    Brand Name : Mitsubishi
    Certification : RoHS Compliant
    Model Number : AA065VE11-DA-01
    Price : Pls Contact sales team
    Delivery Time : stock
    Payment Terms : T/T , Paypal, Western Union Escrow etc.
    Supply Ability : 1000
    • Product Details
    • Company Profile

    Mitsubishi 6.5inch AA065VE11-DA-01 LCD Panel

    Mitsubishi 6.5inch AA065VE11-DA-01 LCD Panel

    Specification for AA065VE11-DA-01:

    AA065VE11-DA-01 Basic Information

    Panel Model

    AA065VE11-DA-01

    Panel Brand

    Mitsubishi

    Descrition

    a-Si TFT-LCD ,6.5 inch, 640×480

    Panel Type

    a-Si TFT-LCD

    Operating Temperature

    -30 ~ 70 °C

    Storage Temperature

    -30 ~ 80 °C

    AA065VE11-DA-01 Mechanical Features

    Dot Resolution

    640(RGB)×480 (VGA)

    Pixel Configuration

    RGB Vertical Stripe

    Pixel Density

    122 PPI

    Aspect Ratio

    4:3 (H:V)

    Form Factor

    Flat Rectangle Display

    Dot Pitch

    0.069×0.207 mm (H×V)

    Pixel Pitch

    0.207×0.207 mm (H×V)

    Weight

    TBD

    Surface

    Antireflection

    Active Area

    132.48×99.36 mm (H×V)

    Bezel Area

    135.5×102.4 mm (H×V)

    Outline Dimension

    170.2×132.6 mm (H×V)

    Outline Depth

    14.3±1.0 mm

    Holes & Brackets

    Side mounting holes (4-M2) on left, right bezel

    Landscape or Portrait

    Landscape type

    Touch Panel

    Embeded (Projected Capacitive Touch)

    Panel Cover

    With Strengthened Cover Glass

    AA065VE11-DA-01 Optical Features

    Display Mode

    TN, Normally White, Transmissive

    Brightness

    1000 cd/m² (Typ.)

    Contrast Ratio

    600 : 1 (Typ.) (Transmissive)

    Display Color

    262K/16.7M (6-bit / 8-bit)

    Color Gamut

    40% NTSC (CIE1931)

    Response Time

    6/19 (Typ.)(Tr/Td)

    Viewing Angle

    80/80/80/60 (Typ.)(CR≥10) (L/R/U/D)

    Viewing Direction

    6 o'clock

    White color Chromaticity

    Wx:0.313; Wy:0.329

    White Variation

    1.30 (Max.)(5 points)

    Sunlight Readable

    Y

    AA065VE11-DA-01 Electronics Feature

    Vertical Frequency

    60Hz

    Reverse Scan

    Yes (180°)

    AA065VE11-DA-01 Backlight System

    Lamp Position

    Edge light type (Top side)

    Lamp Type

    WLED

    Lamp Amount

    2 strings

    Lamp Shape

    2 strings

    Lamp Life Time

    100K(Typ.) (Hours)

    Lamp Replaceable

    Replaceable

    Lamp Voltage

    17.7/21.4V (Typ./Max.)

    Lamp Current

    90/100mA (Typ./Max.)

    Interface Type

    Connector

    Lamp Driver Board

    No

    AA065VE11-DA-01 Signal Interface

    Signal Category

    LVDS

    Signal Class

    LVDS (1 ch, 6/8-bit)

    Input Voltage for Panel

    3.3V (Typ.)

    Input Current for Panel

    210/280mA (Typ./Max.)

    Interface Type

    Connector

    Signal Interface

    JAE - FI-SE20P-HFE, Pitch:1.25 mm, Pin:20 pins
