    Giantplus 3.2inch GPM1096A0 LCD Panel

    Ask Lasest Price
    Brand Name : Giantplus
    Certification : RoHS Compliant
    Model Number : GPM1096A0
    Price : Pls Contact sales team
    Delivery Time : STOCK
    Payment Terms : T/T , Paypal, Western Union Escrow etc.
    Supply Ability : 1000
    • Product Details
    • Company Profile

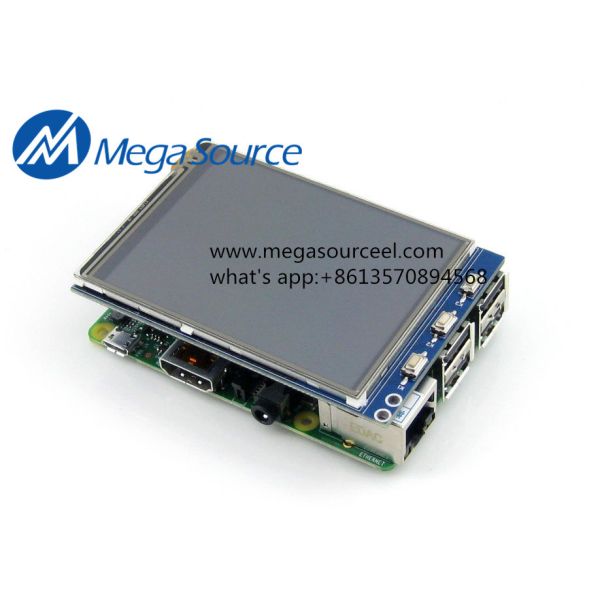

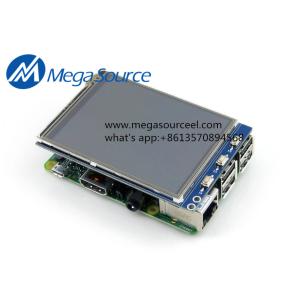

    Giantplus 3.2inch GPM1096A0 LCD Panel

    Giantplus 3.2inch GPM1096A0 LCD Panel

    Specification for GPM1096A0:

    GPM1096A0 Basic Information

    Panel Model

    GPM1096A0

    Panel Brand

    Giantplus

    Descrition

    a-Si TFT-LCD ,3.2 inch, 320×480

    Panel Type

    a-Si TFT-LCD

    Operating Temperature

    -20 ~ 70 °C

    Storage Temperature

    -30 ~ 80 °C

    GPM1096A0 Mechanical Features

    Dot Resolution

    320(RGB)×480 (HVGA)

    Pixel Configuration

    RGB Vertical Stripe

    Pixel Density

    182 PPI

    Aspect Ratio

    2:3 (H:V)

    Form Factor

    Flat Rectangle Display

    Dot Pitch

    0.0465×0.1395 mm (H×V)

    Pixel Pitch

    0.1395×0.1395 mm (H×V)

    Surface

    Hard coating (3H)

    Active Area

    44.64×66.96 mm (H×V)

    Outline Dimension

    53.64×79 mm (H×V)

    Outline Depth

    3.95±0.15 mm

    Landscape or Portrait

    Landscape type

    Touch Panel

    Embeded (4-wire Resistive)

    GPM1096A0 Optical Features

    Display Mode

    TN, Normally White, Transmissive

    Brightness

    270 cd/m² (Typ.)

    Contrast Ratio

    300 : 1 (Min.) (Transmissive)

    Display Color

    262K (6-bit)

    Color Gamut

    53% NTSC (CIE1931)

    Response Time

    25 (Typ.)(Tr+Td)

    Viewing Angle

    70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)

    White color Chromaticity

    Wx:0.330; Wy:0.320

    White Variation

    1.25 (Typ.)(9 points)

    Sunlight Readable

    N

    GPM1096A0 Electronics Feature

    Driver IC

    COG Built-in ILI9481B

    GPM1096A0 Backlight System

    Lamp Position

    Edge light type

    Lamp Type

    WLED

    Lamp Amount

    5S1P

    Lamp Shape

    1 string

    Lamp Voltage

    14/17.5V (Min./Max.)

    Lamp Current

    20mA (Typ.)

    Lamps Power Consumption

    280/350mW (Typ./Max.)

    Interface Type

    Included in panel signal interface

    Lamp Driver Board

    No

    GPM1096A0 Signal Interface

    Signal Category

    CPU

    Signal Class

    CPU

    Input Voltage for Panel

    2.8/2.8V (Typ.)(IOVCC/VCC)

    Interface Type

    FPC
