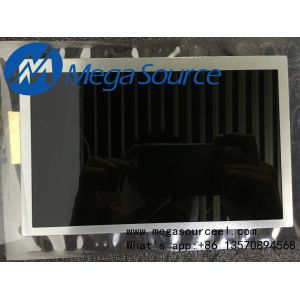

AMPIRE 7inch AM-800480R3TZQW-A1H-B LCD Panel

    Buy cheap AMPIRE 7inch AM-800480R3TZQW-A1H-B LCD Panel from wholesalers

    Buy cheap AMPIRE 7inch AM-800480R3TZQW-A1H-B LCD Panel from wholesalers
    • Buy cheap AMPIRE 7inch AM-800480R3TZQW-A1H-B LCD Panel from wholesalers

    AMPIRE 7inch AM-800480R3TZQW-A1H-B LCD Panel

    Ask Lasest Price
    Brand Name : AMPIRE
    Certification : RoHS Compliant
    Model Number : AM-800480R3TZQW-A1H-B
    Price : Pls Contact sales team
    Delivery Time : stock
    Payment Terms : T/T , Paypal, Western Union ,Escrow etc.
    Supply Ability : 1000
    • Product Details
    • Company Profile

    AMPIRE 7inch AM-800480R3TZQW-A1H-B LCD Panel

    AMPIRE 7inch AM-800480R3TZQW-A1H-B LCD Panel

    Specification for AM-800480R3TZQW-A1H-B:

    AM-800480R3TZQW-A1H-B Basic Information

    Panel Model

    AM-800480R3TZQW-A1H-B

    Panel Brand

    AMPIRE

    Descrition

    a-Si TFT-LCD ,7.0 inch, 800×480

    Panel Type

    a-Si TFT-LCD

    Operating Temperature

    -20 ~ 70 °C

    Storage Temperature

    -30 ~ 80 °C

    AM-800480R3TZQW-A1H-B Mechanical Features

    Dot Resolution

    800(RGB)×480 (WVGA)

    Pixel Configuration

    RGB Vertical Stripe

    Pixel Density

    133 PPI

    Aspect Ratio

    15:9 (H:V)

    Form Factor

    Flat Rectangle Display

    Dot Pitch

    0.0635×0.1905 mm (H×V)

    Pixel Pitch

    0.1905×0.1905 mm (H×V)

    Weight

    150g (Typ.)

    Surface

    Antiglare

    Active Area

    152.24×91.44 mm (H×V)

    Bezel Area

    155.3×94.3 mm (H×V)

    Outline Dimension

    165×104.44 mm (H×V)

    Outline Depth

    6.41 (Typ.) mm

    Holes & Brackets

    Without

    Landscape or Portrait

    Landscape type

    Touch Panel

    Without

    AM-800480R3TZQW-A1H-B Optical Features

    Display Mode

    TN, Normally White, Transmissive

    Brightness

    400 cd/m² (Typ.)

    Contrast Ratio

    500 : 1 (Typ.) (Transmissive)

    Display Color

    16.7M ()

    Color Gamut

    45% NTSC (CIE1931)

    Response Time

    5/11 (Typ.)(Tr/Td)

    Viewing Angle

    80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)

    White color Chromaticity

    Wx:0.317; Wy:0.345

    White Variation

    1.43 (Max.)(9 points)

    Sunlight Readable

    N

    AM-800480R3TZQW-A1H-B Electronics Feature

    Vertical Frequency

    60Hz

    Reverse Scan

    No

    Total Power Consumption

    2.4W (Max.)

    AM-800480R3TZQW-A1H-B Backlight System

    Lamp Position

    Edge light type

    Lamp Type

    WLED

    Lamp Amount

    3S10P

    Lamp Shape

    Array

    Lamp Life Time

    50K(Typ.) (Hours)

    Interface Type

    Included in panel signal interface

    Lamp Driver Board

    380/420mA (Typ./Max.)

    AM-800480R3TZQW-A1H-B Signal Interface

    Signal Category

    LVDS

    Signal Class

    LVDS (1 ch, 6-bit)

    Input Voltage for Panel

    3.3V (Typ.)

    Interface Type

    Connector

    Signal Interface

    HRS - DF19G-20P-1H, Pitch:1.0 mm, Pin:20 pins
