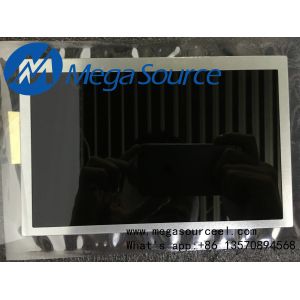

CPT 7inch CLAA070NQV1 XN LCD Panel

    Buy cheap CPT 7inch CLAA070NQV1 XN LCD Panel from wholesalers

    Buy cheap CPT 7inch CLAA070NQV1 XN LCD Panel from wholesalers
    • Buy cheap CPT 7inch CLAA070NQV1 XN LCD Panel from wholesalers

    CPT 7inch CLAA070NQV1 XN LCD Panel

    Ask Lasest Price
    Brand Name : CPT
    Certification : RoHS Compliant
    Model Number : CLAA070NQV1 XN
    Price : Pls Contact sales team
    Delivery Time : stock
    Payment Terms : T/T , Paypal, Western Union Escrow etc.
    Supply Ability : 1000
    • Product Details
    • Company Profile

    CPT 7inch CLAA070NQV1 XN LCD Panel

    CPT 7inch CLAA070NQV1 XN LCD Panel

    Specification for CLAA070NQV1 XN:

    CLAA070NQV1 XN Basic Information

    Panel Model

    CLAA070NQV1 XN

    Panel Brand

    CPT

    Descrition

    a-Si TFT-LCD ,7.0 inch, 1024×600

    Panel Type

    a-Si TFT-LCD

    Operating Temperature

    -20 ~ 70 °C

    Storage Temperature

    -30 ~ 80 °C

    Vibration Resistance

    2.9G (28.4 m/s²)

    Remarks

    for HP Slate 7

    CLAA070NQV1 XN Mechanical Features

    Dot Resolution

    1024(RGB)×600 (WSVGA)

    Pixel Configuration

    RGB Vertical Stripe

    Pixel Density

    170 PPI

    Aspect Ratio

    16:9 (H:V)

    Form Factor

    Flat Rectangle Display

    Dot Pitch

    0.0502×0.1432 mm (H×V)

    Pixel Pitch

    0.1506×0.1432 mm (H×V)

    Weight

    105g (Max.)

    Surface

    Antiglare

    Active Area

    154.214×85.92 mm (H×V)

    Bezel Area

    157.5×89.2 mm (H×V)

    Outline Dimension

    164.9×100 mm (H×V)

    Outline Depth

    2.8 (Typ.) mm

    Holes & Brackets

    Without

    Landscape or Portrait

    Landscape type

    Touch Panel

    Without

    CLAA070NQV1 XN Optical Features

    Display Mode

    HFFS, Normally Black, Transmissive

    Brightness

    350 cd/m² (Typ.)

    Contrast Ratio

    800 : 1 (Typ.) (Transmissive)

    Display Color

    16.7M (8-bit)

    Color Gamut

    50% NTSC (CIE1931)

    Response Time

    30 (Typ.)(Tr+Td)

    Viewing Angle

    85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)

    Viewing Direction

    Symmetry

    White color Chromaticity

    Wx:0.313; Wy:0.329

    White Variation

    1.25/1.43 (Typ./Max.)(9 points)

    Sunlight Readable

    N

    CLAA070NQV1 XN Electronics Feature

    Vertical Frequency

    60Hz

    Reverse Scan

    Yes (U/D, L/R)

    CLAA070NQV1 XN Backlight System

    Lamp Position

    Edge light type

    Lamp Type

    WLED

    Lamp Amount

    6S4P

    Lamp Shape

    Array

    Lamp Life Time

    15K(Min.) (Hours)

    Lamp Voltage

    19.35/21.3V (Typ./Max.)

    Lamp Current

    80mA (Typ.)

    Lamps Power Consumption

    1.55/1.71W (Typ./Max.)

    Interface Type

    Included in panel signal interface

    Lamp Driver Board

    No

    CLAA070NQV1 XN Signal Interface

    Signal Category

    LVDS

    Signal Class

    LVDS (1 ch, 8-bit)

    Input Voltage for Panel

    3.3/9.6/18.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL)

    Input Current for Panel

    30/35/0.5/0.5mA (Typ.)(DIDD/AIDD/IGH/IGL)

    Panel Power Consumption

    447/604mW (Typ./Max.)

    Voltage for Display Signals

    0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD

    Interface Type

    FPC
