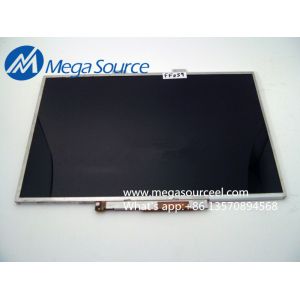

CMO 15.4inch N154C6-P04 LCD Panel

    Buy cheap CMO 15.4inch N154C6-P04 LCD Panel from wholesalers

    Buy cheap CMO 15.4inch N154C6-P04 LCD Panel from wholesalers
    • Buy cheap CMO 15.4inch N154C6-P04 LCD Panel from wholesalers

    CMO 15.4inch N154C6-P04 LCD Panel

    Ask Lasest Price
    Brand Name : CMO
    Certification : RoHS Compliant
    Model Number : N154C6-P04
    Price : Pls Contact sales team
    Delivery Time : stock
    Payment Terms : T/T , Paypal, Western Union Escrow etc.
    Supply Ability : 1000
    • Product Details
    • Company Profile

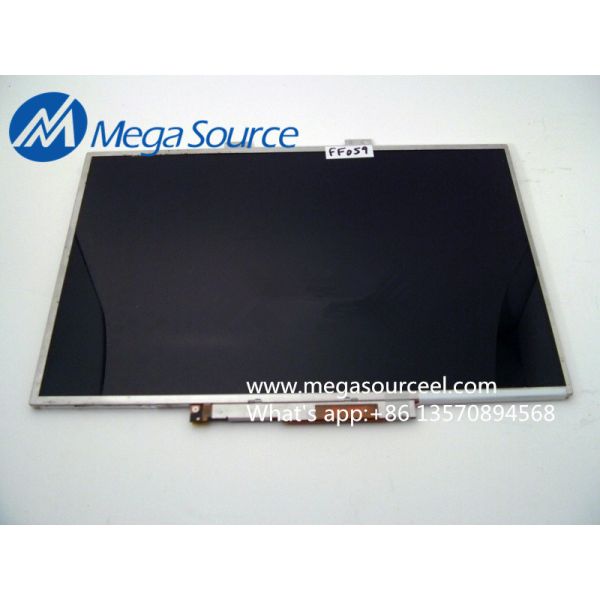

    CMO 15.4inch N154C6-P04 LCD Panel

    CMO 15.4inch N154C6-P04 LCD Panel

    Specification for N154C6-P04:

    N154C6-P04 Basic Information

    Panel Model

    N154C6-P04

    Panel Brand

    CMO

    Descrition

    a-Si TFT-LCD ,15.4 inch, 1440×900

    Panel Type

    a-Si TFT-LCD

    Operating Temperature

    0 ~ 50 °C

    Storage Temperature

    -20 ~ 60 °C

    N154C6-P04 Mechanical Features

    Dot Resolution

    1440(RGB)×900 (WXGA+)

    Pixel Configuration

    RGB Vertical Stripe

    Pixel Density

    110 PPI

    Aspect Ratio

    16:10 (H:V)

    Form Factor

    Flat Rectangle Display

    Dot Pitch

    0.0767×0.2301 mm (H×V)

    Pixel Pitch

    0.2301×0.2301 mm (H×V)

    Weight

    229/234g (Typ./Max.)

    Surface

    Glare (Haze 0%), Hard coating (3H), Reflection 0.5% (Max.)

    Active Area

    331.344×207.09 mm (H×V)

    Outline Dimension

    340.1×228.983 mm (H×V)

    Landscape or Portrait

    Landscape type

    Touch Panel

    Without

    N154C6-P04 Optical Features

    Display Mode

    TN, Normally White, Transmissive

    Brightness

    0 cd/m²

    Contrast Ratio

    500 : 1 (Typ.) (Transmissive)

    Display Color

    262K (6-bit)

    Response Time

    3/7 (Typ.)(Tr/Td)

    Viewing Angle

    60/60/50/60 (Typ.)(CR≥10) (L/R/U/D)

    Viewing Direction

    6 o'clock

    Transmissivity

    9.0% (Typ.)(with Polarizer)

    Sunlight Readable

    N

    N154C6-P04 Electronics Feature

    Vertical Frequency

    60Hz

    Reverse Scan

    No

    N154C6-P04 Backlight System

    Lamp Type

    No B/L

    N154C6-P04 Signal Interface

    Signal Category

    LVDS

    Signal Class

    LVDS (1 ch, 6-bit)

    Input Voltage for Panel

    3.3V (Typ.)

    Input Current for Panel

    380/480mA (Typ./Max.)

    Interface Type

    Connector

    Signal Interface

    I-PEX - 20474-030E-12, Pitch:0.4 mm, Pin:30 pins
