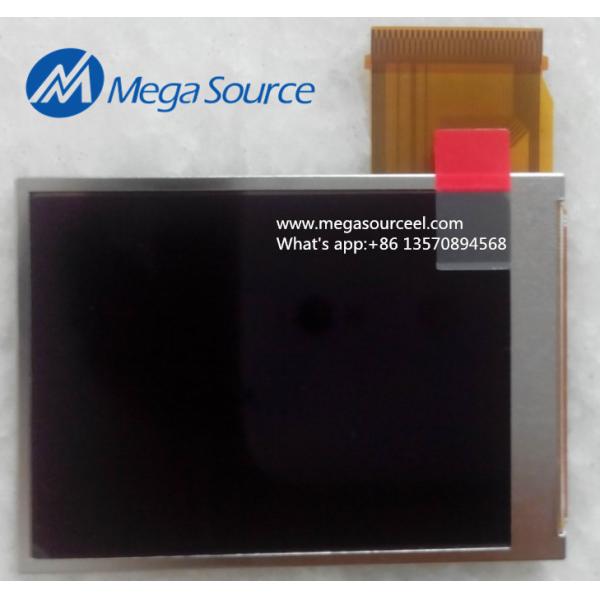

    CMO 2.4inch F02412-02U LCD Panel

    Ask Lasest Price
    Brand Name : CMO
    Certification : RoHS Compliant
    Model Number : F02412-02U
    Price : Pls Contact sales team
    Delivery Time : stock
    Payment Terms : T/T , Paypal, Western Union Escrow etc.
    Supply Ability : 1000
    • Product Details
    • Company Profile

    CMO 2.4inch F02412-02U LCD Panel

    CMO 2.4inch F02412-02U LCD Panel

    Specification for F02412-02U:

    F02412-02U Basic Information

    Panel Model

    F02412-02U

    Panel Brand

    CMO

    Descrition

    a-Si TFT-LCD ,2.4 inch, 240×320

    Panel Type

    a-Si TFT-LCD

    Operating Temperature

    -20 ~ 70 °C

    Storage Temperature

    -30 ~ 80 °C

    Remarks

    Empty cell

    F02412-02U Mechanical Features

    Dot Resolution

    240(RGB)×320 (QVGA)

    Pixel Configuration

    RGB Vertical Stripe

    Pixel Density

    166 PPI

    Aspect Ratio

    3:4 (H:V)

    Form Factor

    Flat Rectangle Display

    Dot Pitch

    0.051×0.153 mm (H×V)

    Pixel Pitch

    0.153×0.153 mm (H×V)

    Weight

    280g±10% (Mother Glass)

    Surface

    Without Polarizer

    Active Area

    36.72×48.96 mm (H×V)

    Outline Dimension

    40.52×57.231 mm (H×V)

    Outline Depth

    1.0 (Typ.) mm

    Landscape or Portrait

    Portrait type

    Touch Panel

    Without

    F02412-02U Optical Features

    Display Mode

    TN, Normally White

    Brightness

    0 cd/m²

    Contrast Ratio

    250 : 1 (Typ.) (Transmissive)

    Color Gamut

    60% NTSC (CIE1931)

    Response Time

    15/20 (Typ.)(Tr/Td)

    Viewing Angle

    45/45/35/15 (Typ.)(CR≥10) (L/R/U/D)

    Viewing Direction

    12 o'clock

    Transmissivity

    4.7% (Typ.)(with Polarizer)

    Sunlight Readable

    N

    F02412-02U Electronics Feature

    Reverse Scan

    No

    Driver IC

    Suggest HX8347

    F02412-02U Backlight System

    Lamp Type

    No B/L
