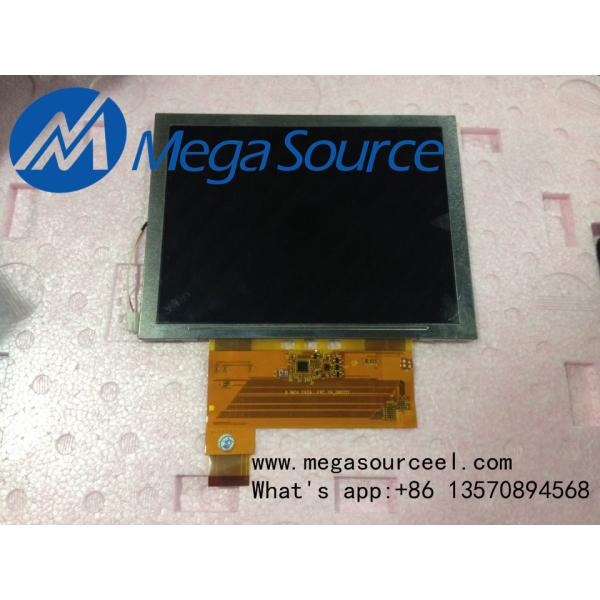

AUO 8inch A080SN01 V4 LCD Panel

    Buy cheap AUO 8inch A080SN01 V4 LCD Panel from wholesalers

    Buy cheap AUO 8inch A080SN01 V4 LCD Panel from wholesalers
    • Buy cheap AUO 8inch A080SN01 V4 LCD Panel from wholesalers

    AUO 8inch A080SN01 V4 LCD Panel

    Ask Lasest Price
    Brand Name : AUO
    Certification : RoHS Compliant
    Model Number : A080SN01 V4
    Price : Pls Contact sales team
    Delivery Time : stock
    Payment Terms : T/T , Paypal, Western Union Escrow etc.
    Supply Ability : 1000
    • Product Details
    • Company Profile

    AUO 8inch A080SN01 V4 LCD Panel

    AUO 8inch A080SN01 V4 LCD Panel

    Specification for A080SN01 V4:

    A080SN01 V4 Basic Information

    Panel Model

    A080SN01 V4

    Panel Brand

    AUO

    Descrition

    a-Si TFT-LCD ,8.0 inch, 800×600

    Panel Type

    a-Si TFT-LCD

    Model Alias

    A080SN01 V.4

    Operating Temperature

    -10 ~ 60 °C

    Storage Temperature

    -20 ~ 70 °C

    A080SN01 V4 Mechanical Features

    Dot Resolution

    800(RGB)×600 (SVGA)

    Pixel Configuration

    RGB Vertical Stripe

    Pixel Density

    125 PPI

    Aspect Ratio

    4:3 (H:V)

    Form Factor

    Flat Rectangle Display

    Dot Pitch

    0.0675×0.2025 mm (H×V)

    Pixel Pitch

    0.2025×0.2025 mm (H×V)

    Weight

    65g (Typ.)

    Surface

    Antiglare, Hard coating (3H)

    Active Area

    162×121.5 mm (H×V)

    Outline Dimension

    170.1×132.3 mm (H×V)

    Outline Depth

    1.44 (Typ.) mm

    Landscape or Portrait

    Landscape type

    Touch Panel

    Without

    A080SN01 V4 Optical Features

    Display Mode

    TN, Normally White, Transmissive

    Brightness

    0 cd/m²

    Contrast Ratio

    400 : 1 (Typ.) (Transmissive)

    Display Color

    262K/16.7M (6-bit / 6-bit + Dithering)

    Color Gamut

    50% NTSC (CIE1931)

    Response Time

    4/16 (Typ.)(Tr/Td)

    Viewing Angle

    70/70/50/65 (Typ.)(CR≥10) (L/R/U/D)

    Viewing Direction

    6 o'clock

    Transmissivity

    4.5% (Typ.)(with Polarizer)

    Sunlight Readable

    N

    A080SN01 V4 Electronics Feature

    Reverse Scan

    Yes (U/D, L/R)

    Time Controller (T-CON)

    Embedded T-CON

    A080SN01 V4 Backlight System

    Lamp Type

    No B/L

    A080SN01 V4 Signal Interface

    Signal Category

    TTL

    Signal Class

    TTL (1 ch, 6/8-bit) + SPI

    Input Voltage for Panel

    3.3/11.68/15/-6.75V (Typ.)(VDD/AVDD/VGH/VGL)

    Input Current for Panel

    11/16/0.16/0.16mA (Typ.)(IDD/IAVDD/IGH/IGL)

    Panel Power Consumption

    230/260mW (Typ./Max.)

    Voltage for Display Signals

    0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD

    Interface Type

    FPC
