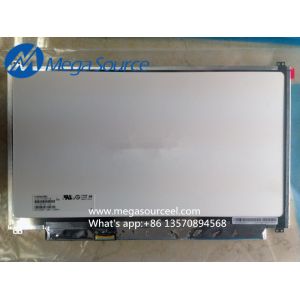

CMO 13.3inch N133I6-P09 LCD Panel

    Buy cheap CMO 13.3inch N133I6-P09 LCD Panel from wholesalers

    Buy cheap CMO 13.3inch N133I6-P09 LCD Panel from wholesalers
    • Buy cheap CMO 13.3inch N133I6-P09 LCD Panel from wholesalers

    CMO 13.3inch N133I6-P09 LCD Panel

    Ask Lasest Price
    Brand Name : CMO
    Certification : RoHS Compliant
    Model Number : N133I6-P09
    Price : Pls Contact sales team
    Delivery Time : stock
    Payment Terms : T/T , Paypal, Western Union Escrow etc.
    Supply Ability : 1000
    • Product Details
    • Company Profile

    CMO 13.3inch N133I6-P09 LCD Panel

    CMO 13.3inch N133I6-P09 LCD Panel

    Specification for N133I6-P09:

    N133I6-P09 Basic Information

    Panel Model

    N133I6-P09

    Panel Brand

    CMO

    Descrition

    a-Si TFT-LCD ,13.3 inch, 1280×800

    Panel Type

    a-Si TFT-LCD

    Operating Temperature

    0 ~ 50 °C

    Storage Temperature

    -20 ~ 60 °C

    N133I6-P09 Mechanical Features

    Dot Resolution

    1280(RGB)×800 (WXGA)

    Pixel Configuration

    RGB Vertical Stripe

    Pixel Density

    113 PPI

    Aspect Ratio

    16:10 (H:V)

    Form Factor

    Flat Rectangle Display

    Dot Pitch

    0.0745×0.2235 mm (H×V)

    Pixel Pitch

    0.2235×0.2235 mm (H×V)

    Weight

    175g (Max.)

    Surface

    Glare (Haze 0%), Hard coating (3H)

    Active Area

    286.08×178.8 mm (H×V)

    Outline Dimension

    294.44×202.15 mm (H×V)

    Outline Depth

    1.43±0.1 mm

    Landscape or Portrait

    Landscape type

    Touch Panel

    Without

    N133I6-P09 Optical Features

    Display Mode

    TN, Normally White, Transmissive

    Brightness

    0 cd/m²

    Contrast Ratio

    500 : 1 (Typ.) (Transmissive)

    Display Color

    262K (6-bit)

    Response Time

    3/7 (Typ.)(Tr/Td)

    Viewing Angle

    70/70/55/55 (Typ.)(CR≥10) (L/R/U/D)

    Transmissivity

    5.8% (Typ.)(with Polarizer)

    Sunlight Readable

    N

    N133I6-P09 Electronics Feature

    Vertical Frequency

    60Hz

    Reverse Scan

    No

    N133I6-P09 Backlight System

    Lamp Type

    No B/L

    Interface Type

    Included in panel signal interface

    Lamp Driver Board

    No

    N133I6-P09 Signal Interface

    Signal Category

    LVDS

    Signal Class

    LVDS (1 ch, 6-bit)

    Input Voltage for Panel

    3.3V (Typ.)

    Input Current for Panel

    250/280mA (Typ./Max.)

    Interface Type

    Connector

    Signal Interface

    I-PEX - 20474-030E-12, Pitch:0.4 mm, Pin:30 pins
