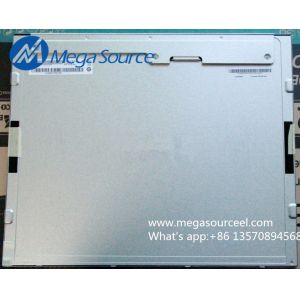

CMO 19inch M190A1-P0G LCD Panel

    Buy cheap CMO 19inch M190A1-P0G LCD Panel from wholesalers

    Buy cheap CMO 19inch M190A1-P0G LCD Panel from wholesalers
    • Buy cheap CMO 19inch M190A1-P0G LCD Panel from wholesalers

    CMO 19inch M190A1-P0G LCD Panel

    Ask Lasest Price
    Brand Name : CMO
    Certification : RoHS Compliant
    Model Number : M190A1-P0G
    Price : Pls Contact sales team
    Delivery Time : stock
    Payment Terms : T/T , Paypal, Western Union Escrow etc.
    Supply Ability : 1000
    • Product Details
    • Company Profile

    CMO 19inch M190A1-P0G LCD Panel

    CMO 19inch M190A1-P0G LCD Panel

    Specification for M190A1-P0G:

    M190A1-P0G Basic Information

    Panel Model

    M190A1-P0G

    Panel Brand

    CMO

    Descrition

    a-Si TFT-LCD ,19.0 inch, 1440×900

    Panel Type

    a-Si TFT-LCD

    Operating Temperature

    0 ~ 50 °C

    Storage Temperature

    -20 ~ 60 °C

    M190A1-P0G Mechanical Features

    Dot Resolution

    1440(RGB)×900 (WXGA+)

    Pixel Configuration

    RGB Vertical Stripe

    Pixel Density

    89 PPI

    Aspect Ratio

    16:10 (H:V)

    Form Factor

    Flat Rectangle Display

    Dot Pitch

    0.0945×0.2835 mm (H×V)

    Pixel Pitch

    0.2835×0.2835 mm (H×V)

    Weight

    472g (Max.)

    Surface

    Antiglare (Haze 25%), Hard coating (3H)

    Active Area

    408.24×255.15 mm (H×V)

    Outline Dimension

    419.84×266.05 mm (H×V)

    Outline Depth

    1.82 (Typ.) mm

    Landscape or Portrait

    Landscape type

    Touch Panel

    Without

    M190A1-P0G Optical Features

    Display Mode

    TN, Normally White, Transmissive

    Brightness

    0 cd/m²

    Contrast Ratio

    1000 : 1 (Typ.) (Transmissive)

    Display Color

    16.7M (8-bit)

    Response Time

    1.5/3.5 (Typ.)(Tr/Td)

    Viewing Angle

    85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)

    White color Chromaticity

    Wx:0.322; Wy:0.363

    White Variation

    1.25/1.40 (Typ./Max.)(9 points)

    Transmissivity

    6.8% (Typ.)(with Polarizer)

    Sunlight Readable

    N

    M190A1-P0G Electronics Feature

    Vertical Frequency

    60Hz

    Reverse Scan

    No

    Total Power Consumption

    3.55W (Typ.)

    M190A1-P0G Backlight System

    Lamp Type

    No B/L

    M190A1-P0G Signal Interface

    Signal Category

    LVDS

    Signal Class

    LVDS (2 ch, 8-bit)

    Input Voltage for Panel

    5.0V (Typ.)

    Input Current for Panel

    0.71/0.85A (Typ./Max.)

    Panel Power Consumption

    3.55/4.25W (Typ./Max.)

    Interface Type

    Connector

    Signal Interface

    STM - MSAKT2407P30A, Pitch:1.0 mm, Pin:30 pins
