CMO 15.4inch N154I2-P02 LCD Panel

    Buy cheap CMO 15.4inch N154I2-P02 LCD Panel from wholesalers

    Buy cheap CMO 15.4inch N154I2-P02 LCD Panel from wholesalers
    • Buy cheap CMO 15.4inch N154I2-P02 LCD Panel from wholesalers

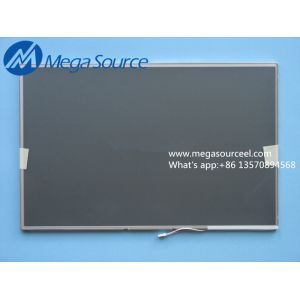

    CMO 15.4inch N154I2-P02 LCD Panel

    Ask Lasest Price
    Brand Name : CMO
    Certification : RoHS Compliant
    Model Number : N154I2-P02
    Price : Pls Contact sales team
    Delivery Time : stock
    Payment Terms : T/T , Paypal, Western Union Escrow etc.
    Supply Ability : 1000
    • Product Details
    • Company Profile

    CMO 15.4inch N154I2-P02 LCD Panel

    CMO 15.4inch N154I2-P02 LCD Panel

    Specification for N154I2-P02:

    N154I2-P02 Basic Information

    Panel Model

    N154I2-P02

    Panel Brand

    CMO

    Descrition

    a-Si TFT-LCD ,15.4 inch, 1280×800

    Panel Type

    a-Si TFT-LCD

    Operating Temperature

    0 ~ 50 °C

    Storage Temperature

    -20 ~ 60 °C

    N154I2-P02 Mechanical Features

    Dot Resolution

    1280(RGB)×800 (WXGA)

    Pixel Configuration

    RGB Vertical Stripe

    Pixel Density

    98 PPI

    Aspect Ratio

    16:10 (H:V)

    Form Factor

    Flat Rectangle Display

    Dot Pitch

    0.08625×0.25875 mm (H×V)

    Pixel Pitch

    0.25875×0.25875 mm (H×V)

    Weight

    273/283g (Typ./Max.)

    Surface

    Antiglare, Hard coating (3H)

    Active Area

    331.2×207 mm (H×V)

    Outline Dimension

    339.2×214.45 mm (H×V)

    Outline Depth

    1.63 (Typ.) mm

    Landscape or Portrait

    Landscape type

    Touch Panel

    Without

    N154I2-P02 Optical Features

    Display Mode

    TN, Normally White, Transmissive

    Brightness

    0 cd/m²

    Contrast Ratio

    400 : 1 (Typ.) (Transmissive)

    Display Color

    262K (6-bit)

    Response Time

    5/11 (Typ.)(Tr/Td)

    Viewing Angle

    45/45/20/45 (Typ.)(CR≥10) (L/R/U/D)

    Transmissivity

    8.5% (Typ.)(with Polarizer)

    Sunlight Readable

    N

    N154I2-P02 Electronics Feature

    Vertical Frequency

    60Hz

    Reverse Scan

    No

    N154I2-P02 Backlight System

    Lamp Type

    No B/L

    N154I2-P02 Signal Interface

    Signal Category

    LVDS

    Signal Class

    LVDS (1 ch, 6-bit)

    Input Voltage for Panel

    3.3V (Typ.)

    Input Current for Panel

    330mA (Typ.)

    Interface Type

    Connector

    Signal Interface

    JAE - FI-XB30SL-HF10, Pitch:1.0 mm, Pin:30 pins
