CMO 18.5inch V185B1-PE1 LCD Panel

    Buy cheap CMO 18.5inch V185B1-PE1 LCD Panel from wholesalers

    Buy cheap CMO 18.5inch V185B1-PE1 LCD Panel from wholesalers
    • Buy cheap CMO 18.5inch V185B1-PE1 LCD Panel from wholesalers

    CMO 18.5inch V185B1-PE1 LCD Panel

    Ask Lasest Price
    Brand Name : CMO
    Certification : RoHS Compliant
    Model Number : V185B1-PE1
    Price : Pls Contact sales team
    Delivery Time : stock
    Payment Terms : T/T , Paypal, Western Union Escrow etc.
    Supply Ability : 1000
    • Product Details
    • Company Profile

    CMO 18.5inch V185B1-PE1 LCD Panel

    CMO 18.5inch V185B1-PE1 LCD Panel

    Specification for V185B1-PE1:

    V185B1-PE1 Basic Information

    Panel Model

    V185B1-PE1

    Panel Brand

    CMO

    Descrition

    a-Si TFT-LCD ,18.5 inch, 1366×768

    Panel Type

    a-Si TFT-LCD

    Operating Temperature

    0 ~ 50 °C

    Storage Temperature

    -20 ~ 60 °C

    V185B1-PE1 Mechanical Features

    Dot Resolution

    1366(RGB)×768 (WXGA)

    Pixel Configuration

    RGB Vertical Stripe

    Pixel Density

    84 PPI

    Aspect Ratio

    16:9 (H:V)

    Form Factor

    Flat Rectangle Display

    Dot Pitch

    0.100×0.300 mm (H×V)

    Pixel Pitch

    0.300×0.300 mm (H×V)

    Weight

    415/435g (Typ./Max.)

    Surface

    Antiglare (Haze 25%), Hard coating (3H)

    Active Area

    409.8×230.4 mm (H×V)

    Outline Dimension

    420.65×241.25 mm (H×V)

    Outline Depth

    1.83 (Typ.) mm

    Landscape or Portrait

    Landscape type

    Touch Panel

    Without

    V185B1-PE1 Optical Features

    Display Mode

    TN, Normally White, Transmissive

    Brightness

    0 cd/m²

    Contrast Ratio

    1000 : 1 (Typ.) (Transmissive)

    Display Color

    16.7M (8-bit)

    Response Time

    1.3/3.7 (Typ.)(Tr/Td)

    Viewing Angle

    85/85/75/85 (Typ.)(CR≥10) (L/R/U/D)

    Transmissivity

    6.0% (Typ.)(with Polarizer)

    Sunlight Readable

    N

    V185B1-PE1 Electronics Feature

    Vertical Frequency

    60Hz

    Reverse Scan

    No

    V185B1-PE1 Backlight System

    Lamp Type

    No B/L

    V185B1-PE1 Signal Interface

    Signal Category

    LVDS

    Signal Class

    LVDS (1 ch, 8-bit)

    Input Voltage for Panel

    5.0V (Typ.)

    Input Current for Panel

    0.57/0.76mA (Typ./Max.)

    Panel Power Consumption

    3.0W (Typ.)

    Interface Type

    Connector

    Signal Interface

    STARCONN - 093G30-B2001A, Pitch:1.0 mm, Pin:30 pins

    Below is some of our other LCD panel hot offer,pls check if you need any of them:

    P50CD4

    E Ink

    5.0"

    320×234

    TFD60W11-MM

    TOSHIBA

    6.0"

    320×234

    LTA070B1S4F

    TOSHIBA

    7.0"

    320×240

    TCG070WVLPRC-GN

    BOE

    7.0"

    800×480

    LB070WQ5-TD01

    LG Display

    7.0"

    480×240

    NL3224AC35-01

    NLT

    5.5"

    320×240

    LQ038B7DB01

    SHARP

    3.8"

    320×480

    TD025THEEA

    TPO

    2.5"

    640×240

    TD030WHEA1

    TPO

    3.0"

    320×240

    TJ035NC06AA

    TPO

    3.5"

    240×320

    LB070WV1-TD01

    LG Display

    7.0"

    800×480

    LTM08C351L

    TOSHIBA

    8.4"

    800×600

    VTD025THEB2

    TPO

    2.5"

    640×240

    TD025THEB2

    TPO

    2.5"

    640×240

    LT042MDV5000

    JDI

    4.2"

    768×1280

    AA065VD11

    Mitsubishi

    6.5"

    640×480

    LM215WF3-SLQ1

    LG Display

    21.5"

    1920×1080

    M270HVN02.1

    AUO

    27.0"

    1920×1080

    LD070WS2-SL01

    LG Display

    7.0"

    1024×600

    NL6448AC20-06

    NLT

    6.5"

    640×480

    TM070RBH10-20

    TIANMA

    7.0"

    800×480

    M280DGJ-L30

    INNOLUX

    28.0"

    3840×2160

    CLAA057VA01CW

    CPT

    5.7"

    640×480

    CLAA102NB01XV

    CPT

    10.2"

    1024×600

    LQ024AC111

    2.4"

    480×234

    LQ057AC113

    5.7"

    320×240

    claa104xv01cw

    CPT

    10.4"

    1024×768

    CLAA101ND06CW

    CPT

    10.1"

    1024×600

    CLAA080NA12 CW

    CPT

    8.0"

    1024×600

    CLAA048LA0BCW

    CPT

    4.8"

    800×480

    CLAA061LA0BCW

    CPT

    6.1"

    800×480

    CLAA104XA12BCW

    CPT

    10.4"

    1024×768

    G050VTN01.1

    AUO

    5.0"

    800×480

    G070VVN01.1

    AUO

    7.0"

    800×480

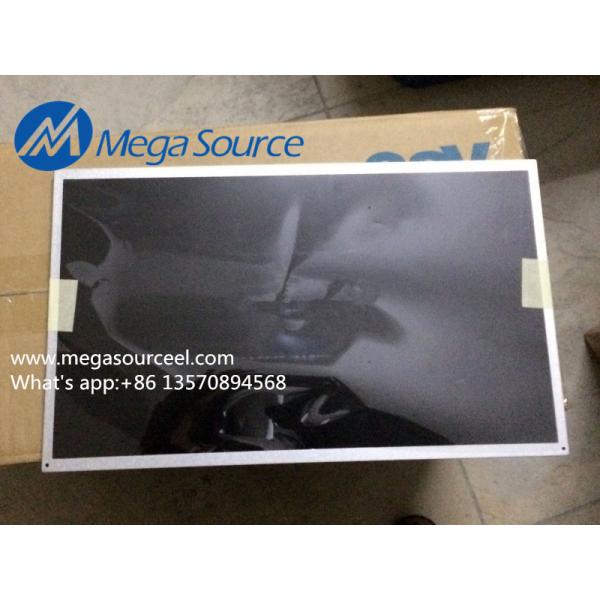

    Quality CMO 18.5inch V185B1-PE1 LCD Panel for sale
