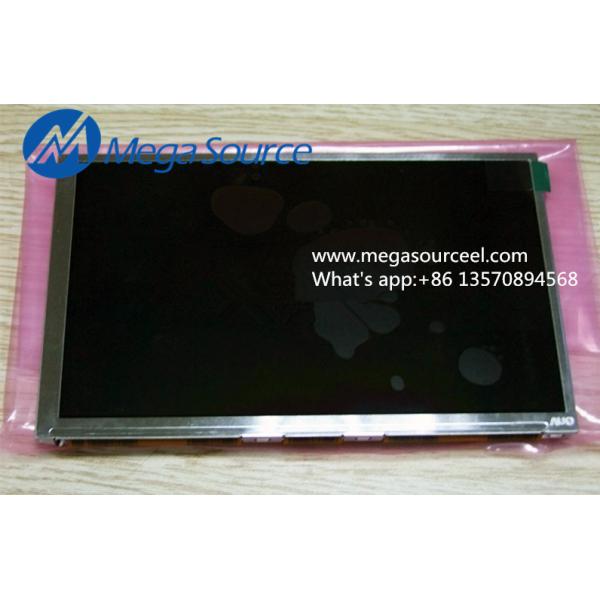

AUO 7inch A070PAN01.0 CELL LCD Panel

    Buy cheap AUO 7inch A070PAN01.0 CELL LCD Panel from wholesalers

    Buy cheap AUO 7inch A070PAN01.0 CELL LCD Panel from wholesalers
    • Buy cheap AUO 7inch A070PAN01.0 CELL LCD Panel from wholesalers

    AUO 7inch A070PAN01.0 CELL LCD Panel

    Ask Lasest Price
    Brand Name : AUO
    Certification : RoHS Compliant
    Model Number : A070PAN01.0 CELL
    Price : Pls Contact sales team
    Delivery Time : stock
    Payment Terms : T/T , Paypal, Western Union Escrow etc.
    Supply Ability : 1000
    • Product Details
    • Company Profile

    AUO 7inch A070PAN01.0 CELL LCD Panel

    AUO 7inch A070PAN01.0 CELL LCD Panel

    Specification for A070PAN01.0 CELL:

    A070PAN01.0 CELL Basic Information

    Panel Model

    A070PAN01.0 CELL

    Panel Brand

    AUO

    Descrition

    a-Si TFT-LCD ,7.0 inch, 900×1440

    Panel Type

    a-Si TFT-LCD

    Operating Temperature

    -10 ~ 50 °C

    Storage Temperature

    -20 ~ 60 °C

    A070PAN01.0 CELL Mechanical Features

    Dot Resolution

    900(RGB)×1440 (WXGA+)

    Pixel Configuration

    RGB Vertical Stripe

    Pixel Density

    242 PPI

    Aspect Ratio

    10:16 (H:V)

    Form Factor

    Flat Rectangle Display

    Dot Pitch

    0.0349×0.1047 mm (H×V)

    Pixel Pitch

    0.1047×0.1047 mm (H×V)

    Weight

    29g

    Surface

    Antiglare

    Active Area

    94.23×150.77 mm (H×V)

    Outline Dimension

    102.65×161 mm (H×V)

    Outline Depth

    0.763 (Typ.) mm

    Landscape or Portrait

    Portrait type

    Touch Panel

    Without

    A070PAN01.0 CELL Optical Features

    Display Mode

    AHVA, Normally Black, Transmissive

    Brightness

    0 cd/m²

    Contrast Ratio

    800 : 1 (Typ.) (Transmissive)

    Display Color

    16.7M (8-bit)

    Color Gamut

    50% NTSC (CIE1931)

    Response Time

    18/12 (Typ.)(Tr/Td)

    Viewing Angle

    85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)

    Viewing Direction

    Symmetry

    Transmissivity

    4.0% (Typ.)(with Polarizer)

    Sunlight Readable

    N

    A070PAN01.0 CELL Electronics Feature

    Vertical Frequency

    60Hz

    Reverse Scan

    No

    A070PAN01.0 CELL Backlight System

    Lamp Type

    No B/L

    A070PAN01.0 CELL Signal Interface

    Signal Category

    MIPI

    Signal Class

    MIPI (4 data lanes)

    Input Voltage for Panel

    3.3V (Typ.)

    Input Current for Panel

    121.0mA (Typ.)

    Panel Power Consumption

    0.4W (Typ.)

    Interface Type

    Connector

    Signal Interface

    JAE - WH1P040WA1, Pitch:0.4 mm, Pin:40 pins
