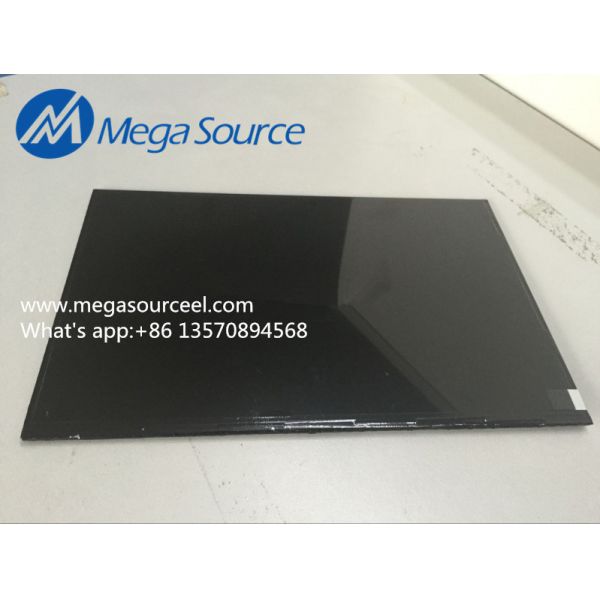

IVO 10.1inch C101NWT7 LCD Panel

    Buy cheap IVO 10.1inch C101NWT7 LCD Panel from wholesalers

    Buy cheap IVO 10.1inch C101NWT7 LCD Panel from wholesalers
    • Buy cheap IVO 10.1inch C101NWT7 LCD Panel from wholesalers

    IVO 10.1inch C101NWT7 LCD Panel

    Ask Lasest Price
    Brand Name : IVO
    Certification : RoHS Compliant
    Model Number : C101NWT7
    Price : Pls Contact sales team
    Delivery Time : stock
    Payment Terms : T/T , Paypal, Western Union Escrow etc.
    Supply Ability : 1000
    • Product Details
    • Company Profile

    IVO 10.1inch C101NWT7 LCD Panel

    IVO 10.1inch C101NWT7 LCD Panel

    Specification for C101NWT7:

    C101NWT7 Basic Information

    Panel Model

    C101NWT7

    Panel Brand

    IVO

    Descrition

    a-Si TFT-LCD ,10.1 inch, 1024×600

    Panel Type

    a-Si TFT-LCD

    Operating Temperature

    0 ~ 50 °C

    Storage Temperature

    -20 ~ 60 °C

    Remarks

    3 chips

    C101NWT7 Mechanical Features

    Dot Resolution

    1024(RGB)×600 (WSVGA)

    Pixel Configuration

    RGB Vertical Stripe

    Pixel Density

    117 PPI

    Aspect Ratio

    16:9 (H:V)

    Form Factor

    Flat Rectangle Display

    Dot Pitch

    0.0725×0.2088 mm (H×V)

    Pixel Pitch

    0.2175×0.2088 mm (H×V)

    Weight

    112g

    Surface

    Without Polarizer

    Active Area

    222.72×125.28 mm (H×V)

    Outline Dimension

    230.52×134.3 mm (H×V)

    Outline Depth

    1.0±0.1 mm

    Landscape or Portrait

    Landscape type

    Touch Panel

    Without

    C101NWT7 Optical Features

    Display Mode

    TN, Normally White, Transmissive

    Brightness

    0 cd/m²

    Contrast Ratio

    500 : 1 (Typ.) (Transmissive)

    Color Gamut

    45% NTSC (CIE1931)

    Response Time

    8 (Typ.)(Tr+Td)

    Viewing Angle

    45/45/15/35 (Typ.)(CR≥10) (L/R/U/D)

    Viewing Direction

    6 o'clock

    Transmissivity

    6.68% (Typ.)(with Polarizer)

    Sunlight Readable

    N

    C101NWT7 Electronics Feature

    Vertical Frequency

    60Hz

    Driver IC

    Suggest HX8285-A + HX8677-E

    C101NWT7 Backlight System

    Lamp Type

    No B/L
