Quick Detail:
TRIPLE 10-BIT, 240 MSPS VIDEO DAC WITH TRI-LEVEL SYNC AND VIDEO
(ITU-R.BT601) COMPLIANT FULLSCALE RANGE
Description:
The THS8135 is a general-purpose triple high-speed D/A converter
optimized for use in video/graphics applications. The device
operates from 3.3-V analog and 1.8-V digital supplies. The THS8135
performance is assured at a sampling rate up to 240 MSPS. The
THS8135 consists of three 10-bit D/A converters and additional
circuitry for bi-level/tri-level sync and blanking level
generation. By providing a dc offset for the lowest video amplitude
output in video DAC mode, the device can insert a (negative)
bi-level or (negative/positive) tri-level sync on either only the
green/luminance (sync-on-green/sync-on-Y) channel or on all
channels for video applications. A generic DAC mode avoids this dc
offset, making this device suitable for non-video applications as
well.
The THS8135 is a footprint-compatible functional upgrade to the
THS8133. In addition, the THS8135 allows a higher update rate for
oversampled video digitizing for all PC graphics formats up to UXGA
(1600x1200) resolution at 85 Hz and all practical digital TV
formats including HDTV. The support for oversampling significantly
reduces the complexity of the analog reconstruction filter required
behind the DAC.
Standard video levels can be generated for the full 10-bit input
code range. Alternatively, the same levels can be reached from a
reduced input code range compliant to the video sampling standard
ITU-R.BT-601. In that case, the full-scale range of the DAC is
dependent on the RGB or YCbCr color space configuration of the
device.
When configured for RGB operation, full video output swing is
reached for input codes 64-940 on all channels.
When configured for YCbCr operation, code range 64-940 on Y and
code range 64-960 on Cb and Cr channels generate full output swing
using internal amplitude scaling on these color components. The
device provides headroom to accommodate under-/over-shoot outside
the ITU-R.BT601 range to allow the generation of ITU-R.BT601
illegal colors or super-black / super-white levels.
A digital control input for insertion of a reference (blanking)
level on the analog outputs is included. The amplitude of the
blanking level is configurable for either RGB or YPbPr component
outputs and for full or reduced input code ranges. The inserted
sync output amplitude(s) always has the required 7:3 ratio to the
full-scale video amplitude.
The current-steering DACs can be directly terminated in resistive
loads to produce voltage outputs. The device provides a flexible
configuration of maximum output current drive. The devices output
drivers have been specifically designed to produce standard video
output levels when directly connected to a single-ended
double-terminated 75-Ω coaxial cable.
Applications:
Triple 10-Bit D/A Converters
240-MSPS Operation
YPbPr/RGB Configurable Blanking Levels, Correctly Positioned for
Either Full
(0–1023) or Video (ITU–R.BT601) –
Compliant Input Code Ranges
Generic Triple DAC Mode for Non-Video Applications
Direct Drive of Double-Terminated 75-Ω Load Into Standard Video
Levels
3x10 Bit 4:4:4, 2x10 Bit 4:2:2 or 1x10 Bit 4:2:2 (ITU–R.BT656)
Multiplexed
YCbCr/GBR Input Data Formats
Bi-Level (EIA) or Tri-Level (SMPTE) Sync Generation
Integrated Sync-On-Green/Luminance or
Sync-On-All Composite Sync Insertion
Internal Voltage Reference
Low-Power Operation From 3.3-V Analog and 1.8-V Digital Suply
Levels applications
High-Definition Television (HDTV) Set-Top Boxes/Receivers/Displays
High-Resolution Image Processing
Specifications:
Datasheets | THS8135 |

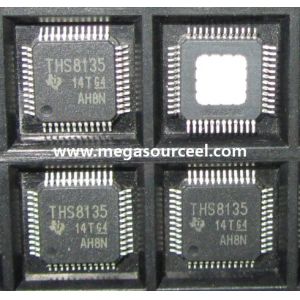

Product Photos | 48-TQFP-PHP |
Product Training Modules | Data Converter Basics |
Standard Package | 250 |
Category | Integrated Circuits (ICs) |
Family | Data Acquisition - Digital to Analog Converters (DAC) |
Series | - |
Packaging | Tray |
Settling Time | 15ns |
Number of Bits | 10 |
Data Interface | Parallel |
Number of Converters | 3 |
Voltage Supply Source | Analog and Digital |
Power Dissipation (Max) | 350mW |
Operating Temperature | 0°C ~ 70°C |
Mounting Type | Surface Mount |
Package / Case | 48-TQFP Exposed Pad |
Supplier Device Package | 48-HTQFP (7x7) |
Number of Outputs and Type | 3 Current, Unipolar |
Sampling Rate (Per Second) | 240M |
Catalog Page | 816 (CN081 PDF) |
Other Names | 296-13049-5 |
