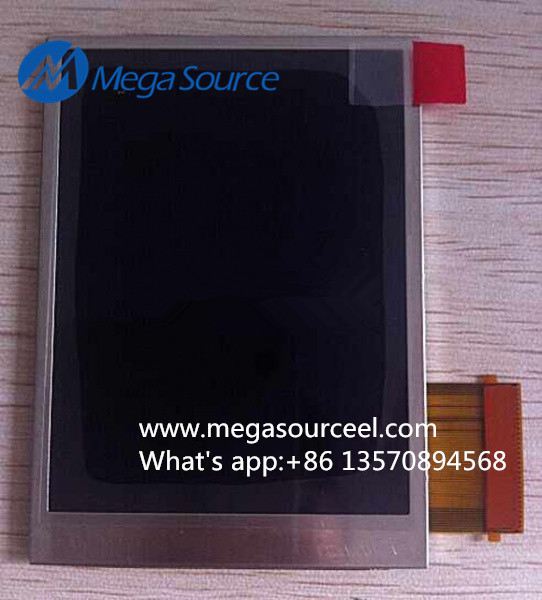

    HITACHI 2.8inch DX07D05VM0AAA LCD Panel

    HITACHI 2.8inch DX07D05VM0AAA LCD Panel

    Specification for DX07D05VM0AAA:

    DX07D05VM0AAA Basic Information

    Panel Model

    DX07D05VM0AAA

    Panel Brand

    HITACHI

    Descrition

    a-Si TFT-LCD ,2.8 inch, 480×640

    Panel Type

    a-Si TFT-LCD

    Remarks

    3 in 1 FPC

    DX07D05VM0AAA Mechanical Features

    Dot Resolution

    480(RGB)×640 (VGA)

    Pixel Configuration

    RGB Vertical Stripe

    Pixel Density

    289 PPI

    Aspect Ratio

    3:4 (H:V)

    Form Factor

    Flat Rectangle Display

    Dot Pitch

    0.02925×0.08775 mm (H×V)

    Pixel Pitch

    0.08775×0.08775 mm (H×V)

    Weight

    10.5g (Typ.)

    Active Area

    42.12×56.16 mm (H×V)

    Outline Dimension

    46.1×64.4 mm (H×V)

    Outline Depth

    1.8 (Typ.) mm

    Landscape or Portrait

    Portrait type

    Touch Panel

    Without

    DX07D05VM0AAA Optical Features

    Display Mode

    IPS, Normally Black, Transmissive

    Display Color

    262K (6-bit)

    Viewing Direction

    Symmetry

    Sunlight Readable

    N

    DX07D05VM0AAA Electronics Feature

    Driver IC

    Built-in R69311

    DX07D05VM0AAA Backlight System

    Lamp Position

    Edge light type

    Lamp Type

    WLED

    Lamp Current

    20mA (Typ.)

    Interface Type

    Included in panel signal interface

    DX07D05VM0AAA Signal Interface

    Signal Category

    TTL

    Signal Class

    Parallel RGB (1 ch, 6-bit) + SPI

    Input Voltage for Panel

    1.8/2.85V (Typ.)(IOVCC/VDD)

    Interface Type

    Connector

    Signal Interface

    Panasonic - AXT340164, Pitch:0.4 mm, Pin:40 pins
