    Epson 5.8inch L5S30853P00 LCD Panel

    Ask Lasest Price
    Brand Name : Epson
    Certification : RoHS Compliant
    Model Number : L5S30853P00
    Price : Pls Contact sales team
    Delivery Time : stock
    Payment Terms : T/T , Paypal, Western Union ,Escrow etc.
    Supply Ability : 1000
    • Product Details
    • Company Profile

    Epson 5.8inch L5S30853P00 LCD Panel

    Epson 5.8inch L5S30853P00 LCD Panel

    Specification for L5S30853P00:

    L5S30853P00 Basic Information

    Panel Model

    L5S30853P00

    Panel Brand

    Epson

    Descrition

    a-Si TFT-LCD ,5.8 inch, 400×240

    Panel Type

    a-Si TFT-LCD

    Operating Temperature

    -30 ~ 80 °C

    Storage Temperature

    -30 ~ 85 °C

    L5S30853P00 Mechanical Features

    Dot Resolution

    400(RGB)×240 (WQVGA)

    Pixel Configuration

    RGB Vertical Stripe

    Pixel Density

    80 PPI

    Aspect Ratio

    17:9 (H:V)

    Form Factor

    Flat Rectangle Display

    Dot Pitch

    0.1085×0.287 mm (H×V)

    Pixel Pitch

    0.3255×0.287 mm (H×V)

    Weight

    120g (Typ.)

    Surface

    Glare (Haze 0%)

    Active Area

    130.2×68.88 mm (H×V)

    Bezel Area

    132.6×71.3 mm (H×V)

    Outline Dimension

    144.1×83.9 mm (H×V)

    Outline Depth

    6.9 (Typ.) mm

    Landscape or Portrait

    Landscape type

    Touch Panel

    Without

    L5S30853P00 Optical Features

    Display Mode

    Vistarich, Normally Black, Transmissive

    Brightness

    450 cd/m² (Typ.)

    Contrast Ratio

    500 : 1 (Typ.) (Transmissive)

    Display Color

    262K (6-bit)

    Response Time

    20/20 (Typ.)(Tr/Td)

    Viewing Angle

    80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)

    Viewing Direction

    Symmetry

    White color Chromaticity

    Wx:0.310; Wy:0.335

    Sunlight Readable

    N

    L5S30853P00 Electronics Feature

    Vertical Frequency

    60Hz

    Reverse Scan

    Yes (180°)

    Time Controller (T-CON)

    Need external T-CON

    L5S30853P00 Backlight System

    Lamp Position

    Edge light type

    Lamp Type

    WLED

    Lamp Amount

    4S2P

    Lamp Shape

    2 strings

    Interface Type

    Connector

    Lamp Driver Board

    No

    L5S30853P00 Signal Interface

    Signal Category

    TTL

    Signal Class

    Parallel RGB (1 ch, 6-bit)

    Input Voltage for Panel

    3.3/5.9/15.0/-10.5V (Typ.)(VDD1/VDD2/VGH/VGL)

    Interface Type

    Connector

    Signal Interface

    IRISO - IMSA-9637S-60Y923, Pitch:0.5 mm, Pin:60 pins

    Below is some of our other LCD panel hot offer,pls check if you need any of them:

    TX11D101VM0EAA

    KOE

    4.3"

    480×800

    CLAA101FP05

    CPT

    10.1"

    1920×1200

    KCG047QV1AA-G210

    BOE

    4.7"

    320×240

    LS024Q3UX12

    SHARP

    2.4"

    320×240

    LS035T3DX01

    SHARP

    3.5"

    480×854

    LS055T1SX01

    SHARP

    5.5"

    1080×1920

    LS059T1SX01

    SHARP

    5.9"

    1080×1920

    NL6448BC26-11

    NLT

    8.4"

    640×480

    NL6448BC33-31D

    NLT

    10.4"

    640×480

    NL6448BC33-63D

    NLT

    10.4"

    640×480

    NL6448BC33-64E

    NLT

    10.4"

    640×480

    NL8048BC19-02C

    NLT

    7.0"

    800×480

    NL8060AC26-26

    NLT

    10.4"

    800×600

    NL8060BC31-28E

    NLT

    12.1"

    800×600

    NL8060BC31-42D

    NLT

    12.1"

    800×600

    P64AN2AP08

    E Ink

    6.4"

    320×234

    SC16H002

    KOE

    6.5"

    640×240

    SP14Q005

    KOE

    5.7"

    320×240

    SX25S004

    KOE

    10.0"

    800×600

    T-51440GL070H-FW-AKN

    BOE

    7.0"

    480×234

    T-51513D104JU-FW-A-AC

    BOE

    10.4"

    640×480

    TC018THEB1

    TPO

    1.8"

    558×234(dot)

    TD035TTEA3

    TPO

    3.5"

    320×240

    TX09D83VM3CEA

    KOE

    3.5"

    240×320

    TX10D122VM0BAA

    KOE

    4.0"

    480×800

    TX31D16VM2BAA

    KOE

    12.2"

    1024×310

    V201B1-L03

    INNOLUX

    20.1"

    1366×768

    AC150XP01

    Mitsubishi

    15.0"

    1024×768

    PJ035IA-02P

    INNOLUX

    3.5"

    320×480

    COM35H3M10XTC

    3.5"

    240×320

    LQ043T1DH01

    SHARP

    4.3"

    480×272

    COM35H3833XLC

    3.5"

    240×320

    LTP500GV-F01

    SAMSUNG

    5.0"

    480×640

    TX09D70VM1CEA

    KOE

    3.5"

    240×320

    LQ050W1LA0A

    SHARP

    5.0"

    1024×600

    LQ050T5DG01

    SHARP

    5.0"

    400×240

    LQ050T5DG02

    SHARP

    5.0"

    400×240

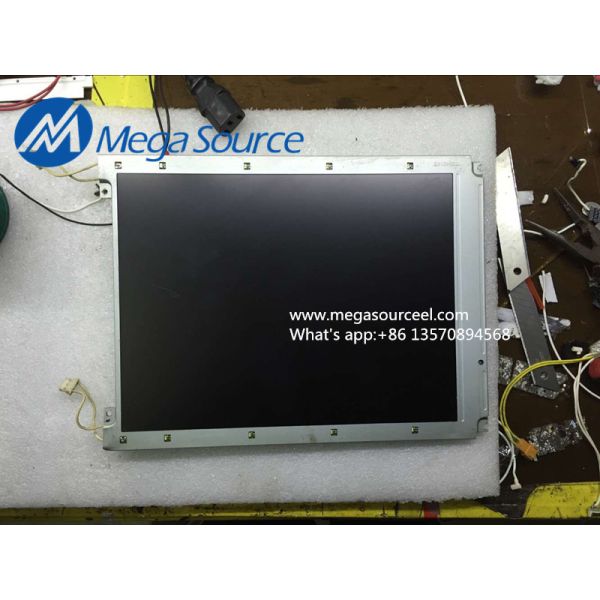

    Quality Epson 5.8inch L5S30853P00 LCD Panel for sale
