    SAMSUNG 17inch LTM170EU-L32 LCD Panel

    Ask Lasest Price
    Brand Name : SAMSUNG
    Certification : RoHS Compliant
    Model Number : LTM170EU-L32
    Price : Pls Contact sales team
    Delivery Time : stock
    Payment Terms : T/T , Paypal, Western Union ,Escrow etc.
    Supply Ability : 1000
    • Product Details
    • Company Profile

    SAMSUNG 17inch LTM170EU-L32 LCD Panel

    SAMSUNG 17inch LTM170EU-L32 LCD Panel

    Specification for LTM170EU-L32:

    LTM170EU-L32 Basic Information

    Panel Model

    LTM170EU-L32

    Panel Brand

    SAMSUNG

    Descrition

    a-Si TFT-LCD ,17.0 inch, 1280×1024

    Panel Type

    a-Si TFT-LCD

    Operating Temperature

    0 ~ 50 °C

    Storage Temperature

    -25 ~ 60 °C

    LTM170EU-L32 Mechanical Features

    Dot Resolution

    1280(RGB)×1024 (SXGA)

    Pixel Configuration

    RGB Vertical Stripe

    Pixel Density

    96 PPI

    Aspect Ratio

    5:4 (H:V)

    Form Factor

    Flat Rectangle Display

    Dot Pitch

    0.088×0.264 mm (H×V)

    Pixel Pitch

    0.264×0.264 mm (H×V)

    Surface

    Hard coating (3H)

    Active Area

    337.92×270.336 mm (H×V)

    Bezel Area

    341.6×274.0 mm (H×V)

    Outline Dimension

    358.5×296.5 mm (H×V)

    Outline Depth

    17.0±0.5 mm

    Holes & Brackets

    Side mounting holes (4-M3) on left, right bezel

    Landscape or Portrait

    Landscape type

    Touch Panel

    Without

    LTM170EU-L32 Optical Features

    Display Mode

    TN, Normally White, Transmissive

    Brightness

    300 cd/m² (Typ.)

    Contrast Ratio

    1000 : 1 (Typ.) (Transmissive)

    Display Color

    16.7M (6-bit + Hi-FRC)

    Color Gamut

    72% NTSC (CIE1931)

    Response Time

    1.3/3.7 (Typ.)(Tr/Td)

    White color Chromaticity

    Wx:0.313; Wy:0.329

    White Variation

    1.33 (Max.)(9 points)

    Sunlight Readable

    N

    LTM170EU-L32 Electronics Feature

    Vertical Frequency

    60Hz

    Reverse Scan

    No

    LTM170EU-L32 Backlight System

    Lamp Position

    Edge light type (Top and Bottom)

    Lamp Type

    CCFL

    Lamp Amount

    4 pcs

    Lamp Shape

    Straight

    Lamp Life Time

    50K(Min.) (Hours)

    Lamp Voltage

    650V (Typ.)

    Lamp Current

    3.0/6.5/7.0mA (Min./Typ./Max.)

    Lamp Operating Frequency

    40/60KHz (Min./Max.)

    Lamp Startup Voltage

    1450/1650V (Max.)(Ta=+25/0℃)

    Interface Type

    Connector

    Lamp Driver Board

    No

    LTM170EU-L32 Signal Interface

    Signal Category

    LVDS

    Signal Class

    LVDS (2 ch, 8-bit)

    Input Voltage for Panel

    5.0V (Typ.)

    Input Current for Panel

    1.0/1.2A (Typ./Max.)

    Interface Type

    Connector

    Signal Interface

    UJU - IS100-L30O-C23, Pitch:1.0 mm, Pin:30 pins

    Below is some of our other LCD panel hot offer,pls check if you need any of them:

    MT220WPM-N10

    BOE

    22.0"

    1680×1050

    TD043MGEA1

    TPO

    4.3"

    800×480

    COM35H3835XLC

    3.5"

    320×240

    LTP283QV-F01

    SAMSUNG

    2.8"

    240×320

    COM35H3M73ULC

    3.5"

    480×640

    LQ050W1LC1B

    SHARP

    5.0"

    1024×600

    COM27H2P23XLC

    2.7"

    240×320

    COM27H2M90XLC

    2.7"

    240×320

    LS035Y8DX06

    SHARP

    3.5"

    480×800

    LQ058T5AR04

    SHARP

    5.8"

    400×234

    NL2432HC22-40J

    NLT

    3.5"

    240×320

    LMS430HF28

    SAMSUNG

    4.3"

    480×272

    COM32T3M34ILX

    3.2"

    480×800

    LS010B7DH01

    SHARP

    0.99"

    128×128

    PD035QX7

    E Ink

    3.5"

    320×240

    DX08D11VM0AAA

    KOE

    3.0"

    480×800

    COM43H4M10XTC

    4.3"

    480×272

    NL4827HC19-05B

    NLT

    4.3"

    480×272

    LQ0DASA469

    SHARP

    4.7"

    720×1280

    LQ070T5DG01

    SHARP

    7.0"

    854×480

    TX09D40VM3CAA

    KOE

    3.5"

    240×320

    LQ050A3AD01

    SHARP

    5.0"

    320×234

    NL2432HC22-23B

    NLT

    3.5"

    240×320

    LS027B7DH01

    SHARP

    2.7"

    400×240

    H335VVN01.0

    AUO

    3.4"

    480×854

    COM35T3829XLC

    3.5"

    320×240

    G084SN05 V5

    AUO

    8.4"

    800×600

    TX09D40VM3CBA

    KOE

    3.5"

    240×320

    H160QVN01.0

    AUO

    1.6"

    320×320

    LT040MDT9000

    TOSHIBA

    4.0"

    480×854

    LS037V7DW03

    SHARP

    3.7"

    480×640

    M240HV01 V.D

    AUO

    24.0"

    1920×1080

    L4S00242P00

    Epson

    2.8"

    480×640

    LS037V7DD06

    SHARP

    3.7"

    480×640

    TX09D30VM1CBA

    KOE

    3.5"

    240×320

    LQ043T1DG02

    SHARP

    4.3"

    480×272

    LQ048Y3DG01

    SHARP

    4.8"

    800×480

    LQ048Y3DG02

    SHARP

    4.8"

    800×480

    LMS480JC01

    SAMSUNG

    4.8"

    1024×600

    AMS317PN01

    SAMSUNG

    3.2"

    360×640

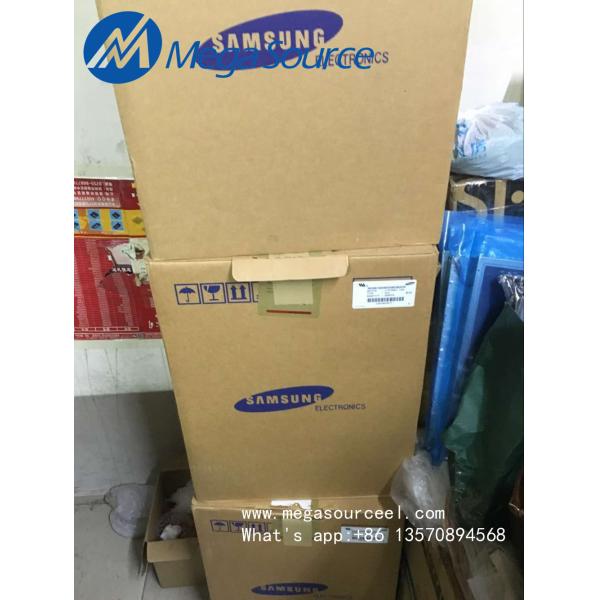

    Quality SAMSUNG 17inch LTM170EU-L32 LCD Panel for sale
