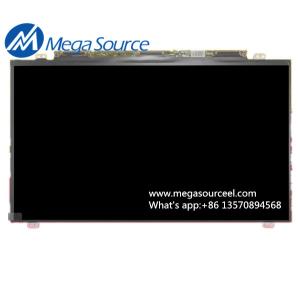

SAMSUNG 15.6inch LTN156AT24-501 LCD Panel

    Buy cheap SAMSUNG 15.6inch LTN156AT24-501 LCD Panel from wholesalers

    Buy cheap SAMSUNG 15.6inch LTN156AT24-501 LCD Panel from wholesalers
    • Buy cheap SAMSUNG 15.6inch LTN156AT24-501 LCD Panel from wholesalers

    SAMSUNG 15.6inch LTN156AT24-501 LCD Panel

    Ask Lasest Price
    Brand Name : SAMSUNG
    Certification : RoHS Compliant
    Model Number : LTN156AT24-501
    Price : Pls Contact sales team
    Delivery Time : stock
    Payment Terms : T/T , Paypal, Western Union ,Escrow etc.
    Supply Ability : 1000
    • Product Details
    • Company Profile

    SAMSUNG 15.6inch LTN156AT24-501 LCD Panel

    SAMSUNG 15.6inch LTN156AT24-501 LCD Panel

    Specification for LTN156AT24-501:

    LTN156AT24-501 Basic Information

    Panel Model

    LTN156AT24-501

    Panel Brand

    SAMSUNG

    Descrition

    a-Si TFT-LCD ,15.6 inch, 1366×768

    Panel Type

    a-Si TFT-LCD

    Operating Temperature

    0 ~ 50 °C

    Storage Temperature

    -20 ~ 60 °C

    LTN156AT24-501 Mechanical Features

    Dot Resolution

    1366(RGB)×768 (WXGA)

    Pixel Configuration

    RGB Vertical Stripe

    Pixel Density

    100 PPI

    Aspect Ratio

    16:9 (H:V)

    Form Factor

    Flat Rectangle Display

    Dot Pitch

    0.084×0.252 mm (H×V)

    Pixel Pitch

    0.252×0.252 mm (H×V)

    Surface

    Antiglare

    Active Area

    344.232×193.536 mm (H×V)

    Outline Depth

    5.5 (Max.) mm

    Shape Style

    Wedge (PCBA Bent, Depth ≥5.2mm)

    Landscape or Portrait

    Landscape type

    Touch Panel

    Without

    LTN156AT24-501 Optical Features

    Display Mode

    TN, Normally White, Transmissive

    Display Color

    262K (6-bit)

    Sunlight Readable

    N

    LTN156AT24-501 Electronics Feature

    Vertical Frequency

    60Hz

    Reverse Scan

    No

    LTN156AT24-501 Backlight System

    Lamp Position

    Edge light type

    Lamp Type

    WLED

    LTN156AT24-501 Signal Interface

    Signal Category

    LVDS

    Signal Class

    LVDS (1 ch, 6-bit)

    Interface Type

    Connector
