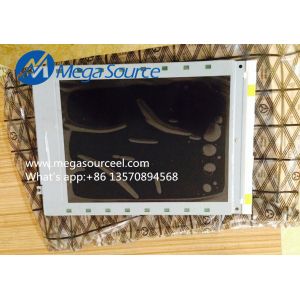

OPTREX 10.4inch T-55787GD104J-LW-ACN LCD Panel

    Buy cheap OPTREX 10.4inch T-55787GD104J-LW-ACN LCD Panel from wholesalers

    Buy cheap OPTREX 10.4inch T-55787GD104J-LW-ACN LCD Panel from wholesalers
    • Buy cheap OPTREX 10.4inch T-55787GD104J-LW-ACN LCD Panel from wholesalers

    OPTREX 10.4inch T-55787GD104J-LW-ACN LCD Panel

    Ask Lasest Price
    Brand Name : OPTREX
    Certification : RoHS Compliant
    Model Number : T-55787GD104J-LW-ACN
    Price : Pls Contact sales team
    Delivery Time : STOCK
    Payment Terms : T/T , Paypal, Western Union ,Escrow etc.
    Supply Ability : 1000
    • Product Details
    • Company Profile

    OPTREX 10.4inch T-55787GD104J-LW-ACN LCD Panel

    OPTREX 10.4inch T-55787GD104J-LW-ACN LCD Panel

    Specification for T-55787GD104J-LW-ACN:

    T-55787GD104J-LW-ACN Basic Information

    Panel Model

    T-55787GD104J-LW-ACN

    Panel Brand

    OPTREX

    Descrition

    a-Si TFT-LCD ,10.4 inch, 800×600

    Panel Type

    a-Si TFT-LCD

    Operating Temperature

    -30 ~ 80 °C

    Storage Temperature

    -30 ~ 80 °C

    Remarks

    Engineering Samples Part No: T-55787GD104J-LW-ABN

    T-55787GD104J-LW-ACN Mechanical Features

    Dot Resolution

    800(RGB)×600 (SVGA)

    Pixel Configuration

    RGB Vertical Stripe

    Pixel Density

    96 PPI

    Aspect Ratio

    4:3 (H:V)

    Form Factor

    Flat Rectangle Display

    Dot Pitch

    0.088×0.264 mm (H×V)

    Pixel Pitch

    0.264×0.264 mm (H×V)

    Weight

    535g (Max.)

    Surface

    Antiglare

    Active Area

    211.2×158.4 mm (H×V)

    Outline Dimension

    230×180.2 mm (H×V)

    Landscape or Portrait

    Landscape type

    Touch Panel

    Without

    T-55787GD104J-LW-ACN Optical Features

    Display Mode

    AWV, Normally Black, Transmissive

    Brightness

    1200 cd/m² (Typ.)

    Contrast Ratio

    1000 : 1 (Typ.) (Transmissive)

    Display Color

    16.7M (8-bit)

    Response Time

    18/12 (Typ.)(Tr/Td)

    Viewing Angle

    85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)

    Viewing Direction

    Symmetry

    White color Chromaticity

    Wx:0.324; Wy:0.327

    Sunlight Readable

    Y

    T-55787GD104J-LW-ACN Electronics Feature

    Vertical Frequency

    60Hz

    Reverse Scan

    No

    T-55787GD104J-LW-ACN Backlight System

    Lamp Position

    Edge light type

    Lamp Type

    WLED

    Lamp Amount

    8S4P

    Lamp Shape

    4 strings

    Lamp Life Time

    75K(Typ.) (Hours)

    Interface Type

    Included in panel signal interface

    Lamp Driver Board

    12.0±1.2V

    T-55787GD104J-LW-ACN Signal Interface

    Signal Category

    LVDS

    Signal Class

    LVDS (1 ch, 8-bit)

    Input Voltage for Panel

    3.3V (Typ.)

    Input Current for Panel

    250/300mA (Typ./Max.)

    Interface Type

    Connector

    Signal Interface

    JAE - FI-X30SSLA-HF, Pitch:1.0 mm, Pin:30 pins

    Below is some of our other LCD panel hot offer,pls check if you need any of them:

    KCB104VG2BA-A21

    BOE

    10.4"

    640×480

    KCS6448HSTT-X3

    BOE

    10.4"

    640×480

    LM046QB1S02

    SHARP

    4.6"

    320×240

    LM104VC1T51

    SHARP

    10.4"

    640×480

    LM104VC1T51H

    SHARP

    10.4"

    640×480

    LM230WF3-SLB2

    LG Display

    23.0"

    1920×1080

    LM230WF3-SLE1

    LG Display

    23.0"

    1920×1080

    LQ035Q1DH01

    SHARP

    3.5"

    320×240

    LQ035Q7DB02R

    SHARP

    3.5"

    240×320

    LQ035Q7DH05

    SHARP

    3.5"

    240×320

    LQ043T1DG03

    SHARP

    4.3"

    480×272

    LQ070Y3LG4A

    SHARP

    7.0"

    800×480

    LQ084V3DG02

    SHARP

    8.4"

    640×480

    LQ085Y3DG15

    SHARP

    8.5"

    800×480

    LQ104V1DG5A

    SHARP

    10.4"

    640×480

    LQ10PX21

    SHARP

    10.0"

    1024×768

    LQ121S1DG43

    SHARP

    12.1"

    800×600

    LQ121S1LG41

    SHARP

    12.1"

    800×600

    LQ121S1LG51

    SHARP

    12.1"

    800×600

    LQ121S1LG88

    SHARP

    12.1"

    800×600

    LQ150X1DWF1

    SHARP

    15.0"

    1024×768

    LQ9D340H

    SHARP

    8.4"

    640×480

    LS037V7DW01

    SHARP

    3.7"

    480×640

    LT070AC46000

    TOSHIBA

    7.0"

    800×480

    LTD104EA5S

    TOSHIBA

    10.4"

    1024×768

    LTD121EC5UG

    TOSHIBA

    12.1"

    1024×768

    LTE400WQ-F02

    SAMSUNG

    4.0"

    480×272

    LTM10C209H

    TOSHIBA

    10.4"

    640×480

    LTM10C210

    TOSHIBA

    10.4"

    640×480

    LTM10C273

    TOSHIBA

    10.4"

    800×600

    LTTD240400030-L3-TF

    3.0"

    240×400

    M201UN02 V3

    AUO

    20.1"

    1600×1200

    NL3224AC35-01

    NLT

    5.5"

    320×240

    NL3224BC35-20

    NLT

    5.5"

    320×240

    NL6448BC33-59D

    NLT

    10.4"

    640×480

    NL6448BC33-64D

    NLT

    10.4"

    640×480

    NL8060BC26-27

    NLT

    10.4"

    800×600

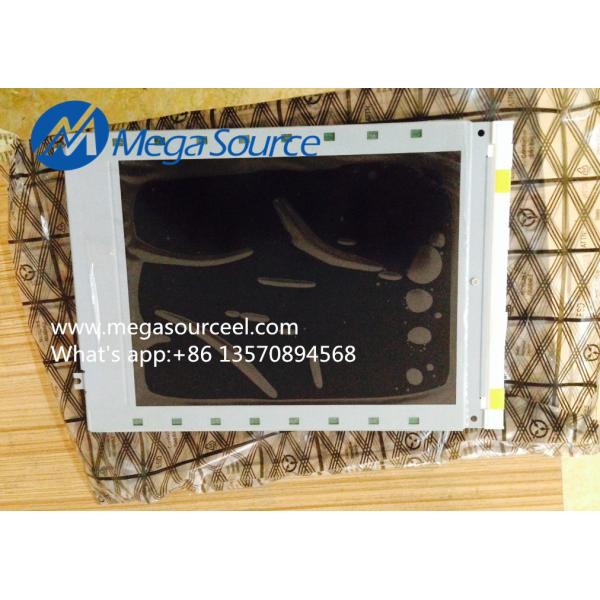

    Quality OPTREX 10.4inch T-55787GD104J-LW-ACN LCD Panel for sale
