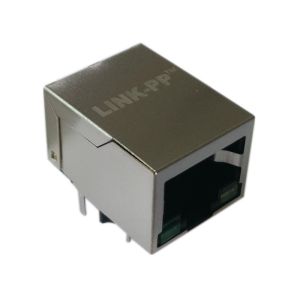

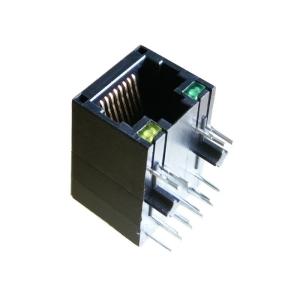

LPJG0806FBNL 1x1 RJ45 Connector With Magnetics Equivalent To HR915330A

HR915330A Low Profile RJ45 Connector Key Features:

• LINK-PP LPJG0806FBNLRJ45 Magnetic Connector Equivalent To HR915330A
• 1x1 Single Port Female RJ45 Connector
• Green and Yellow LEDs
• Without EMI Fingles
• non-PoE Function
• Low Profile Package
• LINK-PP RJ45 Jack With Integrated Magnetics
• Operating Temperature Range from 0 to 70℃

LPJG0806FBNL RJ45 Connector Drawing:

LPJG0806FBNL.pdf

ELECTRICAL SPECFICATIONS @25℃ 1. Turn Ratio(±2%): 1CT:1CT 2. Inductance OCL: 350uH MIN 3. Insertion Loss: -1.0dB MAX @ 1.0-65MHz 4. Return Loss: -20dB MIN @ 1-10MHz -16dB MIN @ 10-30MHz -12dB MIN @ 30-60MHz -10dB MIN @ 60-100MHz 5. Cross talk: -40dB MIN @ 1-30MHz -35dB MIN @ 30-60MHz -30dB MIN @ 60-100MHz 6. Common Mode Rejection: -30dB MIN @ 1-50MHz -20dB MIN @ 50-150MHz 7. Hipot Test: 1500Vrms MIN 8. Operating Temperature Range: 0℃ TO 70℃

About LINK-PP Magjaccks:

The LINK-PP Magjacck series supports various Ethernet speeds and built-in protection functions. Here’s a brief overview:

Supported Speeds:

• 10/100Base-T
• 1000Base-T (Gigabit Ethernet)
• 2.5G/5G Base-T
• 10GBase-T (10 Gigabit Ethernet)

Built-in Circuit Protection Functions:

• ESD (Electrostatic Discharge)
• EFT (Electrical Fast Transient)
• CDE (Cable Discharge Event)

PoE Support:

• IEEE 802.3af (PoE)
• IEEE 802.3at (PoE+)
• IEEE 802.3bt (PoE++)

LINK-PP is a professional designer and Manufacturer of magnetic telecom and networking components. Founded in Shenzhen in 1997 and began to develop Discrete Transformer. With over 26 years of experience in innovation and technology leadership. Our main products include RJ45 Connectors, LAN Transformers, and SFP Modules. We focus on improving product reliability and durability.

Main Production Lines

◆ 10/100/1000/10GBase-T LAN Isolation Transformer and Filter

◆ Rj45 Modular Jack With Integrated 10/100/1000/10G Magnetics
◆ Magnetic Rj45 Jack with POE/ POE+; IEEE823.3af/ IEEE802.3at
◆ LAN Transformer With POE/ POE+; IEEE823.3af/ IEEE802.3at
◆ T1/E1,T3/DS3/E3/STS-1 Interface LAN transformer
◆ ISDN,HDSL,ADSL and VDSL Transformer and splitter

◆ Optical Transceivers
