EMT Electrical Conduit And Fittings / Zinc Die Cast EMT Conduit
Connector Set-screw / 1/2"-4" Zinc Die Casting
Description:
TOPELE aluminum emt connectors are used in dry locations to bond
EMT conduit to electrical junction boxes or enclosures.Connectors
secure and terminate steel EMT to knockouts in concrete tight box
or dry location applications, TOPELE EMT aluminum connectors
provide concrete tight connections when taped and properly secured
with the included locknut, and are rated for electrical
applications above 600 volts. Their heavy gauge steel construction
maintains mechanical protection and solid grounding of the conduit
to the designated electrical junction box or enclosure.

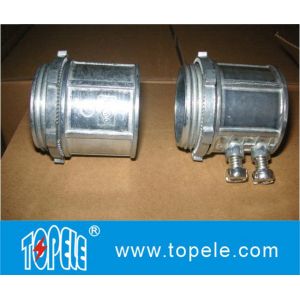

EMT Aluminum Connector
American Standard, NPT Thread
Size: 1/2" to 4"
Material: Aluminum Die Cast
Features:
• Concrete tight when taped.
• Pre-set/pre - staked set screws.
• Combination head set screws.
• Male hub threads — NPS.
• Available with insulated throat.
• Furnished with locknut.
Applications:
EMT connector: Joins steel EMT conduit to Electrical box
•Connect & effectively bond EMT conduit to steel outlet boxes, load
centers & other metal enclosures
•Available in 1/2 inch to 4 inch trade size
• Zinc Die-Cast
• Locknut included.
•For connecting EMT tube
•May be used indoors and in concrete-tight applications when taped
•Body and locknut made with die-cast zinc alloy
•Tri-Drive screw head design for use with Phillips, slotted and
square screwdrivers
•Screw thread is designed to not vibrate loose
•Reversible locknut designed to cut through protective coatings on
boxes & enclosures
•Application type : EMT
•Electrical Product Type : Standard Fitting
•Fitting type : Connector
•Indoor/Outdoor : Indoor
•Paintable/Stainable : No
•Returnable : 90-Day
•Trade Size (in.) : [1/2"] [3/4"] [1"] [1-1/4"] [1-1/2"] [2"]
Specifications:
SSCN-050A | 1/2" | Set-Screw Type |
SSCN-075A | 3/4" | Set-Screw Type |
SSCN-100A | 1" | Set-Screw Type |
SSCN-125A | 1-1/4" | Set-Screw Type |
SSCN-150A | 1-1/2" | Set-Screw Type |
SSCN-200A | 2" | Set-Screw Type |
SSCN-250A | 2-1/2" | Set-Screw Type |
SSCN-300A | 3" | Set-Screw Type |
SSCN-400A | 4" | Set-Screw Type |
Competitive Advantage:
+Quick Delivery: 30 days for one 20ft container.
+Competitive Price
+ Good Quality: ISO certificate approval
+Best Service: fast delivery, strong package, good price, timely
and effective communication
+Powerful Solution: fast and effective solution to problem
