Advanced Technology
| 1 | Efficiency | High efficient work-flow design , allows the doctors complete the daily routine inspection quickly and easily , which greatly reduces workload. |
| 2 | Intelligent | Intelligent image optimization solutions can help you carry out diagnosis and assessment of the difficult patients with more confidence. It make your operation more accurate and efficient. |
| 3 | Visualization | Portable notebook design , full touch screen control panel makes machine interaction more convenient , and it allows doctors to master visual patient information anytime and anywhere |
Technical Specification
| Monitor | 12-inch LED display |
| Control panel | 9.7-inch touch screen |
| Probe connector | 1 |
| USB port | 1 |
| HDMI output | 1 |
| LAN output | 1 |
| TGC | 8 segments |
| Gain | 0~100 dB |
| Depth | 1~23cm |
| Dynamic range adjustable | 36~102dB |
| Edge enhancement | 0~4 |
| Dynamic range adjustable | 36~102dB |
| Angle | 50%~100% |
| Power | 80%~100% |
| AQ Sonic | 0~8 |
| E Crystal | 0~8 |
| Lines Density | Low, medium, standard, high |
| Frame Average | 0~7 |
| Map | 1~16 |
| Focus position | 1~4 |
| Focus number | 1~5 |
| Brightness | ±100% |
| Applications | Abdomen, Urology, Gynecology,Obstetrics ,Multinational Thyroid, Breast, Testes, Peripheral |
| Display mode | B, 2B, 4B mode M, B/M mode Zoom B mode Compound imaging Trapezoid imaging Multiple Beam Formation Lines Density: Low, Medium, Standard High |
| Zoom | Zoom frozen 9 Steps: ×0.5, ×0.75, ×1.0, ×1.5, ×2.0, ×2.5,×3.0, ×4.0, ×6.0 |
| Memory | Cine-memory - Line Ratio B-mode (max.1024 frames) M-mode (max.1024 frames) Hard disk 32GB SSD |
| Weight | Gross weight:7.5kg (2 probes) 8.5kg (4 probes) Net weight :4.0kg,0.5kg(battery) |
| Power Requirements | Voltage: AC 100V to 240V±10% Frequency: 50HZ±1Hz; 60Hz±1Hz Rated Power: 250VA |
| Software & Accessories | Power Cable Operation Manual Hand-carry bag |
| Optional Accessories | Mobile Trolley Video Printer Ink-Jet Printer Laser Printer HDML Video Converter |
| Standard configurations | Optional |
| 3000K main unit | 6.5MHz transvaginal probe |
| 12 inch high resolution color LED | 7.5MHz linear probe |
| 1 probe connector | 5MHz micro-convex probe |
| 1pc 3.5MHz R60 convex probe | 6.5MHz rectal probe |
| 1 USB port | 6.5MHz rectal probe for vet |
| 128 images of permanent storage | printer,Trolley |
BIO- Catalogue for ultrasound scanner 3000K.pdf
" }
| Sign In | Join Free | My burrillandco.com |
|
| Ask Lasest Price | |
| Brand Name : | BIO |
| Certification : | |
| Model Number : | 3000K |
| Delivery Time : | 7 working - days since getting full payment |
| Payment Terms : | Credit card, Paypal, T/T, Western Union, MoneyGram |
| Supply Ability : | 100 units/month |

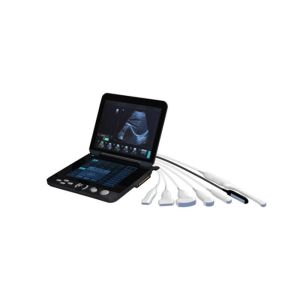

12" LED Monitor One Probe Connector Notebook Ultrasound Scanner With 9.7 Inch Touch Panel
