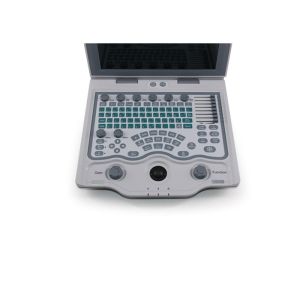

10.4 Inch Portable Color Doppler Machine Ultrasound Scanner With
High Resolution
Completely Independent Intellectual Property
Master Core Technology
1. Transmitted signal accuracy control
2. iMage:image optimization imaging technique
3. Adaptive color artifact removal technique
4. Linear probe independent angle deflection
5. I-station integral working station
6. Phase enhance harmonic
7. Accurate vessel image
8. Convenient and practical data management
Abundant measuring software
Multi-media and accessory equipments
1. Video recorder
2. I-station integral work station to finish image storage, report
form and cloud print
3. U flash disk (file management, software upgrade and one-key
storage) and DICOM port, convenient for data management and
available to removal transmission.
4. Dual-mode TV output: PAL/NTSC
Reasonable Humanization Design
1. 10.4 inch color LED full screen display,angle adjustable
2. One-key-light keyboard function for black room use
3. One button operation including one-key storage image/
review/print,etc
4. Quick look up stored image function to improve work efficiency
5. Multifunctional knob design,achieve one-key quick adjustable in
multi-mode
| Standard configuration | Optional configuration |
| Main unit:1 pc | 6.5MHz multi-frequencyMicro-Convex probe:1pc; |
| probe sockets:2 | 7.5MHz multi-frequency high linear probe:1pc; |
| 3.5MHz convex probe:1pc | Video printer |
| CD: 1pc | Trolley |
| Reticle: 1pc | |
| Specifications |
| Monitor | 10.4 inch color LED monitor |
| Operation Mode | 4B; M,B/M; CFM; PDI; PW; THI |
| Gray / Color scale | 256 |
| Adapter rating | 100-240V~1.2-6.0A |
| Power Frequency | 50-60Hz |
| Output of adapter | DC12.8V 3.0A |
| Power consumption | ≤100VA |
| Main unit size | approx. 256*150*326(mm, L*M*H) |
| Weight of main unit | approx. 4.5kg(excluding accessories) |
| Report | OB, Cardio, Urological report |
| U-disk capacity | 16G |
| Dual-mode TV output | PAL/NTSC |
| Probe connector | 2 |
| Language | English/Chinese |
Probe Parameter
| 3.5MHz R60 multi-frequency convex probe |
| Scan angle | 60° |
| Frequency range | 2.0MHz-5.0MHz |
| Frequency conversion options | 2.02.53.55.0MHz |
| Max-scan depth | ≥190mm |
| Blind area | ≤5mm |
| Resolution | Axial resolution ≤1mm, Lateral resolution ≤2mm |
| Geometrical position accuracy | Horizontal ≤5%, Portrait ≤5% |
| 7.5MHz L40 multi-frequency linear probe |
| Frequency range | 5.0MHz-9.0MHz |
| Frequency conversion options | 5.06.57.59.0MHz |
| Max-scan depth | ≥60mm |
| Blind area | ≤3mm |
| Resolution | Axial resolution ≤0.5mm, Lateral resolution ≤1mm |
| Geometrical position accuracy | Horizontal ≤5%, Portrait ≤5% |
| 6.5MHz R11 multi-frequency trans-vaginal probe |
| Scan angle | 135° |
| Frequency range | 4.5MHz-9.0MHz |
| Frequency conversion options | 4.5/5.5/6.5/7.5 |
| Max-scan depth | ≥60mm |
| Blind area | ≤4mm |
| Resolution | Axial resolution ≤1mm, Lateral resolution ≤1mm |
| Geometrical position accuracy | Horizontal ≤10%, Portrait ≤5% |
