    SUS 304 Steel UVB Accelerated Weathering Testing Chamber For Sunlight Resistant Test

    Ask Lasest Price
    Brand Name : HAIDA
    Certification : ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
    Model Number : HD-E802-1
    Price : Negotiable
    Delivery Time : 20 days after order confirmed
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
    Supply Ability : 300 Sets per Month Haida
    • Product Details
    • Company Profile

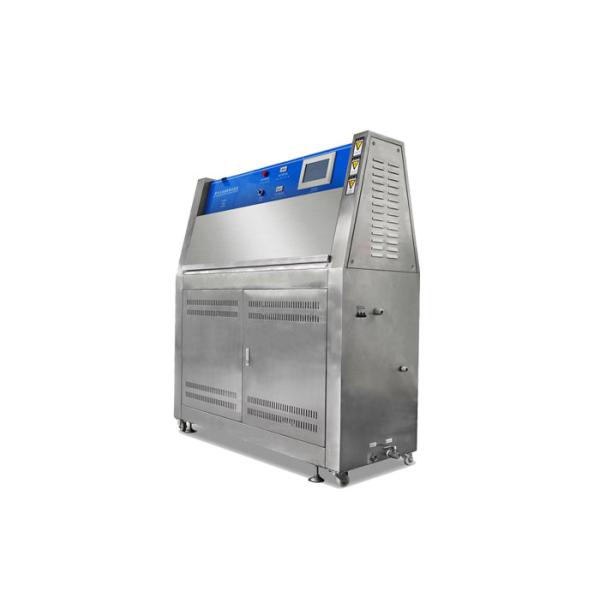

    SUS 304 Steel UVB Accelerated Weathering Testing Chamber For Sunlight Resistant Test

    SUS 304 Steel UVB Accelerated Weathering Testing Chamber For Sunlight Resistant Test


    Product description:

    SUS 304 Steel UVB Accelerated Weathering Testing Chamber is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources. A variety of industrial products can make the reliability test, and SUS 304 Steel UVB Accelerated Weathering Testing Chambers can simulate the product in the sun, rain, humidity and dew conditions, including damage caused by bleaching, color, brightness down, powder, crack, blur, brittle, intensity decreased and oxidation.


    Meet the ISO, ASTM, DIN, JIS, SAE, BS, ANSI, GM, U.S.GOVT standards and national standards.


    Application industry wide range, such as: paint ink paint, resin, plastic, printing and packaging, adhesives, automotive, motorcycle industry, cosmetics, metal, electronics, electroplating, medicine and so on.


    Chamber Structure:

    The inner bladder of the chamber is made of imported high-class stainless steel plate while the outer bladder is made of SUS 304 steel plate.

    The heating mode adopts inner bladder trough type heating with its rapid temperature rise and even temperature distribution.


    Control System:

    Adopts black aluminum plate to connect temperature sensor and adopts black board temperature meter to control heating so as to ensure more stable temperature.
    The radiometer probe is fixed so as to avoid the frequent installation and disassembly.
    The radiation quantity adopts the special UV irradiatometer with high-precision display and measurement.
    The radiation intensity is not more than 50W/m2.
    The illumination and condensation can be controlled independently or alternating and circularly.


    The main technical parameters:

    Studio size (W×D×H)1140mm×400 mm×500 mm
    Overall size (W×D×H)1340mm×530 mm×1400 mm
    Center distance of the lamp70mm
    Wavelength rangeuv-a wavelength range of 315 to 400nm, the peak at about 340nm
    Radiation intensitywithin 1W/m2/340nm
    Temperature resolution0.1℃
    Light temperature range50℃~70℃ / temperature tolerance is ±3℃
    Condensation temperature range40℃~60℃ / temperature tolerance of ±3℃
    Measuring range of blackboard thermometer30~80℃ / tolerance is ±1℃
    Temperature control modePID self - tuning temperature control mode
    Humidity rangeabout 45%~70% r.h.
    Water tank requirementswater depth not more than 50mm, and with an automatic water supply controller
    Standard specimen size75×150mm 48pcs
    Recommended operating environment5~35℃, 40%~85%R•H, 300mm away from the wall
    Voltage220V±5%, single-phase three-wire, 50Hz, 10A, required 15A leakage switch
    Lamp selectiondomestic huaqiang lamp/American Atlecs lamp
    The distance between the specimen and the nearest parallel surface of the lamp surface is about 50mm±2mm

    Test Specimen Mounting:

    The standard test specimen holder accommodates 2 panels 75×150mm. The test panels are actual the side wall of the chamber. To properly seal the chamber, it is important to have every panel holder filled with specimens or blank panels and to have panel holders in place.

    ection institutions and academic fields.
