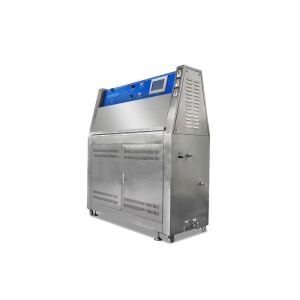

    304 Stainless Steel Environmental Test Chambers , Industrial UV Lamp Aging Tester

    Ask Lasest Price
    Brand Name : HAIDA
    Certification : ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
    Model Number : HD-E802-2
    Price : Negotiable
    Delivery Time : 20 days after order confirmed
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
    Supply Ability : 300 Sets per Month Haida
    • Product Details
    • Company Profile

    304 Stainless Steel Environmental Test Chambers , Industrial UV Lamp Aging Tester

    304 Stainless Steel Environmental Test Chambers , Industrial UV Lamp Aging Tester


    1. Product description
    UV lamp aging testing chamber is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources. A variety of industrial products can make the reliability test, and this product can simulate the product in the sun, rain, humidity and dew conditions, including damage caused by bleaching, color, brightness down, powder, crack, blur, brittle, intensity decreased and oxidation.

    2. Technical parameters:
    Accelerated Weather UV test machine

    Studio size (W×D×H)1140mm×400mm×500mm
    Overall size (W×D×H)1340mm×530 mm×1400 mm
    Center distance of the lamp70mm
    Wavelength rangeuv-a wavelength range of 315 to 400nm, the peak at about 340nm
    Radiation intensitywithin 1W/m2/340nm
    Temperature resolution0.1℃
    Light temperature range50℃~70℃ / temperature tolerance is ±3℃
    Condensation temperature range40℃~60℃ / temperature tolerance of ±3℃
    Measuring range of blackboard thermometer30~80℃ / tolerance is ±1℃
    Temperature control modePID self - tuning temperature control mode
    Humidity rangeabout 45%~70% r.h.
    Water tank requirementswater depth not more than 50mm, and with an automatic water supply controller
    Standard specimen size75×150mm 48pcs
    Recommended operating environment5~35℃, 40%~85%R•H, 300mm away from the wall
    Voltage220V±5%, single-phase three-wire, 50Hz, 10A, required 15A leakage switch
    Lamp selectiondomestic huaqiang lamp/American Atlecs lamp
    The distance between the specimen and the nearest parallel surface of the lamp surface is about 50mm±2mm


    3. Chamber Structure:
    Accelerated Weather UV test machine
    The inner bladder of the chamber is made of imported high-class stainless steel plate while the outer bladder is made of SUS 304 steel plate.
    The heating mode adopts inner bladder trough type heating with its rapid temperature rise and even temperature distribution.

    4. Control System:
    Adopts black aluminum plate to connect temperature sensor and adopts black board temperature meter to control heating so as to ensure more stable temperature.
    The radiometer probe is fixed so as to avoid the frequent installation and disassembly.
    The radiation quantity adopts the special UV irradiatometer with high-precision display and measurement.
    The radiation intensity is not more than 50W/m2.
    The illumination and condensation can be controlled independently or alternating and circularly.


    5. Test Specimen Mounting:
    Accelerated Weather UV test machine
    The standard test specimen holder accommodates 2 panels 75×150mm. The test panels are actual the side wall of the chamber. To properly seal the chamber, it is important to have every panel holder filled with specimens or blank panels and to have panel holders in place.

    6. Design criteria:
    Accelerated Weather UV test machine
    (1) ASTM D4587: Standard Practice for Fluorescent UV-Condensation Exposures of Paint and Related Coatings
    (2) ASTM D4799: Standard Practice for Accelerated Weathering Test Conditions and Procedures for Bituminous Materials (Fluorescent UV, Water Spray, and Condensation Method)
    (3) ISO 4892-1: Plastics – Methods of Exposure to Laboratory Light Sources – Part 1: General guidance
    (4) ISO 4892-3: Plastics - Methods of Exposure to Laboratory Light Sources - Part 3: Fluorescent UV Lamps
    (5) ASTM D4329: Standard Practice for Fluorescent UV Exposure of Plastics
    (6) AATCC TM186: Weather Resistance: UV Light and Moisture Exposure
    (7) ASTM D5208: Standard Practice for Fluorescent Ultraviolet (UV) Exposure of Photodegradable Plastics
    (8) IEC 61345: UV Test for Photovaltalic (PV) Modules


    UV Accelerated Weathering Tester_pdf.pdf
