High Accuracy Paper Carton Compression Testing Equipments With1
Precise Load Cells
Specifications
Paper Carton Compression Testing Instrument With 1 Precise Load
Cells
1.High quality
2.2 years warranty
3.Up to TAPPI-T804,
4.Reasonable price
1.About the machine:

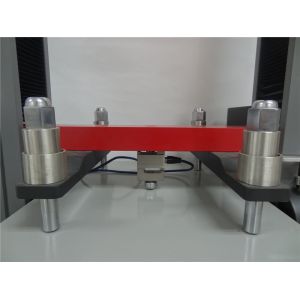

Paper Carton Compression Testing Instrument With 1 Precise Load
Cells is used for measuring the pressure strength of cartons,
containers, etc. for inspecting the pressure-resistance and
strike-endurance of packing materials during transportation or
carry. It's equipped with 1 precise Load Cells for detection. The
testing results are displayed by computer.
2.Design criteria:
TAPPI-T804,JIS-20212,GB4857.3.4, ASTM-D642, QB/T1048, BS EN ISO
12048, GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3,GB/T4857.4
3.Specifications:
Paper Carton Compression Testing Instrument With 4 Precise Load
Cells
Model | HD-A501-600 |
Unit (switchable) | Kg, Lb, N |
Capacity (optional) | 1T |
Load Resolution | 1/100,000 |
Load Accuracy | ≤0.5% |
Test Space (L×W×H) | 600×800×800mm |
Speed of Compression | 10 ± 3 mm/min |
Report Items | Serial number, Peak value, Average value, Designated holding pressure value; all memorable |
Structure | AC Frequency Conversion Motor ( Taiwan); |
Dimension (L×W×H) | 2370×1500×2100mm (can be custom made) |
Power | 1ø, 220v/ 50Hz |
Weight | Approx. 850kg |
Safety Devices | Overload protection, overvoltage protection & limited position protection device |
Standard | TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642 |
4.Features
With three languages in Simplified Chinese, Traditional Chinese and
English, the software interface can be switched easily;
Adopting windows platform, and all the parameter settings can be
processed in the dialog box, and it operates easily;
The pattern of Test reports can be self-designated; test data can
be displayed directly in the main screen;
Choosing translational, comparative mode at the same time to make a
number of curve data comparison;
With a variety of measurement units, Measure In Imperial & Metric
are switchable;
With self-return & auto-correction function;
With automatic magnification function, in order to achieve the most
appropriate size of the graphics;
With the user-defined Test methods; with experimental data analysis
function;
Paper Carton Compression Testing Instrument With 4 Precise Load
Cells can do test of compression, bending, pressure holding &
fatigue.
With high precision and accuracy and reasonable price, it can test
the crush instantaneously and stop automatically.
5.Company Services:
All Haida employees adhere to the " Quality comes from precision,
quality creates the future " business philosophy, serve each client actively and conscientiously in order to satisfy
Haida equipment brand consumers' needs.
The certification
ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SMC,
CMC, CPA, CE,CMA,IMC
![]() |
