    Hi-speed Screw Engraver

    Ask Lasest Price
    Brand Name : chinacoal
    Certification : ISO9001,CE
    Delivery Time : 7 days for ready goods
    Payment Terms : TT,LC,Paypal,Western Union
    Supply Ability : 3000 sets/month
    • Product Details
    • Company Profile

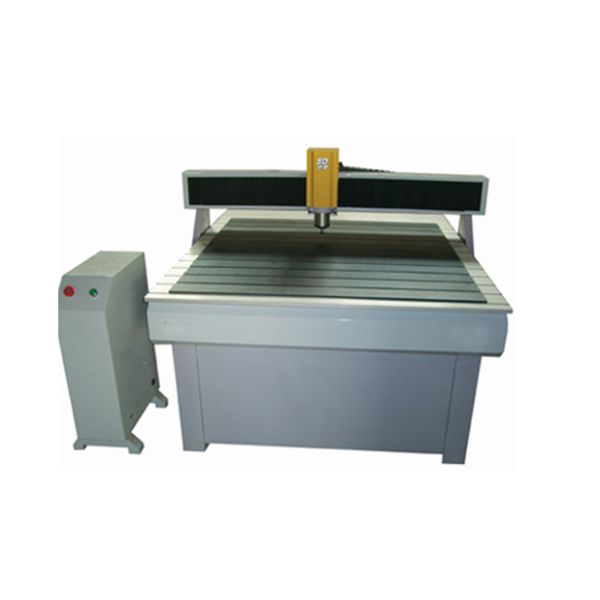

    Hi-speed Screw Engraver

    Standard features:

    The CNC router adopts the mode of saving the intermittence.It adopts the imported lineau guiding track.so it has the high precision.its life can reach 2200 times longer than the ordinary track.

    It adopts the imported driver and increases the speed of machine more than 2 meters and the perfor-mance is more stable.

    X-ax adopts the dustproof structure.lt ensures the long-term running function of the machine and this is a great change than the primary machine.

    Performance in continuing engraving after point breaks and blade breaks.hold more than 9 points.Engrave at discretion.

    Goodcompatibility.compatiblesoftwareCAD/CAM:suchastype3,Artcarm,castmate,wentai, coredraw, etc.it can manufancy embossment,shadow engrave and 3D arts.

    High power frequency water-cooling main spindle can cut into 20-30mm organic glass for one time. it is rsed for advertising,mould,gift,architecture,furniture mould and so on.

    Technical Specifications

    Model Performance parameter

    1212

    1218

    1224

    X,Yworking area

    1200×1200mm

    1200×1800mm

    1200×2400mm

    Z working area

    >100mm

    >100mm

    >100mm

    Table size

    1340×1420mm

    1340×2020mm

    1340×2680mm

    Max.speed

    5m-8m/min

    6m-8m/min

    6m-8.8m/min

    Max.working speed

    2m-3m/min

    3m-3.5m/min

    3m-3.5m/min

    Working delicacy

    0.005mm

    0.005mm

    0.005mm

    Repositioning Accuracy

    0.05mm

    0.05mm

    0.05mm

    Feeding height

    110m

    110m

    110m

    Command

    Gcode*.u00*.mng*.plt

    Gcode*.u00*.mng*.plt

    Gcode*.u00*.mng*.plt

    Surroundingsforsoftware

    Windows98/2000/xp

    Windows98/2000/xp

    Windows98/2000/xp

    Power(not include the spindle)

    400W

    450W

    550W

    Power

    AC220V/50Hz

    AC220V/50Hz

    AC220V/50Hz

    Main axle power rate

    1.5/2.2KW

    1.5/2.2KW

    1.5/2.2KW

    Mainaxlerotating speed

    0-24000rpm/min

    0-24000rpm/min

    0-24000rpm/min

    Word Mode

    Stepper

    Stepper

    Stepper
