Autel Maxivideo MV208 Digital Videoscope with 5.5mm Diameter Imager
Head Inspection Camera
Digital Inspection Videoscope MV208 5.5mm not only features a 2.4" full color LCD screen, auto focus and
viewing capacity as close as 1" with crystal clear output, but also
offers the capability to stream digital video directly to a PC. The
Multipurpose Videoscope is an economical solution to inspect
machinery, facilities and infrastructure in the safest, quickest
and most cost-effective manner possible.
MV208 Features:
Records and plays back still images and video clips
2.4 " high resolution full color LCD display (320x240)
Easy-to-use, multi-language interface
Wide camera angle for images with 640x480 resolution
With optional removable Micro SD cards, saves images and videos to
take with anywhere
On-screen horizontal/vertical reverse
5x digital zoom for increased viewing
Mini USB connector for uploading images and videos to a computer
Narrow probe diameter available in either 8.5mm(0.33") or
5.5mm(0.22") and fits most spark plug holes
White LED to illuminate the inspection area, with illumination
control
Views objects as close as 1"
Oil and scratch resistant tempered glass lens
1M (39.4") semi-rigid, but flexible watertight shaft
4 x AA batteries
Ergonomic and durable tool housing
One-year limited warranty
MV208 Specifications:
Recommended use Indoor
Optimal viewing Distance 1" to 14" (2.5cm to 35.6cm) with 8.5mm
diameter imager head 3/8" to 12" (0.95cm to 30cm) with 5.5mm
diameter imager head
Image capture JPG images (640x480); AVI videos (320 x 240)
Screen type display 2.4" TFT LCD
Display resolution 320 x 240
Power supply 4xAA alkaline battery(1.5V)
Tested battery life 3-4 hours of continuous use
Recording medium Micro SD card (Micro SD card is optional and not
included)
Imager head 18.5mm (0.33") is standard and 5.5mm (0.22") is
optional.
Waterproof Imager head and cable to 3m (10')
Additonal ports USB, video out (TV-out) port
Operating temp. Main unit: 32°F to 113°F (0°C to 45°C); Cable: 14°F
to 176°F (-10°C to 80°C)
Storage temp. -4°F to 158°F (-20°C to 70°C)
Video output Video output
TV out NTSC, PAL
Package including:
1pc x Maxi Video MV208
1pc x Imager head and cable
1pc x USB Cable
1pc x Blow Molded est
1pc x Video out-cable(TV-out cable)
1pc x User's manual

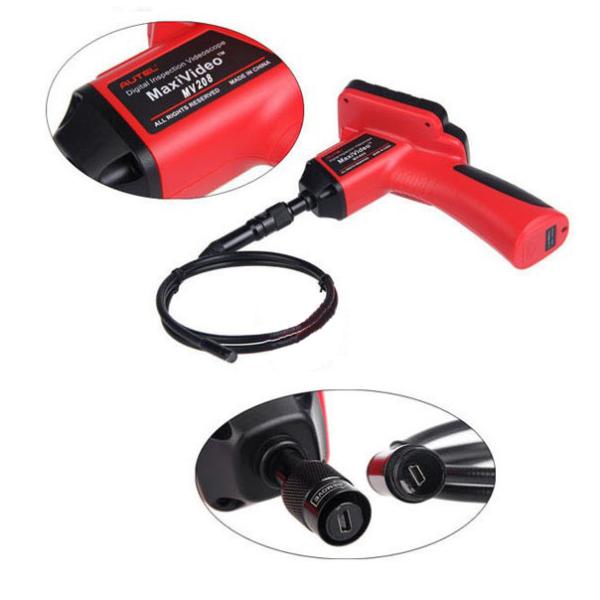

Autel Digital Inspection Videoscope MV208 5.5mm related pictures:
