Quick Detail:
MODEL | Name | OEM | Max Speed | Application | Machine |
D1524 | AIR BEARING | Westwind | 125,000 rpm | PCB drilling | CNC |
Description:

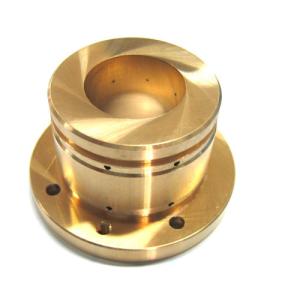

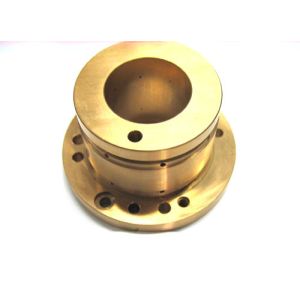

D1600 Westwind Air Bearings Of PCB Drilling
Front bearing , rear bearing and thrust bearing (outer thrust
plate) with high precision , high quality , is using for Westwind
D1524 spindle . The spindle is suitable for PCB drilling in the CNC
machine . 125,000rpm high speed optimizes the spindle performance ,
to produce high precision hole , or make sure the router edge is
fine grade .
Type : Front Bearing , rear bearing , thrust bearing (outer thrust
plate)
Process : Lathe or cutting , milling , grinding , boring ,
inspection , etc.
What’s air bearing ?
An air bearing is a non-contacting system where a gas film
(typically air)
acts as the lubricant that separates the two surfaces in relative
motion.
Why use air bearing?
There are benefits for air bearing, as follows:
l Greater precision
l High speed
l Increased tool life
l Improved surface finish
l Long bearing life
l Low thermal growth
l Lack of maintenance
l Large load capacity
l Reduced vibration Cleanliness
Specifications:
AIR BEARING LIST FOR PCB SPINDLE |
MODEL | SPEED (RPM) | APPLICABLE TO |
M320-24 | 80K | PCB drilling or routing |
M320-64C | 80K | PCB drilling or routing |
ABWR80 | 80K | PCB drilling |
ABW110 | 110K | PCB drilling |
D1331 | 125K | PCB drilling |
H912B | 125K | PCB drilling |
D1201-21 | 125K | PCB drilling |
D1524 | 125K | PCB drilling |
H501A(D1264-07) | 125K | PCB drilling |
H512A(D1600-01) | 125K | PCB drilling |
D1531-09 | 150K | PCB drilling |
H516D(D1722-03) | 160K | PCB drilling |
H916B | 160K | PCB drilling |
H916C | 160K | PCB drilling |
D1769-03 | 160K | PCB drilling |
D1686 | 180K | PCB drilling |
D1780-01 | 180K | PCB drilling |
D1787-07A | 200K | PCB drilling |
H920B | 200K | PCB drilling |
H920A | 200K | PCB drilling |
H920E1 | 200K | PCB drilling |
D1822-09 | 200K | PCB drilling |
D1787-01 | 200K | PCB drilling |
UH30AL | 300K | PCB drilling |
More than above models can offered please contact us for details. |
Communication with Customers
Cus. : Hi , do you have parts for D1524 ?
KLKJ : Yes .
Cus. : OK , I like some bearings, price ?
KLKJ : How many do you need ?
Cus. : One for each .
KLKJ : OK , I email you .
Cus. : Great .
KLKJ : Thank you .
