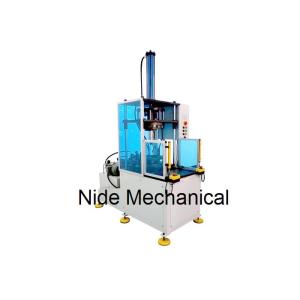

    Enter And Exit Station Stator Winding Forming and shping Machine With PLC Control

    Ask Lasest Price
    Brand Name : Nide
    Certification : CE
    Model Number : Z3XJ3-300-300FC
    Price : Negotiable
    Delivery Time : 35 working days
    Payment Terms : T/T, L/C
    Supply Ability : 100set/year
    • Product Details
    • Company Profile

    Enter And Exit Station Stator Winding Forming and shping Machine With PLC Control

    Enter And Exit Station Stator Winding final Forming Machine With PLC Control


    Quick Detail:

    1. This Enter And Exit Station Stator Winding final Forming Machine is used for stator winding forming.
    2. The stator winding forming mahicne is very Easy operation and fast tooling change process.
    3. The motor coil forming machine can be designed as per customer's requirements.
    4. The Enter And Exit Station Stator Winding final Forming Machine is much convenient and safe for loading and unlaoding stator.

    Applications:

    The Enter And Exit Station Stator Winding Forming Machine is used for stator which meet the specification of below.



    Technical parameter:

    Stator I.D

    50~130mm

    Stator O.D

    ≤190mm

    Stack heigh

    20~160mm

    Displacement of cylinder

    20F

    Power supply

    380V/50/60Hz 3.7 5Kw

    Weight

    1500Kg

    Dimension

    1950*1100*2500mm


    Description:

    Enter and Exit Station coil Forming Machine is used for stator winding forming, it is mainly driven by the hydraulic system, controlled by industrial PLC. 5 pieces individual cylinder execute external wrapping, internal expansion, overhanging end forming. It is of fast tooling change and extensive compatiblity property. The enter and exit station is much convenient and safe for loading and unlaoding stator.


    Regular maintenance

    Regularly check if there is water in the filter. If yes, discharge the water.

    Regularly check if there is sufficient oil in the atomized lubricator. If not, replenish it.

    Regularly check the lubricating condition of guide mechanism, replenish if necessary.

    Check and clean up the electrical cabinet once every three months.

    Check solenoid valve screws and pipe connectors once every 3 months.

    Check filter once every 2 months.


    Competitive advantages:

    Variety of application, easy operation.

    We have Overseas Service Center.

    It is suitable for rotor or stator with different model number and dimension.

    The operation and tooling change process is easy.

    We could customize machine for our customer as per their requirement.

    We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.

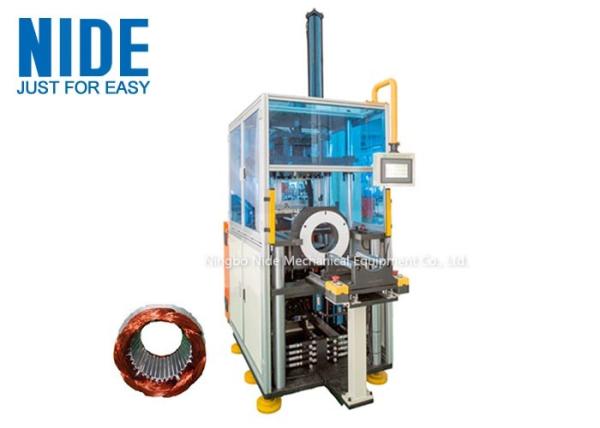

    Stator forming machine process

    stator forming machine
