    High precision Armature Automatic Dynamic Balancing Equipment Machine With PLC control

    Ask Lasest Price
    Brand Name : Nide
    Certification : CE
    Model Number : ND-XSR-5BL-III
    Price : Negotiable
    Delivery Time : 60 working days
    Payment Terms : T/T, L/C
    Supply Ability : 300 set per year
    • Product Details
    • Company Profile

    High precision Armature Automatic Dynamic Balancing Equipment Machine With PLC control


    High precision Armature Automatic Dynamic Balancing Equipment Machine With PLC control


    Quick Detail:

    1. there are 5 working stations
    2. double cutter, equipped with production line.
    3. High efficiency and precision.
    4. PLC controlled, all the data can be set on the touch screen.
    5.Cutting depth and length can be controlled.
    6. Mechanical arm

    Description:

    For this type of Five station Armature Balancing Machine, armature does not need to mark, directly put on the conveyor, there are 5 working stations: loading and unloading station, initial measuring station, left side cutting station, right side cutting station and remeasuring station. High efficiency and precision.PLC controlled, all the data can be set on the touch screen.


    Technical Parameter

    Item

    Specification

    Model

    Five stations(double cutter, equipped with production line, ND-XSR-5BL-III)

    Applicable armaturesize

    Armature weight below 1.6Kg;

    Armature lamination thickness:15-60mm

    Armature diameter:Ф40-60mm(IIItype)

    Balancing speed

    1000—2200RPM

    Cutting method

    R type cutter;Cutting depth and length can be controlled.

    Power source

    AC380V

    Air source

    0.4~0.6Mpa

    Initial unbalancevalue

    Accordingto armature radius and cutting depth, for ∮40mmarmature, each cutting position≤500mg.

    III type machine working pitch time

    10S (Initialmeasuring, one time each for left and right side cutting, remeasuring.)

    Residual unbalancing value

    Better than national standard 6.3 grade

    Dimension: L*W*H

    2200X 1500 X 1800 mm(includingproduction line)

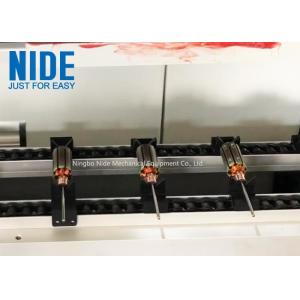

    Picture show

    armature balancing machine

    automatic rotor balancing machine


    The electric motor armature balancing machine video


    automatic motor rotor balancing machine
