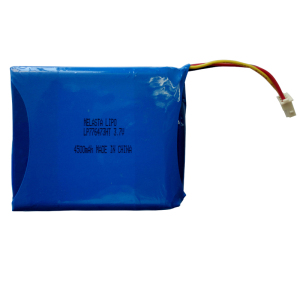

Anti-high-temperature Li-polymer battery packs for solar GPS
Battery model: 3.7V LP776474HT
1. Capacity: 4500mAh
2. Nominal Voltage: 3.7V
3. Voltage of Discharge: 3.0V
4. Charging Voltage: 4.2 ± 0.03V
5. Internal Impedance: ≤ 200mΩ
6. Discharge temperature: 0~ 80 Celsius degree
7. Charge temperature: 0~ 60 Celsius degree
8. Peak discharge current: 4.5AMPS
9. Connector and wire: 5264-3Y(Boyu brand) plug with length of 40mm
wire: Pin 1 =negative pole, pin 2=positive pole, pin 3=
NTC(temperature protection)
10. Max dimensions of battery pack: 8.0mmx65mmx75mm
performance:
The solder iron should be temperature controlled and ESD safe;
Soldering temperature should not exceed 350° C;
Soldering time should not be longer than 3s;
Soldering times should not exceed 5 times, Keep battery tab cold
down before next time Soldering;
Directly heat cell body is strictly prohibited, Battery may be
damaged by heat above Approx. 90° C
Notice for Designing Battery Pack
7.1 Pack toughness
Battery pack should have sufficient strength and the LIP cell
inside should be protected from Mechanical shocks.
7.2 Cell fixing
The LIP cell should be fixed to the battery pack by its large
surface area. No cell movement in the battery pack should be
allowed.
7.3 Inside design
No sharp edge components should be insides the pack containing the
LIP cell.
7.4 Tab connection
Ultrasonic welding or spot welding is recommended for LIP tab
connection method.
Battery pack should be designed that shear force are not applied to
the LIP tabs.
If apply manual solder method to connect tab with PCM, below notice
is very important to Ensure battery
