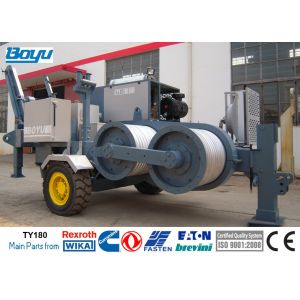

19t Overhead Tension Stringing Equipment Hydraulic Puller with
Cummins Diesel Engine
Quick details:
- High Voltage Tansmission Line Stringing Equipment
- Hydraulic Pulling machine
- Main pump and motor: German-Rexroth
- Max pull: 190kN-19Tons
- Tail bracket hoisting motor: American-Eton
- Diesel: Cummins 325hp
- Max rope diameter: 28mm
- Max reel size: 1400mm
- BOYU Brand
Description
This kind of machine allows for the tension stringing of 4-bundle
conductor of 630mm2 and below in mountainous and hilly areas, and
of 4-bundle conductor of 720mm2 and below in flat lands; besides,
it can be used for traction stringing of OPGW or ADSS optical cable
and 500kV traction stringing in various terrains. suitable for use at altitudes up to 1500 meters above sea level.
Performance
- Max intermittent pull: 190kN
- Max continuous pull: 180kN
- Speed at max pull: 2.5km/h
- Max speed: 6km/h
- Pull at max speed: 75kN
Main configuration
- Engine: Cummins
- Main pump: German-Rexroth
- Main motor speed reducer: German-Rexroth
- Tail bracket hoisting motor: American-Eton
- Hydraulic meter: German
- Operating handle: German Rexroth
Characteristics
- Bull-wheel diameter: 750mm
- Groove number: 10
- Max rope diameter : 28mm
- Max diameter of coupling: 100mm
- Electric system: 24V
- Max diameter of rope reel: 1400mm
- Total weight: 6700kg
- Overall dimension (length*width*height): 5000x2300x2500mm
Engine
- Diesel 325hp Euro III, 4-stroke cycle, turbo-charged
- Cooling system liquid
- Electrical system 24V
Hydraulic Transmission
Closed hydraulic circuit for step less speed variation in both
rotating directions. This machine is provided with a pull
pro-setting system that maintains the pre-set pulling value (also
when the speed is reduced to "0") by automatically adjusting the
operation speed according to the friction and unexpected loads
which may occur.
Configuration
- Hydraulic dynamometer with set-point and automatic control of
maximum pull
- Hydraulic oil cooling system
- Control instruments for hydraulic system and diesel engine
- On board reel winder with automatic level wind, suitable for
standard reel mod. 1100 and 1400
- Hydraulic front stabilizer
- Grounding connection point
Additional Devices
- Lighting system for the trailer
- Hydraulic rope clamp for reel change(extra charge)
- Swivel guide rope roller
- Trailer for towing at max speed of 30 km/h
- Extra shaft
- Digital speed and meter counter
Sketch
More picture
Company Introduction
BOYU, We are located in beautiful and rich city: Yixing city. We
are a High-tech enterprise in Jiangsu Province, with convenient
transportation access. All of our products comply with
international quality standards and are greatly appreciated in a
variety of different markets throughout the world.
1. Main configurations of our machine are from Germany and USA
Engine: American Cummins
Main pump: German Rexroth
Main motor& speed reducer: German Rexroth
Tail bracket hoisting motor: American Eton
Hydraulic meter: German
Operate handle: Rexroth
2. Our company was founded in 1995, having 27 years rich
experience in this field. Our product sells in distant markets:
Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc.
Our product is also very popular in china.
3. BOYU have one year quality guarantee, if internal components
go wrong within one year, we will change another for free.
4. We can supply the specific components to the buyers with cost
price after warranty period.
19t Overhead Tension Stringing Equipment Hydraulic Puller with
Cummins Diesel Engine
TY180 Hydraulic Puller The machine allows for the tension stringing of 4-bundle conductor
of 630mm2 and below in mountainous and hilly areas, and of 4-bundle
conductor of 720mm2 and below in flat lands; besides, it can be used for traction
stringing of OPGW or ADSS optical cable and 500kV traction
stringing in various terrains. suitable for use at altitudes up to 1500 meters above sea level. |
Characteristics Bull-wheel diameter: 750mm Groove number: 10 Max rope diameter : 28mm Max diameter of coupling: 100mm Electric system: 24V Max diameter of rope reel: 1400mm Total weight: 6700kg Overall dimension (length*width*height): 5000x2300x2500mm | Performance Max intermittent pull: 190kN Max continuous pull: 180kN Speed at max pull: 2.5km/h Max speed: 6km/h Pull at max speed: 75kN |
Engine Diesel 325hp Cooling system liquid Electrical system 24V |
Main configuration Engine: Cummins hydraulic pump: German Rexroth Main motor: German Rexroth speed reducer: German Rexroth Tail bracket hoisting motor: American Eton Hydraulic meter: German Operating handle: German Rexroth | Hydraulic Transmission Closed hydraulic circuit for step less speed variation in both
rotating directions. This machine is provided with a pull
pro-setting system that maintains the pre-set pulling value (also
when the speed is reduced to "0") by automatically adjusting the
operation speed according to the friction and unexpected loads
which may occur. |
Configuration Hydraulic dynamometer with set-point and automatic control of
maximum pull Hydraulic oil cooling system Control instruments for hydraulic system and diesel engine On board reel winder with automatic level wind, suitable for
standard reel mod. 1100 and 1400 Hydraulic front stabilizer Grounding connection point | Additional Devices Lighting system for the trailer Hydraulic rope clamp for reel change Swivel guide rope roller Trailer for towing at max speed of 30 km/h Extra shaft Digital speed and meter counter (extra charge) |
