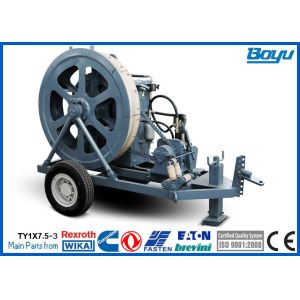

7.5kN ADSS OPGN Line Tension Stringing Equipment Max Optical Fiber
Cable diameter 21mm Cable Stringing Equipment
Quick details
- 1. Speed reducer: German Rexroth
- 2. Hydraulic meter: German
- 3. HydraulicTension Stringing Equipment
- 4. No engine
- 5. Bull-wheel diameter: 1100mm
- 6. Hydraulic Tensioner
- 7. Max tension: 1x7.5kN
- 8. Max conductor diameter: 24mm
- 9. Max Optical fiber cable diameter: 21mm
- 10. Groove number: 4
- 11.Boyu Brand
Description
Applied for tension stringing of the transmission line conductors
and ground cables, and ADSS, OPGW optical cables.
Performance
- Max continuous tension: 1x7.5kN
- Max speed: 40m/min
Characteristics
- Bull-wheel diameter: 1100mm
- Max conductor diameter: 24mm
- Max Optical fiber cable diameter: 21mm
- Groove width: 45mm
- Groove number: 4
- Total weight: 850kg
- Overall dimension (length*width*height): 2400×1630×1830mm
Main configuration
- Main motor: Tianjin Parker
- Speed reducer: German Rexroth
- Hydraulic meter: German
Configuration
- Hydraulic dynamometers
- Hydraulic oil cooling system
- Mechanical meter counters
- Grounding connection point
Hydraulic Transmission
- The machine can realize step less speed.
- The machine is provided with tension presetting system.
Manufacturer Introduction
Jiangsu Province Yixing Boyu Electric Power Machinery Company is
located in west side of the beautiful and fertile Taihu Lake.
Established in 1994, Yixing Boyu Electric Power Machinery Co., Ltd.
is a manufacturer specialized in the research, development and
production of Electric Power Machinery.
We are located in beautiful and rich city: Yixing city. We are a
High-tech enterprise in Jiangsu Province, with convenient
transportation access. All of our products comply with
international quality standards and are greatly appreciated in a
variety of different markets throughout the world.
1. Main configurations of our machine are from Germany and USA
Engine: American Cummins
Main pump: German Rexroth
Main motor& speed reducer: German Rexroth
Tail bracket hoisting motor: American Eton
Hydraulic meter: German
2. Our company was founded in 1994, having 27 years rich
experience in this field. Our product sells in distant markets:
Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc.
Our product is also very popular in china.
3. We have one year quality guarantee, if internal components go
wrong within one year, we will change another for free.
4. We can supply the specific components to the buyers with cost
price after warranty period.
History
Established in 1994, Yixing city Boyu power machinery Co., LTD
In 2001 the company passed ISO9001 certification, and obtain the
AAA certificate
In 2006 attains the Wuxi city contract trustworthiness enterprise,
also achieved famous brand product in Wuxi city
In 2007 attains the high-tech enterprise of Jiangsu province, also
achieved brand-name products in Jiangsu province
In 2009 reworded significant achievement in Wuxi city
In 2010 Boyu cooperated with Germany famous Caesar Company
establishing the Boset brand
In 2010 achieved the national ministry of science and technology
innovation in science and technology project.
To November, 2013, Boyu enterprise has already sell puller and
tension equipment (excluding mobile ground grinding) nearly 5000
sets. Our products are sold well in Australia, Egypt, England,
Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Algeria,
Turkey, Peru, Colombia, Brazil, Argentina etc.
