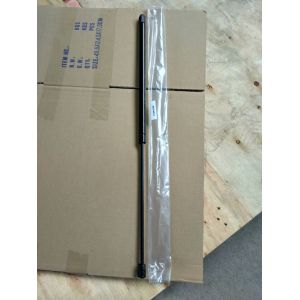

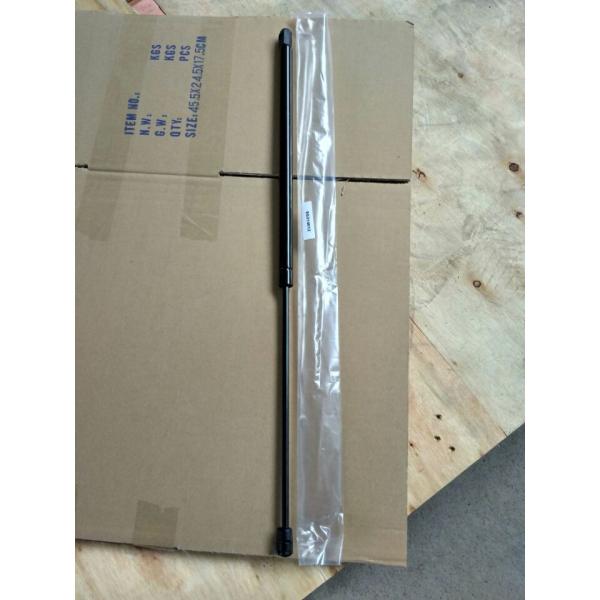

Nitrogen Gas Spring Furniture Gas Struts 1200N For Bed Shelf
Best Seller Gas Lift for Bed Shelf
Specifications
1. High quality
2. Competitive price
3. Silence when moving
4. Fast delivery
5. The gas spring is up and down smoothly
Quality
1. 180,000 times -Pass BV test Certificate
2. Pass ISO 14001:2004
Features:
1) Nitrogen filled inside
2) Material: Seamless steel
3) Color: silver, black, Red, Blue and other options
4) No noise, smooth operation
5) Easy installation
6) Competitive price, high-quality, fast delivery, good service
The size can be made according the customer requirment.
We can make lockable gas spring, compression gas spring and damper three categories, widely used in automobiles(seats, frontand
rear doors,side luggage compartment)
Hairdressers chairs, toolboxes, cabinets and fitness equipment
andother industries.
Specifications:
Whole Center Length: 480 mm
Stroke: 197 mm
Rod Diameter: 10 mm
Tube Diameter: 22 mm
Connectors: Q24Q24
Extension Force: 1200N
All the product can be customized.
Our Main specification:
Extended length(mm) | stroke length(mm) | D1*D2(MM) | Force F1(N) | Fr(max) |
100-300 | 30-100 | 4*12 | 20-200 | 30 |
301-600 | 101-200 | 6*15 | 50-200 | 50 |
601-900 | 201-300 | 8*18 | 100-800 | 60 |
901-1200 | 301-400 | 10*22 | 150-1150 | 80 |
1201-1600 | 401-500 | 12*22 | 150-1200 | 80 |
500-1200 | 200-500 | 12*26 | 200-1500 | 80 |
500-1300 | 200-600 | 14*28 | 200-2000 | 100 |
Company Introduction
ow we have clients from Europe ,North America ,South America
,Middle East Asia etc.
Our pursuit is Good Quality,Good Service,Long Term Cooperation.
Welcome your inquiry anytime.
By virtue of our experience gathered over many years, GuangZhou
CSZY Hardware Co.,Ltd
(CSZY)Spring can meet your individual requirements, such as gas
spring for Furniture, medical, Automobile, Machinery etc .
The gas spring (often also called gas struts, gas damper or gas
pressure damper) is superior to other solutions in many points and
offers many advantages.
These products are selfcontained systems, filled with pressurized
nitrogen and available to manufacture with body diameters from 12mm to 42mm and forces from 30N to 2800N. The filling tolerance is between 15N and +30 N.
The gas spring consistently works in a temperature range from -35C to +80C.
Hydraulic oil is used for the end damping, it provides a gentle
damping when gas spring working.
The piston orifice controls the extension and compression speeds.
We provide 2 years with 50,000 cycle Guaranty .
High quality, professional service , experienced design .
That's all we can provide .
Choose us now, let's build a high-efficient dental chair . More
products detailed , please feel free to contact us .
Pictures:
