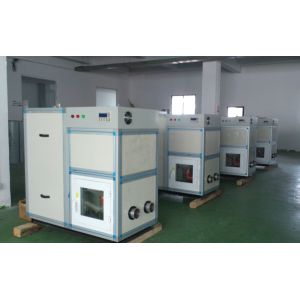

    Compact Industrial Desiccant Dehumidifier Equipment With 800m³/H Air Flow

    Ask Lasest Price
    Brand Name : FOUDANCE
    Certification : CE
    Model Number : ZCS-800
    Delivery Time : 45days
    Payment Terms : T/T, LC
    Supply Ability : 10000set/Year
    • Product Details
    • Company Profile

    Compact Industrial Desiccant Dehumidifier Equipment With 800m³/H Air Flow


    Compact Industrial Desiccant Dehumidifier Equipment With 800m³/h Air Flow


    Quick Detail:


    Style: rotor adsorption

    Desiccant Rotor: Sweden Proflute

    Desiccant Material: silica gel wheel

    Rated Air Flow: 800m³ /h

    Rated Dehumidification Capacity: 5.8kg/h

    Dehumidifying Quality: High

    Installed Power: 8.24kw

    Power Supply: 380V/3P/50Hz or customized

    Certification: ISO9001:2008

    Features: automatic, energy-saving

    Usage: air humidity control


    General Description:


    ZCS-800 Industrial Desiccant Dehumidifier removes moisture from air by using a desiccant-a material which easily attracts and holds water vapor. Desiccant dehumidifiers are especially well-suited to removing moisture from air at low temperature and low humidity.


    In Fuda units, the desiccant is impregnated into a corrugated ceramic composite material which is formed into a wheel. Air passes easily through the flutes, contacting the desiccant. The wheel rotates slowly (6 to 10 rph) between two air streams. The incoming process air stream - the larger one - gives off its moisture to the desiccant. The process air is dry as it leaves the wheel. The humidity – laden wheel rotates slowly into a second, smaller air stream which has been heated.


    This smaller exhaust air stream – called the reactivation air – warms the desiccant. The warmed desiccant gives off its moisture, which is then carried away by the reactivation air. The newly dried desiccant material is rotated back into the process air, where it absorbs moisture once again.


    Leading by high-tech, Hangzhou Fuda Dehumidification Equipment Co., Ltd., with over 30 years experience on dehumidifier manufacture, provides air dehumidifying equipment with excellent performance for all kinds of industries.


    Applications:

    • War Industry, Scientific Research, Electric Power Transportation
    • Lithium Battery Industry, Biotechnology Pharmaceutical Industry
    • Chemical, Daily Chemical Industry, Food Beverage Industry
    • Safety Glazing Material Industry, Tyre and Rubber Industry
    • Medical Instrument, Vegetables Frozen, Precise Instrument
    • Wood Goods, Shipbuilding Painting Industry, Kinds of Storage

    Competitive Advantage:

    • Good dehumidifying capacity
    • Compact structure,
    • Stability and reliability,
    • Easy operation and maintenance

    Specifications:


    Main Parameters


    Model

    ZCS-800

    Process Airflow

    800 m3/h

    Regeneration Airflow

    270 m3/h

    Rated Dehumidification Capacity

    5.8 kg/h

    Regeneration Power

    7.2 kw

    Power of Process Fan

    0.75 kw

    Power of Regeneration Fan

    0.25 kw

    Power of Driving Motor

    0.04 kw

    Installed Power

    8.24 kw

    Dimension

    600×600×1500 mm

    Weight

    180 kgs


    User Friendly Automatic Interface Control System:



    Main Components:



    We can make suitbale dehumidifying solution for you according to your requirements. If you are interest on our product, contact us now.
