    Comparison Polarizing Light Microscope Transmitted Light Microscopes CE A15.1019

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Certification : CE|Rohs
    Model Number : A15.1019
    Price : Negotiation
    Delivery Time : 5~20 Days
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    • Product Details
    • Company Profile

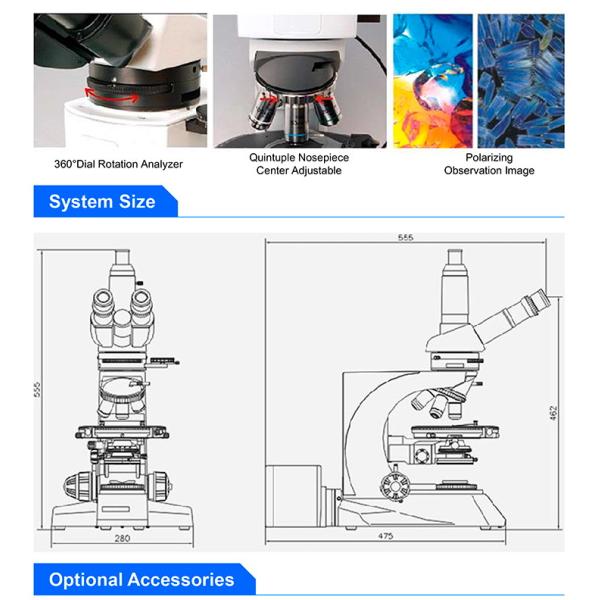

    Comparison Polarizing Light Microscope Transmitted Light Microscopes CE A15.1019

    • Quintuple Nosepiece Center Adjustable
    • LWD Strain-free Infinity Plan Objectives 5x10x40x100x
    • Round Stage Dia.170mm Center Adjustable
    • Analyizer Unit With Bertrand Lens, λ Slip, 1/4λ Slip, Quartz Wedge
    • Transmit & Reflect Halogen 24V100W Brightness Adjustable





    A15.1019 Reflect, Reflect & Transmit Polarizing Microscope Optional Accessories
    StageAttachable Stage, Moving Range 30*40mmA54.1008
    FilterFor
    Transmit Light:
    Netural Filter ND25, Dia.45mmA5F.1011-25
    Netural Filter ND6, Dia.45mmA5F.1011-6
    For
    Reflect Light:
    Blue Filter, Dia.25mmA56.1008-B
    Netural Filter ND25, Dia.25mmA5F.1011-25A
    Netural Filter ND6, Dia.25mmA5F.1011-6A
    AdapterC-Mount 1.0xA55.1018-10
    C-Mount 0.5xA55.1018-05

    ItemsA15.1019 Reflect, Reflect & Transmit Polarizing MicroscopeAB
    Optical SystemInfinity Optical System
    Head & Adapter
    Seidentopf Trinocular Head, 30° Inclined, Interpupillary 48~75mm, Diopter Adjustable
    A55.1018-E Photo Eyepiece Adapter
    EyepiecePlan Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm
    Plan Eyepiece With Scale of Crosshair
    Plan Eyepiece With Cross
    Plan Eyepiece With Gridding
    NosepieceBackward Quintuple Nosepiece
    ObjectiveStrainfree LWD Infinity Plan Achromatic Objective5x/0.12//- W.D.15.5mm
    10x/0.25//- W.D.10mm
    20x/0.4//0 W.D.4.3mm
    50x/0.75//0 W.D.0.32mm
    100x/0.8//0 W.D.2mm
    Strainfree Infinity Plan Achromatic Objective40x/0.65//0.17 W.D.0.54mm-o
    100x/1.25//0.17 W.D.0.13mm-o
    NosepieceBackward Quintuple Nosepiece, Center Adjustable
    Analyzer360° Dial Rotation Analyzer, Minimum Scale Reading 0.1° (Vernial Scale)
    --Switch Between Orthoscopic And Conoscopic Observation
    --Bertrand Lens Postion Adjustable
    --Optical Compensator: λ Slip (First Class Red), 1/4λ Slip, Quartz Wedge
    Working StagePolarizing Rotatable Stage, Dia.170mm, Center Adjustable
    360° Scale, Minimum Division 1°
    Minimum Reading 6' By Means of Vernial Scale
    45° Click Stop Knob
    CondenserStrainfree Swing Condenser N.A.0.95/0.25-o
    FocusingCoaxial Coarse & Fine Adjustment, Focusing Range 32mm, Fine Division 0.001mm, Coarse Stroke 37.7mm Per Rotation, Fine Stroke 0.1mm Per Rotation
    PolarizerFor Reflect: Fixed Polarizer
    For Transmit: 360° Rotatable Polarizer, 0° Position Adjustable-o
    IlluminationReflect Light Halogen Lamp 24V100W, Brightness Adjustable
    Transmit Light Halogen Lamp 24V100W,Brightness Adjustable
    Blue Filter, Dia.45mm
    -o
