    LCD Touch Screen Salt Spray Test Chamber , 108L 270L Salt Spray Corrosion Test Chamber

    Ask Lasest Price
    Brand Name : HAIDA
    Certification : ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
    Model Number : HD-E808-120A
    Price : Negotiable
    Delivery Time : 20 days after order confirmed
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
    Supply Ability : 300 Sets per Month Haida
    • Product Details
    • Company Profile

    LCD Touch Screen Salt Spray Test Chamber , 108L 270L Salt Spray Corrosion Test Chamber


    LCD Touch Screen Salt Spray Test Chamber , 108L 270L Salt Spray Corrosion Test Chamber


    Generl Specifications:

    Packaging Dimensions: (WxDxH) 1560*930*1270mm
    Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
    Gross Weight: 150kg


    Optional Accessories:

    PLC Touch Screen Control system
    Spray Nozzle

    Product introduction:
    Salt spray corrosion testing equipment adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, antirust oil and so on, after these anti-corrosive treatment to test the corrosion resistance of their products.


    Specifications

    Salt spray corrosion testing equipment
    1. Durable hard PVC construction
    2. Anti-corrosion, easy clean


    Design standard:

    CNS:3627,3385,4159,7669,8886;JIS:D0201,H8502,H8610,K5400,Z2371;
    ISO: 3768,3769,3770;
    ASTM: B117,B268.

    Model

    HD-E808-60A

    HD-E808-90A

    HD-E808-120A

    Inner box size:
    (L×W×H) cm

    60×40×45

    90×60×50

    120×100×50

    Outside box size:
    (L×W×H)cm

    107×60×118

    141×88×128

    190×130×140

    Equipment material:

    Both internal and external material is using imported P.V.C rigid plastic board; the case cover is using transparent rigid plastic board P.V.C.

    Temperature range:

    35℃~55℃

    Temperature fluctuations:

    ≤±0.5℃

    Temperature uniformity:

    ≤±2℃

    Temperature precision:

    ±1℃

    Test chamber temperature

    NSS ACSS 35±1℃ CASS:50±1℃

    Saturated air barrel temperature:

    NSS ACSS 47±1℃ CASS 63±1℃

    Brine temperature:

    35℃±1℃

    Spray quantity:

    1.0~2.0 ml / 80cm2 / hr

    PH:

    NSS ACSS6.5~7.2 CASS 3.0~3.2

    Lab volume:

    108L

    270L

    600L

    Brine tank capacity:

    15L

    25L

    40L

    Power:

    1∮AC220V,10A

    1∮AC220V,15A

    AC 1∮,220V,30A

    Multiple safety protection devices:

    Water shortage/ over temperature / phase protection

    Standard accessories:

    Test salt, measure bucket, tool etc 1 set

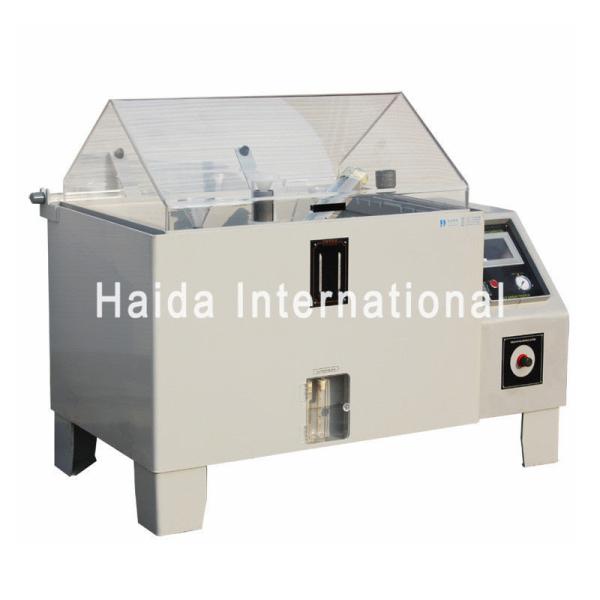

    The images
