    Mileage Life Luggage Suitcase Tester Instrument With Touch Screen

    Ask Lasest Price
    Brand Name : HAIDA
    Certification : ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
    Model Number : HD-D113-2
    Price : Negotiable
    Delivery Time : 20 days after order confirmed
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
    Supply Ability : 300 Sets per Month Haida
    • Product Details
    • Company Profile

    Mileage Life Luggage Suitcase Tester Instrument With Touch Screen


    Mileage Life Luggage Suitcase Tester Instrument With Touch Screen


    Overview


    Usage


    Luggage mileage life testing machine is use for wheel suitcase, travel bags, baby carries and walking test, etc. It mainly tests the quality of the luggage when walking around. From the test mileage, test speed, we can know the heat rupture of wheel, loss volume of the wheel, any deformation of the integral construction


    Theory


    Luggage mileage life testing machine According to the test specification production, Fix the handle of suitcase on the testing hook and tighten with string; then load a certain weight into the suitcase and start the test with setted time and speed, so as to know the performance of wheels and the full structure.


    Design Criteria


    Design criteria: QB/T 2920-2007


    Equipment Instruction


    Constitution



    Introduction:

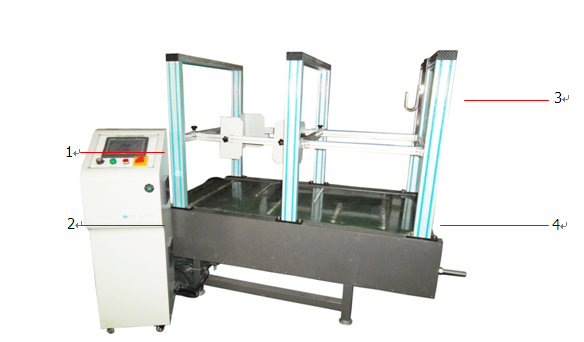

    1:Control panel 2:Control cabinet 3:Leather baggage hook 4:Test platform


    Control panel



    Panel key instruction:


    1,PowerMain switch
    2,Startenter the test
    3,Stopstop the test
    4,speed control knobcontrol the speed
    5,LCD touch screenadjust the system in the form of touching

    Specification

    Item

    Specification

    Test speed

    0~5km/hr, adjustable, LED display

    Time setting

    0~99 hours 59 minutes, power off type

    Turbulence plate

    5mm/8pcs, unsymmetrized

    Belt size

    490×80cm

    Control method

    PLC control and touch screen

    power

    1∮,AC220V/50HZ

    Weight

    approx. 360kg
