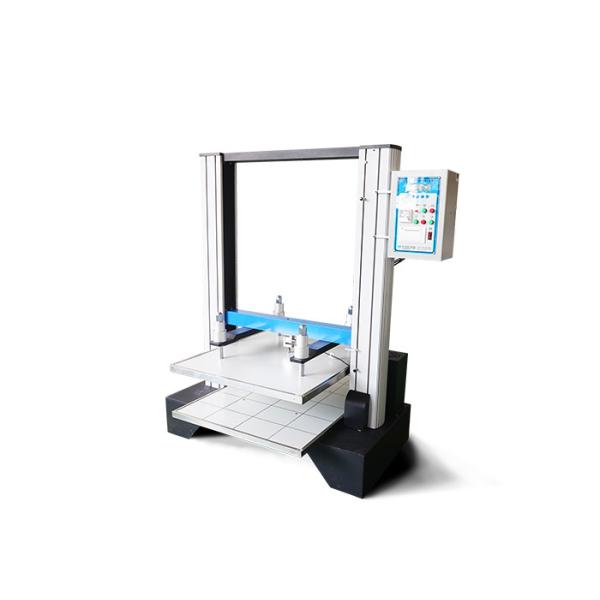

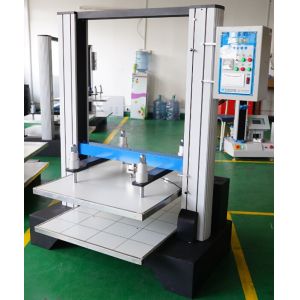

Microcomputer Box Compression Tester With Computer Servo Control
Specifications
Paper Compression Strenth Testing Machines
1. High quality
2. 2 years warranty
3. Up to TAPPI-T804,
4. Reasonable price
1. About the machine:
Paper Compression Strenth Testing Machine is used for measuring the
pressure strength of cartons, containers, etc. for inspecting the
pressure-resistance and strike-endurance of packing materials
during transportation or carry. It's equipped with 4 precise Load
Cells for detection. The testing results are displayed by computer.
2. Design criteria: TAPPI-T804,JIS-20212,GB4857.3.4, ASTM-D642, QB/T1048, BS EN ISO
12048, GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3,GB/T4857.4
3. Specifications:
Carton Compression Testing Instrument
| Model | HD-A501-600 |
| Unit (switchable) | Kg, Lb, N |
| Capacity (optional) | 1T |
| Load Resolution | 1/100,000 |
| Load Accuracy | ≤0.5% |
| Test Space (L×W×H) | 600×800×800mm |
| Speed of Compression | 10 ± 3 mm/min |
| Report Items | Serial number, Peak value, Average value, Designated holding pressure value; all memorable |
| Structure | AC Frequency Conversion Motor ( Taiwan); Imported screw rod ;4 sensors; LED display |
| Dimension (L×W×H) | 2370×1500×2100mm (can be custom made) |
| Power | 1ø, 220v/ 50Hz |
| Weight | Approx. 850kg |
| Safety Devices | Overload protection, overvoltage protection & limited position protection device |
| Standard | TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642 |
4.Features
1. Paper Compression Strenth Testing Machines is using a
single-screen operation; do not need to switch the screen;
2. With three languages in Simplified Chinese, Traditional Chinese
and English, the software interface can be switched easily;
3. Adopting windows platform, and all the parameter settings can be
processed in the dialog box, and it operates easily;
4. The pattern of Test reports can be self-designated; test data
can be displayed directly in the main screen;
5. Choosing translational, comparative mode at the same time to
make a number of curve data comparison;
6. With a variety of measurement units, Measure In Imperial &
Metric are switchable;
7. With self-return & auto-correction function;
8. With automatic magnification function, in order to achieve the
most appropriate size of the graphics;
9. With the user-defined Test methods; with experimental data
analysis function;
10. It can do test of compression, bending, pressure holding &
fatigue.
11. With high precision and accuracy and reasonable price, it can
test the crush instantaneously and stop automatically.
The certification
ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SMC,
CMC, CPA, CE,CMA,IMC

|   |
