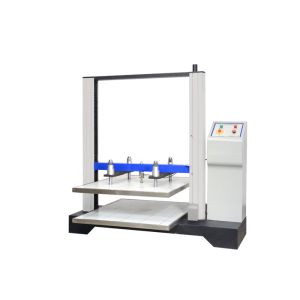

    Microcomputer Container Carton Compression Tester With 1/100000 Resolution

    Ask Lasest Price
    Brand Name : HAIDA
    Certification : ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
    Model Number : HD-A501-1200
    Price : Negotiable
    Delivery Time : 20 days after order confirmed
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
    Supply Ability : 300 Sets per Month Haida
    • Product Details
    • Company Profile

    Microcomputer Container Carton Compression Tester With 1/100000 Resolution

    Microcomputer Container Carton Compression Tester With 1/100000 Resolution


    About the machine:

    Carton compression tester is used for measuring the pressure strength of cartons, containers, etc. for inspecting the pressure-resistance and strike-endurance of packing materials during transportation or being carried, and it can be used to do the stacking test. The result of the test can be used as the important reference of the height of the pilling up of the finished product or the important basis of the packing design.


    Application industry:
    Home appliances, computers, mobile phones, electronic products, washing machines, shoes, food, medicine, furniture and other industries need to carton packaging, such as corrugated box packaging, honeycomb boxes and so on. At the same time can also be used in plastic barrels (edible oil, mineral water), paper barrels, cartons, paper cans, container barrels (IBC barrels)

    Main technical parameters:

    ItemDescription
    Max. Force2000 kg (20KN)
    Load cell1 load cell
    Control systemMicrocomputer control, button type
    MotorAC motor, guild rod
    Force readingkgf, Ibf, N etc
    Load cell Resolution1/100,000
    Load Precisionwithin ±0.5%
    Parallelism of PlatensParallel within ±5mm
    Effective test area1000×1200×1000mm
    Test speed10 ±3mm/min
    Report outputMini-printer, thermal printing
    Data displayLoad, displacement, speed
    Safety features

    E-Stop

    Over-load protection

    Upper and lower limit switches
