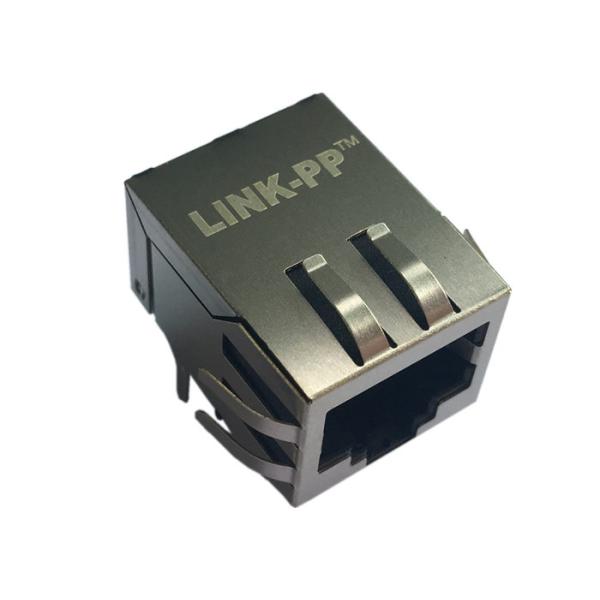

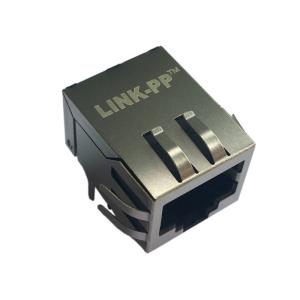

1x Magnetic RJ45 Jack PTC0001-01 | LPJF0017CNL LAN 10/ 100BASE

    Buy cheap 1x Magnetic RJ45 Jack PTC0001-01 | LPJF0017CNL LAN 10/ 100BASE from wholesalers

    Buy cheap 1x Magnetic RJ45 Jack PTC0001-01 | LPJF0017CNL LAN 10/ 100BASE from wholesalers
    • Buy cheap 1x Magnetic RJ45 Jack PTC0001-01 | LPJF0017CNL LAN 10/ 100BASE from wholesalers
    • Buy cheap 1x Magnetic RJ45 Jack PTC0001-01 | LPJF0017CNL LAN 10/ 100BASE from wholesalers
    • Buy cheap 1x Magnetic RJ45 Jack PTC0001-01 | LPJF0017CNL LAN 10/ 100BASE from wholesalers

    1x Magnetic RJ45 Jack PTC0001-01 | LPJF0017CNL LAN 10/ 100BASE

    Ask Lasest Price
    Brand Name : LINK-PP
    Certification : UL,ROHS,Reach,ISO
    Model Number : PTC0001-01
    Price : Supportive
    Delivery Time : Stock
    Payment Terms : TT,NET30/60/90 Days
    Supply Ability : 4600K.PCS/Month
    • Product Details
    • Company Profile

    1x Magnetic RJ45 Jack PTC0001-01 | LPJF0017CNL LAN 10/ 100BASE

    1x Magnetic RJ45 Jack PTC0001-01 | LPJF0017CNL LAN 10/ 100BASE

    Feature - LAN 10/ 100BASE T Low Profile RJ45 Jack With Magnetic module
    ♦ Designed for network interface card application.
    ♦ Designed to meet IEEE802.3u requirement.
    ♦ Available in all turn ratios used by LAN IC manufactures.
    ♦ Primary center taps available for additional EMI reduction.
    ♦ Simplest magnetic component to place and route on PCB.

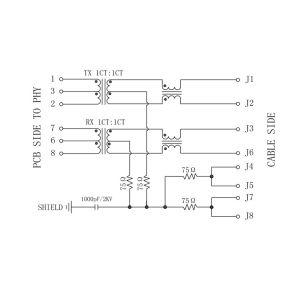

    ♦ Contains termination resistors , magnetic and connector.
    ♦ Conserves PCB space.
    ♦ PTC0002-01
    ♦ PTC0003-01
    ♦ PTC0004-01
    ♦ PTC0006-01
    ♦ PTC0007-01
    ♦ PTC0008-01
    ♦Shield ……………… 0.25mm Thickness C5191 with Nickel Plated
    ♦Housing……………Standard Material PBT , Glass Filled Polyester UL94V-0
    Standard Color Black
    ♦Contact Pin………..Plastic : NyLon-46 Glass Filled , UL94V-0 , Standard Color Black
    Pin : Phosphor Bronze Wire t0.35*w0.45
    Plating : Phosphor Bronze Gold Plating Over Nickel
    Applications:
    Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
    Competitive Advantage:
    2600 staff,
    100% test
    Flexible delivery time
    Product Tags:

    rj45 with magnetics



    rj45 magnetic jack
