PCB JACK Specification:

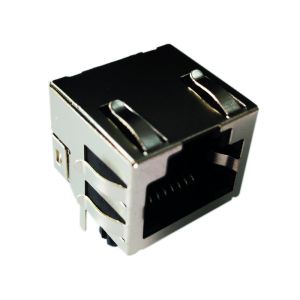

RJ45 Connector without Magnetics - LINK-PP LPJE101CNL
1. Insulation Resistance: 500MΩMIN @ 500 VDC
2. Withstanding Voltage: AC1000V 50Hz or 60Hz 1min.
3. Durability: 600 Mating Circles MIN.
4. Gold Plating:(Gold Flash;1.5;3;6;15;30;50)u" inch
5. (1) Storage temperature: -40℃ to +85℃
(2) Operation temperature: -40℃ to +85℃
(3)Wave solder temperature: 230℃ to 250℃,5～10 Sec.
LPJE101CNL Technical Parameters :
| Items | Shielded 1x1 Port 8P8C RJ45 Connector without Magnetics |
| LINK-PP Part Number | LPJE101CNL |
| Wurth Elektronik Part Number | 615008140621 |
| Part Status | Active |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Mounting Type | Through Hole |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Non-PoE |
| Number of Ports | Single Port RJ45 Connector |
| Latch | Up |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | With |
| LED Option | Without LEDs |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Connector Height | 13.10mm |
| Connector Length | 15.75mm |
| Connector Width | 16.25mm |
| Operation Temperature | -40℃ up to +85℃ |
| Bst Circuit | Yes |
| AutomDX | YES |
| Diodes | No |
| Unit Weight | 0.137921 oz |
