    Female V.35 Crimp Housing Connector with Metal Shell And Screws Lock

    Ask Lasest Price
    Brand Name : FUYCONN
    Certification : SGS-certified, ISO 9001:2008, ISO 14001:2004
    Model Number : FUYV.35005
    Price : Negotiable
    Delivery Time : 7-10 days
    Payment Terms : T/T or Paypal
    Supply Ability : 1 million/ month
    • Product Details
    • Company Profile

    Female V.35 Crimp Housing Connector with Metal Shell And Screws Lock

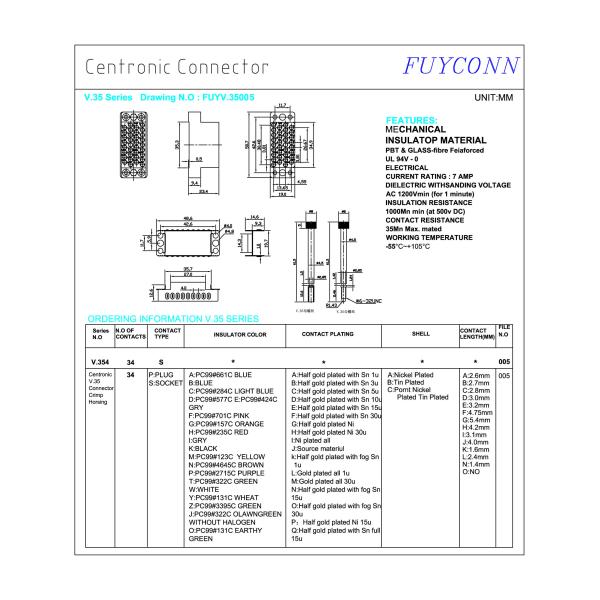

    Catalog: V.35 CONNECTOR.pdf


    Female V.35 Crimp Housing Connector with Metal Shell And Screws Lock


    A,V.35 series connectors have been designed for use in industrial and commercial telecommunication systems


    B, V.35 connector can provide a simple and inexpensive solution that allows for superior speed and noise immunity by using differential signalling on the data and clock lines.


    C, V.35 connector is in use on DSU, CSU, router, and frame relay systems throughout the world, with achieved speeds of up to 2 mbps.


    D, It can be loaded in any contact pattern from 1 to 34 contacts per connector and can be custom loaded in any configuration.



    Detail Description

    Product Category: V.35 connector
    Type: Crimp Housing
    Number of Terminal: 1 to 34 pin
    Gender: Female
    Insulator Material: PBT + Glass Fiber
    Insulator Color: Black
    Contact Coating: Glod Plated 1U", 3U",5U", 10U", 15U", 30U"
    Shell: Metal Shell
    Mounting Option: Screws Lock
    Application: Etherlink, Router, Adapter


    1)Product Type Features

    Connector Classification :V.35 (For CISCO ROUTER)Connector
    Product Name :V.35 PCB Right Angel Connector Type
    Connector Model :FUYV.35003
    No. of pin:1 - 34 pin
    Contact Gender :Receptcale
    Type :Crimping Type

    2)Terminal and Shell

    Insulator Material :PBT & GLASS-fibre Feiaforced
    Contact Coating :1U", 3U",5U", 10U", 15U", 30U"
    Terminal Material :Phosphor Bronze
    Shell :Metal

    3)Electrical

    Current Rating :7AMP
    Dielectric With standing :AC 1200Vmin(for 1 minute)
    Insulation Resistance :1000Mn min.(at 500v DC)
    Contact Resistance :35Mn max.mated
    Working Temperature :-55 °C to +105 °C

    4) Packing

    Connector Body: Vacuum Tray
    Terminal: 3000pcs/ reel

    5)Application

    1, CISCO Router
    2, Industrial telecommunicaton systems
    3, Commercial Telecommunication
    4, DSU, CSU
    5, Frame relay systems
