    Electromagnetic Remote Control X Ray Pipeline Crawler Weld Testing Pipeline Crawler X-Ray Machine

    Ask Lasest Price
    Model Number : HXPC-100B
    Delivery Time : 1-4days
    Payment Terms : T/T, Paypal, Western Union
    Brand Name : HUATEC
    Certification : ISO, CE, GOST
    Supply Ability : 500pcs per month
    • Product Details
    • Company Profile

    Electromagnetic Remote Control X Ray Pipeline Crawler Weld Testing Pipeline Crawler X-Ray Machine

    Electromagnetic Remote Control X Ray Pipeline Crawler Weld Testing Pipeline Crawler X-Ray Machine

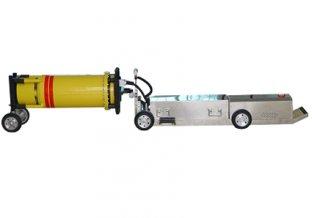

    HUATEC X RAY PIPELINE CRAWLER HXPC-100

    The X-ray pipeline crawlers include the special part that can detect the welding line of long pipeline. The X-ray pipeline crawlers have the advantages of high radiographic quality, high imaging sensitivity, low failure rate and high work efficiency. The X-ray pipeline crawlers have differential driving and vibration absorbers. The chassis of the X-ray pipeline crawlers can be moved in the pipeline steadily without off center running and overturning. The X-ray pipeline crawlers can be moved in the pipeline with great efficiency because it is controlled by PLC with protecting it from blocking and under voltage. The X-ray pipeline crawler is easy to be separated into several parts and then to be put together, so it is easy to carry. You can change the exposure parameter and make the X-ray pipeline crawler move, stop and have an exposure with the exterior controlling source. The X-ray pipeline crawlers are easy to operate.


    Specification of X Ray Pipeline Crawler


    Model


    Specification

    HXPC-100A

    HXPC-100B

    HXPC-100C

    Pipe diameter detecting range

    Φ800—Φ1500mm

    Φ500—Φ1000mm

    Φ273—Φ700mm

    Total weight

    140KG

    125KG

    100KG

    Crawler length

    2200mm

    2000mm

    2000mm

    Creeping speed

    15M/min

    15M/min

    15M/min

    Creeping distance

    2KM

    2KM

    2KM

    Locating error

    ±5mm

    ±5mm

    ±5mm

    Max.output voltage

    300Kv

    250Kv

    200Kv

    Max.outout current

    3mA

    3mA

    3mA

    Climbing ability

    40°

    40°

    25°

    Radiation angle

    360°*35°

    360°*35°

    360°*35°

    Output power

    1.5KW

    1.25KW

    1KW

    Batteryenergy

    22Ah/120V

    17Ah/120V

    12Ah/120V

    Motor power

    300W

    300W

    200W

    Exposure time

    1s~1h continues adjustable

    1s~1hcontinues adjustable

    1s~1hcontinues adjustable

    Exposure voltage

    5 selection

    5 selection

    5 selection

    Operation temperature

    -30°~ 70°

    -30°~ 70°

    -30°~ 70°


    The crawler include below parts as standard accessories:


    Main vehicle

    Lead acid pile: 110V(22Ah)

    X-ray machine: 250KV/5mA

    Remote controller (Electro magnetic induction type, no source)
